G 4315140 - Murray 43" Lawn Tractor (1997) Front Chassis & Hood Assembly Parts Diagram

43" Lawn Tractor

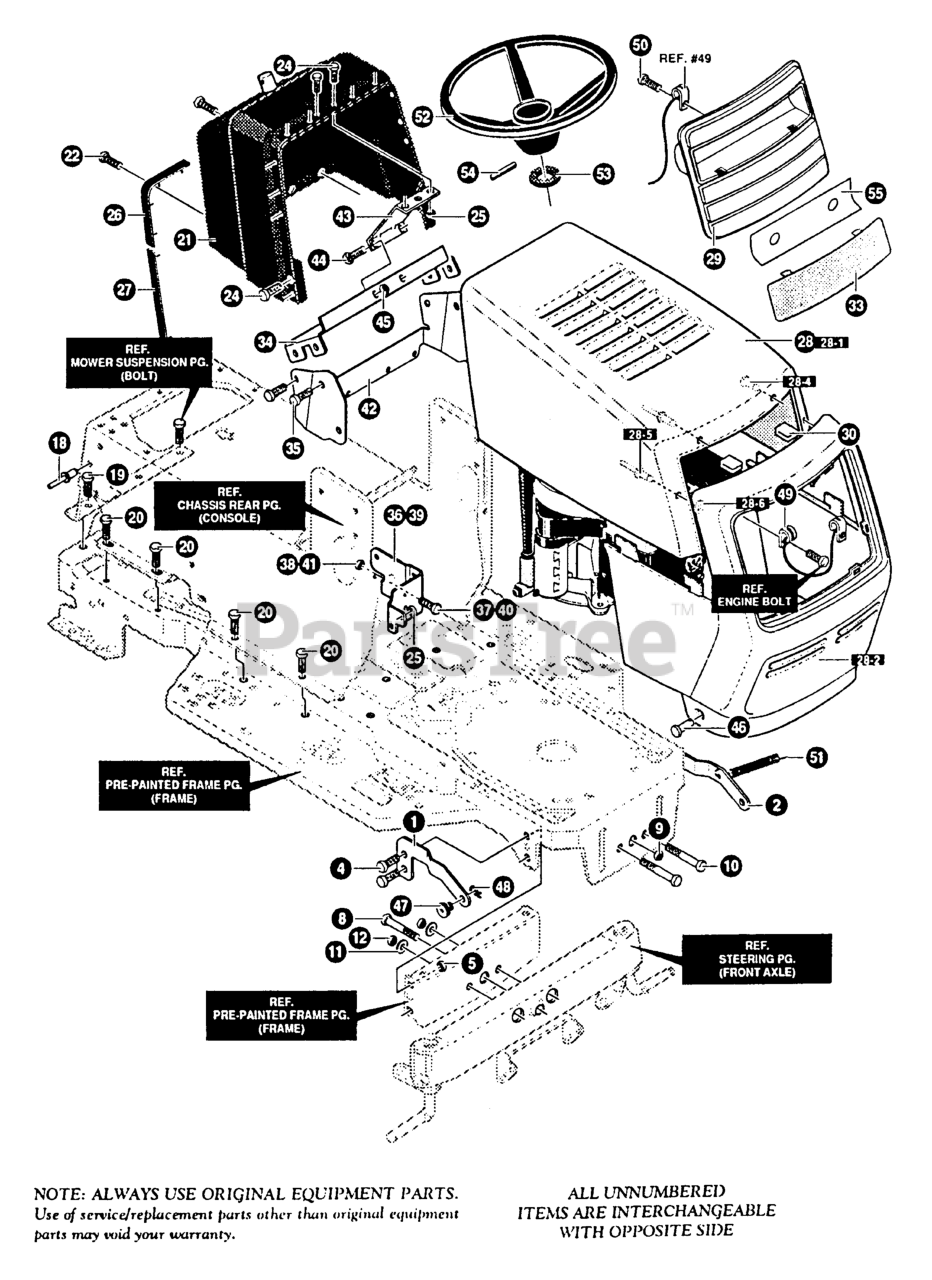

Front Chassis & Hood Assembly Parts Diagram

  • Title

1

Murray 326203-853

BRACKET, HOOD

$35.99

$

Usually ships in 2-12 days

0

2

Murray 326204-853

BRACKET, HOOD

$8.99

$

Usually ships in 2-12 days

0

4

Murray 56030

SCREW, 5/16-18 x 0.75

$

$

Currently unavailable

5

Murray 55273MA

NUT, 5/16-18

$3.99

$

Usually ships in 2-12 days

0

8

Murray 308207

BOLT, .625 X 2.18

$3.99

$

Usually ships in 2-12 days

0

9

Murray 309008

NUT, 1/2-13

$1.49

$

Usually ships in 2-12 days

0

10

Murray 180138MA

SCREW, 3/8-16 x 3.00

$3.99

$

Usually ships in 2-12 days

0

11

Murray 2483

WASHER, .39ID X 1.25D X .07

$

$

Currently unavailable

12

Murray 1499MA

NUT, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

18

Murray 46763

RIVET, POP
(Superseded to 5046763)

$116.99

$

Usually ships in 2-12 days

0

19

Murray 35497

SCREW

$

$

Currently unavailable

20

Murray 995346

SCREW, 1/4-20 X .50

$1.49

$

Usually ships in 2-12 days

0

21

Murray 334797

DASH

$36.99

$

Usually ships in 2-12 days

0

22

Murray 318304

SCREW, 1/4-14 X .75

$

$

Currently unavailable

24

Murray 155941

SCREW, 10-24 X .63

$

$

Currently unavailable

25

Murray 308459MA

NUT, #10-24

$3.49

$

Usually ships in 2-12 days

0

26

Murray 328141

BUMPER, HOOD/DASH

$1.49

$

Usually ships in 2-12 days

0

27

Murray 328142

BUMPER, HOOD/DASH

$1.99

$

Usually ships in 2-12 days

0

28

Murray 336508

HOOD ASSEMBLY

$

$

Not available

28-1

Murray 337110

KIT, HOOD

$

$

Not available

28-2

Murray 334109

HOOD KIT FOR K-MART

$

$

Currently unavailable

28-4

Murray 329238

RIVET, POP

$1.99

$

Usually ships in 2-12 days

0

28-5

Murray 333225

RIVET, POP

$1.99

$

Usually ships in 2-12 days

0

28-6

Murray 1501

WASHER, FLAT .203 X .56 X .040

$1.99

$

Usually ships in 2-12 days

0

29

Murray 332616

INSERT, GRILLE

$25.99

$

Usually ships in 2-12 days

0

30

Murray 306857MA

CLIP, TINNERMAN

$3.99

$

Usually ships in 2-12 days

0

33

Murray 325194

LENS

$

$

Currently unavailable

34

Murray 324909-853

SUPPORT, STEERING PTO

$7.99

$

Usually ships in 2-12 days

0

35

Murray 40886MA

SCREW, 1/4-20X.38

$3.49

$

Usually ships in 2-12 days

0

36

Murray 326320-853

BRACKET, DASH/TANK, RH

$5.99

$

Usually ships in 2-12 days

0

37

Murray 180020

SCREW, 1/4-20 X .75

$

$

Not available

38

Murray 1502

NUT, 1/4-20

$

$

Not available

39

Murray 326321-853

BRACKET, DASH/TANK, LH

$

$

Currently unavailable

40

Murray 180020

SCREW, 1/4-20 X .75

$

$

Not available

41

Murray 1502

NUT, 1/4-20

$

$

Not available

42

Murray 326640-853

SUPPORT, LOWER DASH

$

$

Currently unavailable

43

Murray 327039-853

DASH, SUPPORT BRACKET

$

$

Currently unavailable

44

Murray 180020

SCREW, 1/4-20 X .75

$

$

Not available

45

Murray 1502

NUT, 1/4-20

$

$

Not available

46

Murray 323044

PIN, CLEVIS

$

$

Not available

47

Murray 326522MA

BEARING HOOD

$4.49

$

Usually ships in 2-12 days

0

48

Murray 8260

PIN, HAIR

$

$

Currently unavailable

49

Murray 311094

LANYARD, HOOD 11.75

$9.49

$

Usually ships in 2-12 days

0

50

Murray 49050

SCREW, 1/4-10 X .75

$1.99

$

Usually ships in 2-12 days

0

51

Murray 304784

SPRING, HOOD LATCH

$2.99

$

Usually ships in 2-12 days

0

52

Murray 330848MA

STEERING WHEEL

$84.99

$

Usually ships in 2-12 days

0

53

Murray 317509

SPACER, SLEEVE

$1.99

$

Usually ships in 2-12 days

0

54

Murray 456378MA

PIN, SPRING

$3.99

$

In Stock, only 1 left!

0

55

Murray 333275

FOIL, LENS REFLECTOR

$

$

Currently unavailable

--

Murray 339629

OWNER'S MANUAL

$

$

Currently unavailable
