G 4315140 - Murray 43" Lawn Tractor (1997) Frame Assembly Parts Diagram

43" Lawn Tractor

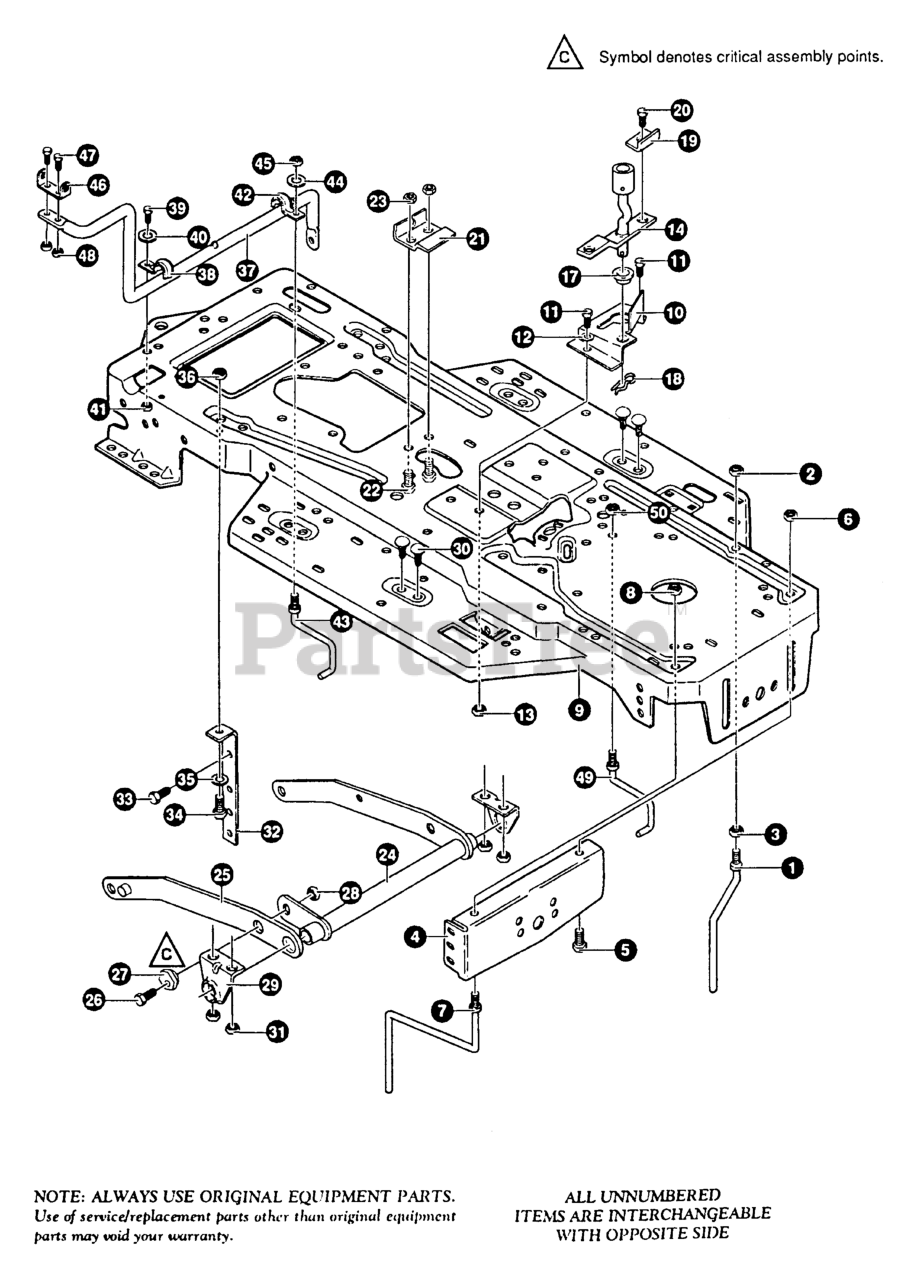

Frame Assembly Parts Diagram

  • Title
1

Murray 327376

GUIDE, BELT SHORT

$5.49

$

Usually ships in 2-12 days

0

2

Murray 124824

NUT, 5/16-18

$

$

Currently unavailable

3

Murray 271190

NUT, 3/8-16

$1.49

$

Usually ships in 2-12 days

0

4

Murray 313541

BRACKET, FRONT AXLE

$

$

Currently unavailable

5

Murray 56030

SCREW, 5/16-18 x 0.75

$

$

Currently unavailable

6

Murray 55273MA

NUT, 5/16-18

$3.99

$

Usually ships in 2-12 days

0

7

Murray 300440MA

GUIDE, BELT, RIDER

$22.99

$

Usually ships in 2-12 days

0

8

Murray 1498

NUT, 5/16-18

$

$

Not available

9

Murray 335697-853

FRAME, MAIN

$133.99

$

Usually ships in 2-12 days

0

10

Murray 320075

BRACKET, CLUTCH ENGAGE LEVER

$

$

Currently unavailable

11

Murray 180079

SCREW, 5/16-18 x 1.00

$

$

Currently unavailable

12

Murray 120393

WASHER, FLAT .344 X .69 X .065

$

$

Not available

13

Murray 1498

NUT, 5/16-18

$

$

Not available

14

Murray 338048

ASSEMBLY, CLUTCH LEVER LOWER

$

$

Currently unavailable

17

Murray 50148

BEARING
(Superseded to 50148GS)

$3.49

$

Usually ships in 2-12 days

0

18

Murray 8260

PIN, HAIR

$

$

Currently unavailable

19

Murray 9400

BRACKET, SWITCH ENGAGE

$3.49

$

Usually ships in 2-12 days

0

20

Murray 35498

SCREW, 5/16-18 x 0.75

$

$

Currently unavailable

21

Murray 300698

BRACKET, FRAME CABLE

$

$

Currently unavailable

22

Murray 180020

SCREW, 1/4-20 x .75

$

$

Not available

23

Murray 1502

NUT, 1/4-20

$

$

Not available

24

Murray 300158

LIFT ASSEMBLY, LH

$

$

Currently unavailable

25

Murray 300169MA

LIFT ASSEMBLY, RH

$

$

Not available

26

Murray 180079

SCREW, 5/16-18 x 1.00

$

$

Currently unavailable

27

Murray 58247MA

NUT, ADJUST

$1.99

$

Usually ships in 2-12 days

0

28

Murray 1498

NUT, 5/16-18

$

$

Not available

29

Murray 58248

BRACKET, REAR HANG SUSP
(Superseded to 1734013SM)

$110.99

$

In Stock, Qty 20+

0

30

Murray 57072

BOLT, 5/16-18 X .63

$

$

Not available

31

Murray 1498

NUT, 5/16-18

$

$

Not available

32

Murray 323739

BRACKET, STABILIZER

$3.49

$

Usually ships in 2-12 days

0

33

Murray 50947

SCREW, 3/8-16 X 1.25

$

$

Currently unavailable

34

Murray 180079

SCREW, 5/16-18 x 1.00

$

$

Currently unavailable

35

Murray 120393

WASHER, FLAT .344 X .69 X .065

$

$

Not available

36

Murray 1498

NUT, 5/16-18

$

$

Not available

37

Murray 319111

LEVER, SHIFT-LOWER

$29.99

$

Usually ships in 2-12 days

0

38

Murray 310347

CLIP-SHIFT LEVER

$

$

Currently unavailable

39

Murray 180077MA

SCREW, 5/16-18 x 0.75
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

40

Murray 996416

WASHER, FLAT .391 X 1.00 X .125

$

$

Currently unavailable

41

Murray 1498

NUT, 5/16-18

$

$

Not available

42

Murray 310347

CLIP- SHIFT LEVER

$

$

Currently unavailable

43

Murray 57259MA

GUIDE, BELT

$19.99

$

Usually ships in 2-12 days

0

44

Murray 996416

WASHER, FLAT .391 X 1.00 X. 125

$

$

Currently unavailable

45

Murray 1498

NUT, 5/16-18

$

$

Not available

46

Murray 310356

BRACKET, PIVOT SHIFT LEVER

$2.99

$

Usually ships in 2-12 days

0

47

Murray 180020

SCREW, 1/4-20 X .75

$

$

Not available

48

Murray 1502

NUT, 1/4-20

$

$

Not available

49

Murray 304016

GUIDE, BELT, RH

$5.49

$

Usually ships in 2-12 days

0

50

Murray 1498

NUT, 5/16-18

$

$

Not available
