G 4315140 - Murray 43" Lawn Tractor (1997) Engine & Control Assembly Parts Diagram

43" Lawn Tractor

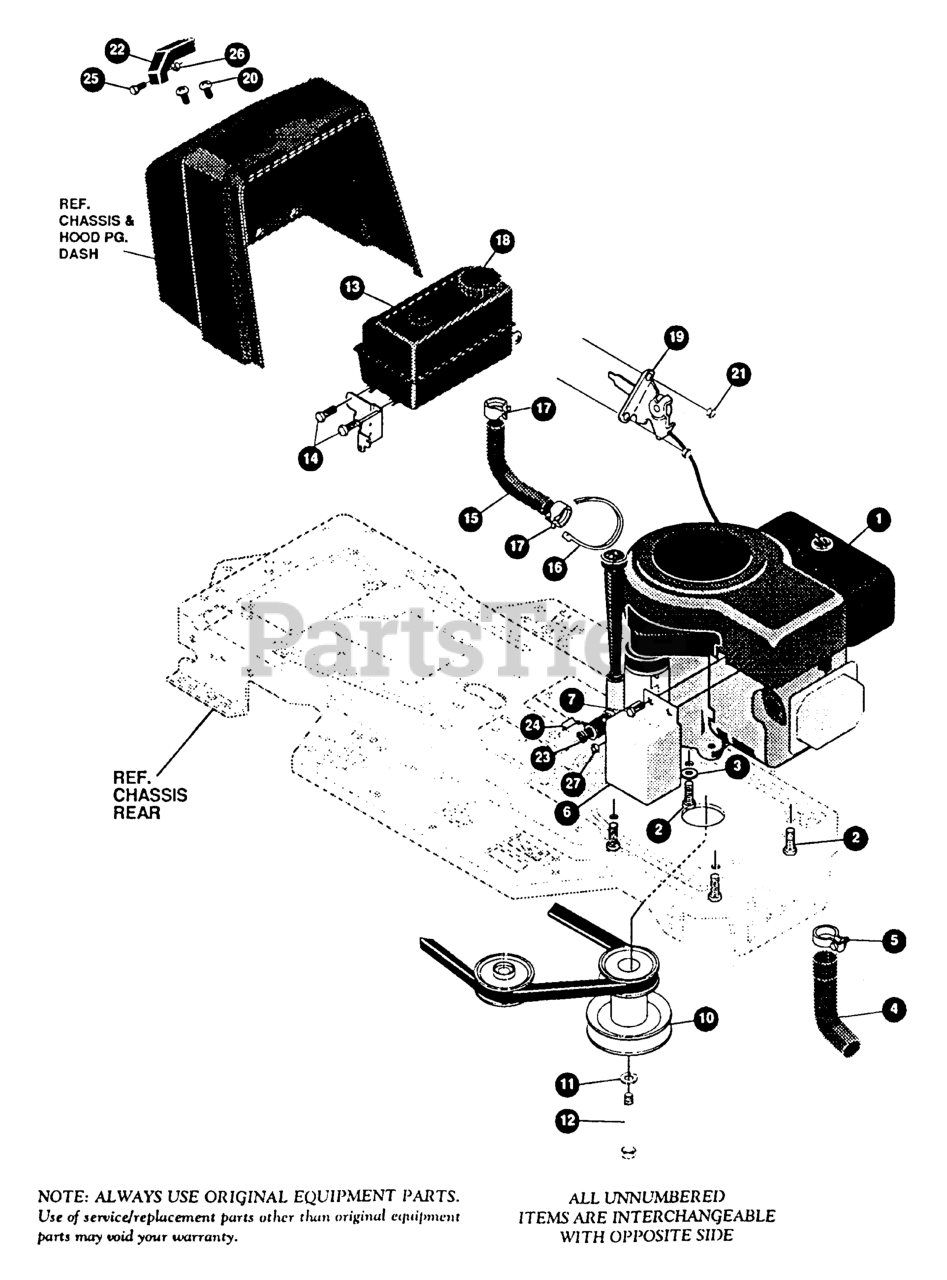

Engine & Control Assembly Parts Diagram

  • Title

1

ENGINE, 14.0HP

Note: (SEE ENGINE MANUAL)

$

$

Not available

2

Murray 50947

SCREW, 3/8-16 X 1.25

$

$

Currently unavailable

3

Murray 138489MA

WASHER, .384 X .69 X .04

$3.99

$

Usually ships in 2-12 days

0

4

Murray 327868

EXHAUST TUBE

$23.99

$

Usually ships in 2-12 days

0

5

Murray 328024

CLAMP, EXHAUST

$

$

Currently unavailable

6

Murray 327785-853

HEAT SHIELD

$22.99

$

Usually ships in 2-12 days

0

7

Murray 995346

SCREW, 1/4-20 X .50

$1.49

$

Usually ships in 2-12 days

0

10

Murray 328029

PULLEY, ENGINE

$

$

Currently unavailable

11

Murray 120383

WASHER, .459 X .78 X .11

$

$

Not available

12

Murray 428644MA

SCREW, 7/16-20 X 5.00

$

$

Not available

13

Murray 309853MA

TANK, FUEL

$32.99

$

Usually ships in 2-12 days

0

14

Murray 49050

SCREW, 1/4-10 X .75

$1.99

$

Usually ships in 2-12 days

0

15

Murray 42258

TUBING, .25 X .50 X BULK GAS LINE

$

$

Currently unavailable

16

Murray 57444

TIE, CABLE

$

$

Not available

17

Murray 47345

CLAMP, FUEL
(Superseded to 47345MA)

$9.49

$

Usually ships in 2-12 days

0

18

Murray 12501MA

CAP, FUEL

$27.99

$

Usually ships in 2-12 days

0

19

Murray 329148MA

THROTTLE, CONTROL

$34.99

$

Usually ships in 2-12 days

0

20

Murray 155941

SCREW, 10-24 X .63

$

$

Currently unavailable

21

Murray 308459MA

NUT, #10-24

$3.49

$

Usually ships in 2-12 days

0

22

Murray 300508MA

KNOB, THROTTLE CONTROL

$5.99

$

Usually ships in 2-12 days

0

23

Murray 325547MA

OIL DRAIN VALVE ASSEMBLY

$

$

Not available

24

Murray 327422

CAP, OIL

$

$

Not available

25

Murray 159585

SCREW, 1/8-32 X .38

$

$

Currently unavailable

26

Murray 120622

NUT, #8-32

$1.99

$

Usually ships in 2-12 days

0

27

Murray 124818

NUT, 1/4-20

$

$

Currently unavailable
