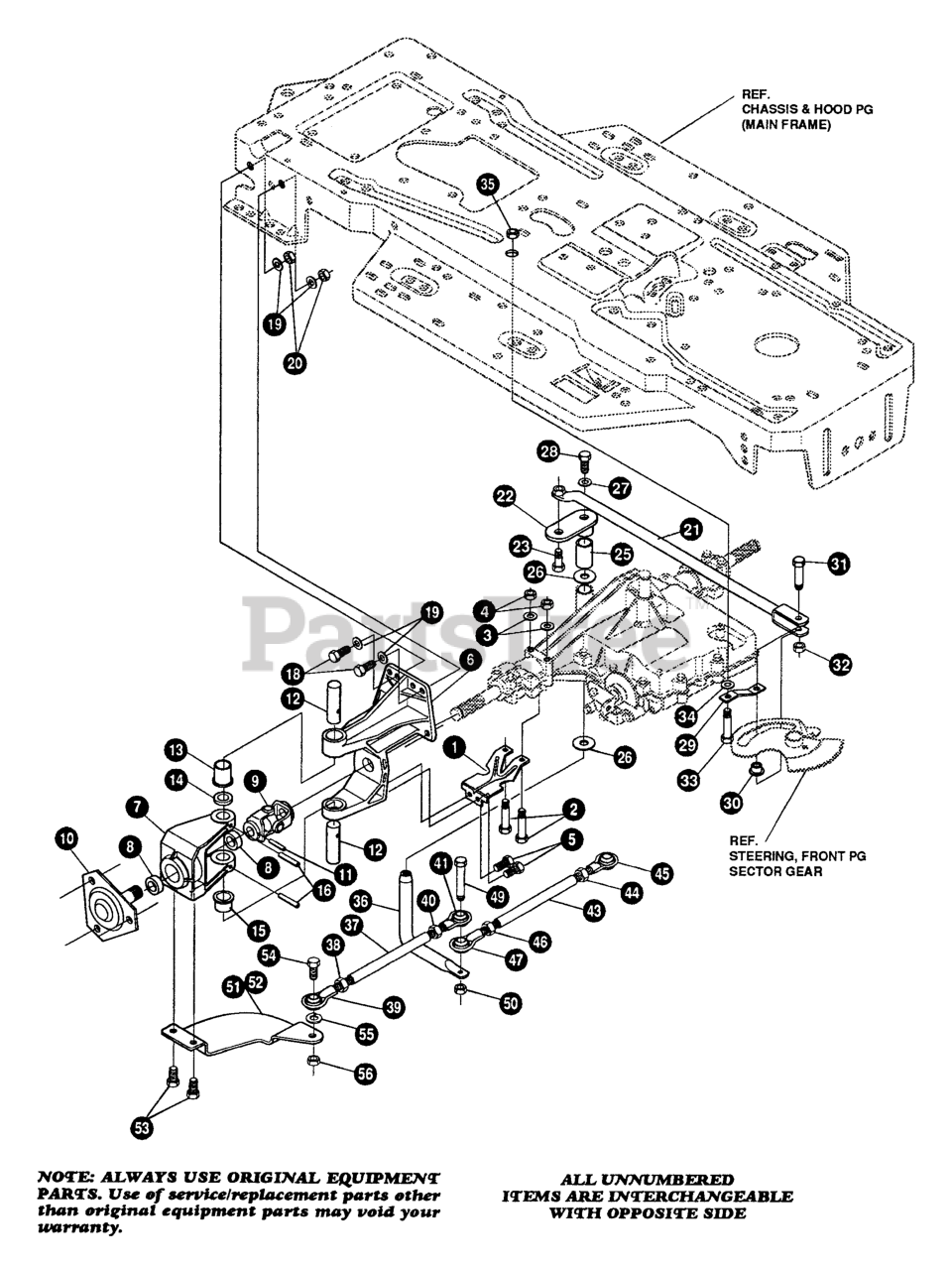

Rear Steering Assembly Parts Diagram

  • Title

1

Murray 303222-830

BRACKET, X-AXLE MTG

$

$

Currently unavailable

2

Murray 180091

SCREW, 5/16-18 x 2.50

$

$

Not available

3

Murray 120393

WASHER, FLAT .344. x .69 x .065

$

$

Not available

4

Murray 1498

NUT, 5/16-18

$

$

Not available

5

Murray 35498

SCREW, 5/16-18 x 0.75

$

$

Currently unavailable

6

Murray 314267

BRACKET, STEERING PIVOT

$35.99

$

Usually ships in 2-12 days

0

7

Murray 12465

BRACKET, STEERING PIVOT

$

$

Currently unavailable

8

Murray 12325MA

BEARING, BALL

$

$

Not available

9

Murray 320531MA

U-JOINT ASSEMBLY

$

$

Not available

10

Murray 12280-830

HUB ASSEMBLY

$

$

Currently unavailable

11

Murray 36311MA

PIN, GROOVED

$4.49

$

Usually ships in 2-12 days

0

12

Murray 12289MA

PIN, STEERING HINGE

$28.99

$

Usually ships in 2-12 days

0

13

Murray 324578

BRACKET ASSEMBLY

$66.99

$

Usually ships in 2-12 days

0

14

Murray 021682

WASHER, FLAT .765 x 1.25 x .042

$3.49

$

Usually ships in 2-12 days

0

15

Murray 324578

BRACKET ASSEMBLY

$66.99

$

Usually ships in 2-12 days

0

16

Murray 456722MA

PIN, SPRING

$3.49

$

Usually ships in 2-12 days

0

18

Murray 180079

SCREW, 5/16-18 x 1.00

$

$

Currently unavailable

19

Murray 120393

WASHER, FLAT .344 x .69 x .065

$

$

Not available

20

Murray 1498

NUT, 5/16-18

$

$

Not available

21

Murray 324514

ROD ASSEMBLY, DRAGLINK

$20.99

$

Usually ships in 2-12 days

0

22

Murray 308719MA

PIVOT, STEERING

$12.99

$

Usually ships in 2-12 days

0

23

Murray 12319

BOLT, .562 x .340

$0.99

$

Usually ships in 2-12 days

0

25

Murray 304115

SPACER, STEERING SHAFT

$3.49

$

Usually ships in 2-12 days

0

26

Murray 25177

WASHER, FLAT .765 x 1.19 x .048

$1.49

$

Usually ships in 2-12 days

0

27

Murray 45602MA

WASHER, FLAT .333 x .87 x .119

$3.99

$

Usually ships in 2-12 days

0

28

Murray 421051

SCREW, 5/16-24 x 1.00

$1.99

$

Usually ships in 2-12 days

0

29

Murray 302594

FOLLOWER, ROLLER

$

$

Currently unavailable

30

Murray 304116MA

CAM YOKE ROLLER

$6.99

$

Usually ships in 2-12 days

0

31

Murray 304122

BOLT, .625 X 1.175

$

$

Currently unavailable

32

Murray 274654MA

NUT, 1/2-20
(Superseded to 7090266YP)

$4.49

$

Usually ships in 2-12 days

0

33

Murray 324638

BOLT, .265 x .980

$1.99

$

Usually ships in 2-12 days

0

34

Murray 996307MA

WASHER, FLAT .391 x 1.00 x .209

$3.49

$

Usually ships in 2-12 days

0

35

Murray 412349MA

NUT, 3/8-24

$4.99

$

Usually ships in 2-12 days

0

36

Murray 308720MA

SHAFT, STEERING PIVOT

$182.99

$

Usually ships in 2-12 days

0

37

Murray 308447

ROD, TIE RH

$81.99

$

Usually ships in 2-12 days

0

38

Murray 308399

NUT, 3/8-24

$1.99

$

Usually ships in 2-12 days

0

39

Murray 308384MA

BALL JOINT, LH

$11.99

$

Usually ships in 2-12 days

0

40

Murray 124925MA

NUT, 3/8-24

$3.99

$

Usually ships in 2-12 days

0

41

Murray 304260

BALL JOINT, RH

$7.49

$

Usually ships in 2-12 days

0

43

Murray 308446MA

ROD, TIE, LH

$

$

Not available

44

Murray 308399

NUT, 3/8-24 LH

$1.99

$

Usually ships in 2-12 days

0

45

Murray 308384MA

BALL JOINT, LH

$11.99

$

Usually ships in 2-12 days

0

46

Murray 124925MA

NUT, 3/8-24

$3.99

$

Usually ships in 2-12 days

0

47

Murray 304260

BALL JOINT, RH

$7.49

$

Usually ships in 2-12 days

0

49

Murray 181646

SCREW, 3/8-24 x 1.75

$

$

Currently unavailable

50

Murray 412349MA

NUT, 3/8-24

$4.99

$

Usually ships in 2-12 days

0

51

Murray 304120-830

REAR WHEEL STEER, RH

$

$

Currently unavailable

52

Murray 304121-830

ARM, REAR WHEEL STEER, LH

$

$

Currently unavailable

53

Murray 39728

SCREW, 3/8-16 x .75

$1.99

$

Usually ships in 2-12 days

0

54

Murray 181639

SCREW, 3/8-24 x 1.25

$1.99

$

Usually ships in 2-12 days

0

55

Murray 120382

WASHER, .393 x .68 x .10

$

$

Currently unavailable

56

Murray 412349MA

NUT, 3/8-24

$4.99

$

Usually ships in 2-12 days

0
