G 4315010 - Murray 43" Lawn Tractor (1997) Rear Chassis Assembly Parts Diagram

43" Lawn Tractor

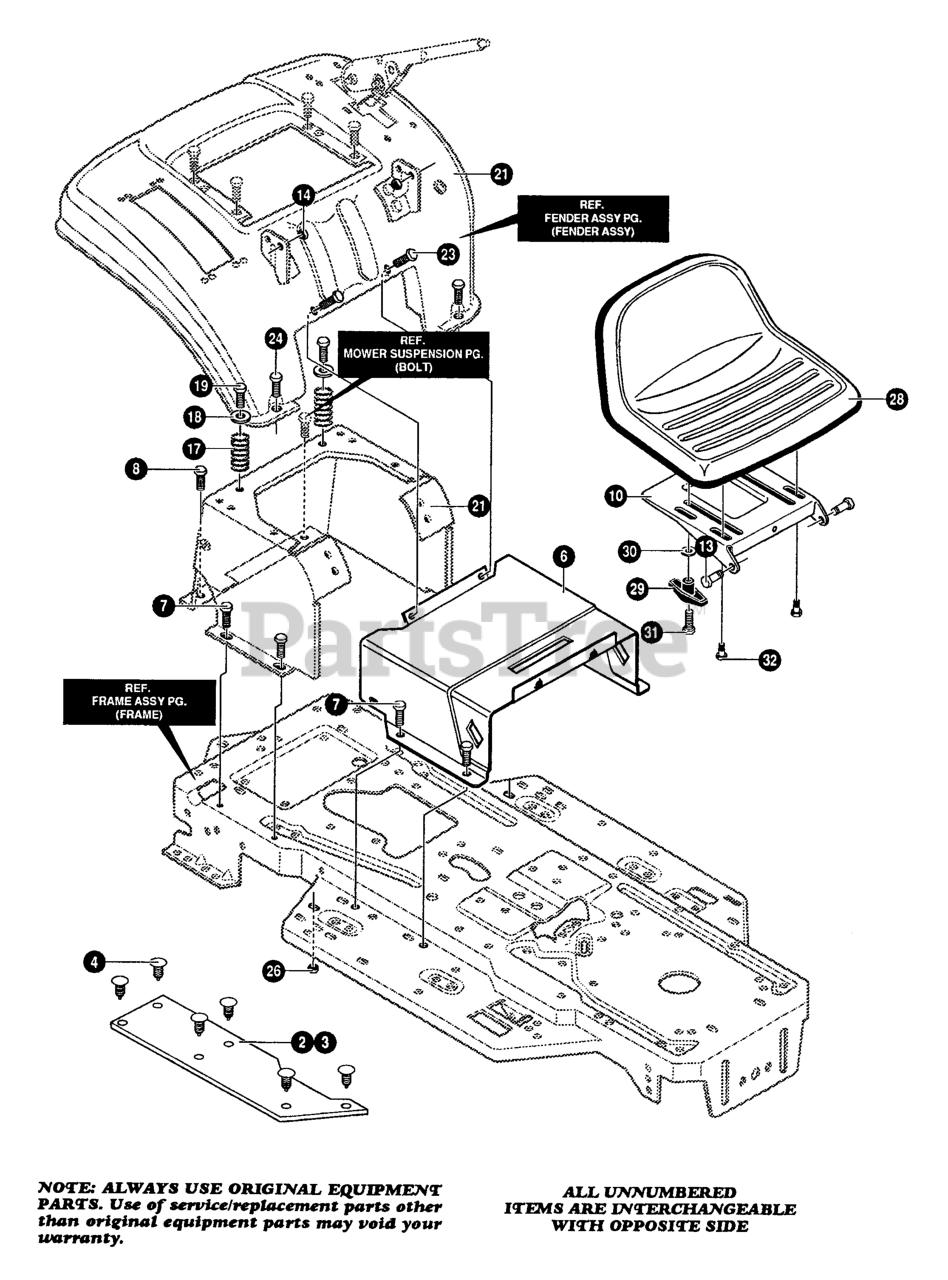

Rear Chassis Assembly Parts Diagram

  • Title
2

Murray 310005

FOOT PAD, LH

$23.99

$

Usually ships in 2-12 days

0

3

Murray 310006

FOOT PAD, RH

$

$

Currently unavailable

4

Murray 309235MA

FASTENER, RATCHET

$3.99

$

Usually ships in 2-12 days

0

6

Murray 330865-830

CONSOLE, WALK-THRU

$

$

Currently unavailable

7

Murray 995346

SCREW, 1/4-20 x .50

$1.49

$

Usually ships in 2-12 days

0

8

Murray 35497

SCREW, 5/16-18 x 0.50

$

$

Currently unavailable

10

Murray 331535-830

PLATE, SEAT

$

$

Currently unavailable

13

Murray 20507

BOLT, .437 x .156

$

$

Not available

14

Murray 1498

NUT, 5/16-18

$

$

Not available

17

Murray 337427

SPRING, SEAT

$5.49

$

Usually ships in 2-12 days

0

18

Murray 120392

WASHER, FLAT .281 x .63 x .065

$

$

Not available

19

Murray 995346

SCREW, 1/4-20 x .50

$1.49

$

Usually ships in 2-12 days

0

21

FENDER

Note: (Reference Only)

$

$

Not available

23

Murray 35497

SCREW, 5/16-18 x 0.50

$

$

Currently unavailable

24

Murray 126358

BOLT, 5/16-18 x 1.00

$

$

Not available

26

Murray 55273MA

NUT, 5/16-18

$3.99

$

Usually ships in 2-12 days

0

28

$

$

Currently unavailable

29

Murray 643958

HANDLE, WING NUT

$1.49

$

Usually ships in 2-12 days

0

30

Murray 120393

WASHER, FLAT .344 x .69 x .065

$

$

Not available

31

Murray 180079

SCREW, 5/16-18 x 1.00

$

$

Currently unavailable

32

Murray 331637

BOLT, .500 x .10

$1.99

$

Usually ships in 2-12 days

0
