G 4315010 - Murray 43" Lawn Tractor (1997) Front Chassis & Hood Assembly Parts Diagram

43" Lawn Tractor

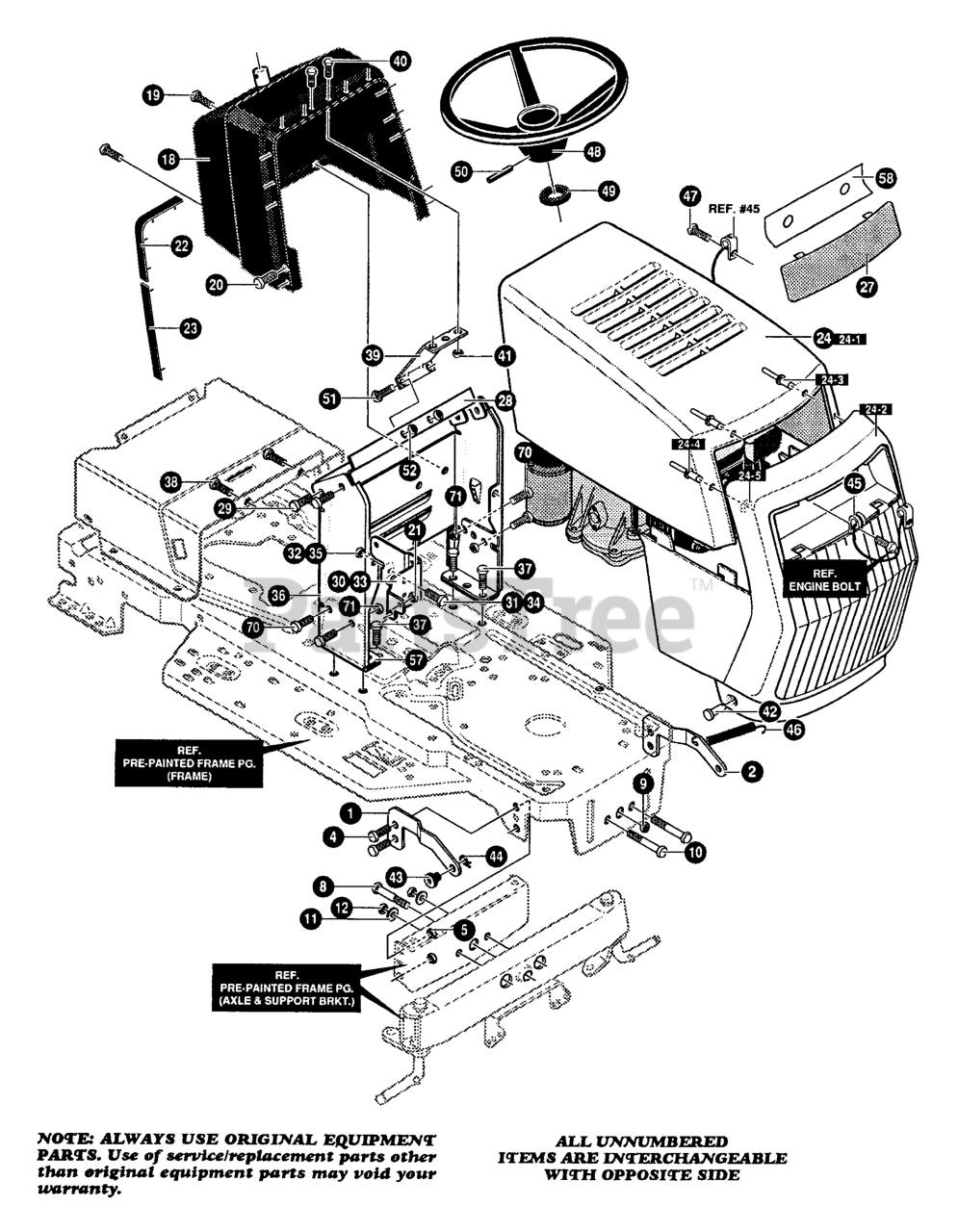

Front Chassis & Hood Assembly Parts Diagram

  • Title
1

Murray 326203-830

BRACKET, HOOD RH

$

$

Currently unavailable

2

Murray 326204-830

BRACKET, HOOD LH

$

$

Currently unavailable

4

Murray 56030

SCREW, 5/16-18 x 0.75

$

$

Currently unavailable

5

Murray 55273MA

NUT, 5/16-18

$3.99

$

Usually ships in 2-12 days

0

8

Murray 308207

BOLT, .625 X 2.18

$3.99

$

Usually ships in 2-12 days

0

9

Murray 309008

NUT, 1/2-13

$1.49

$

Usually ships in 2-12 days

0

10

Murray 180138MA

SCREW, 3/8-16 x 3.00

$3.99

$

Usually ships in 2-12 days

0

11

Murray 2483

WASHER, .39ID X 1.25D X .07

$

$

Currently unavailable

12

Murray 1499MA

NUT, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

18

$

$

Currently unavailable

19

Murray 318304

SCREW, 1/4-14 X .75

$

$

Currently unavailable

20

Murray 155941

SCREW, 10-24 X .63

$

$

Currently unavailable

21

Murray 308459MA

NUT, #10-24

$3.49

$

Usually ships in 2-12 days

0

22

Murray 328141

BUMPER, HOOD/DASH TOP & CORNER

$1.49

$

Usually ships in 2-12 days

0

23

Murray 328142

BUMPER, HOOD/DASH SIDE STRIP

$1.99

$

Usually ships in 2-12 days

0

24

Murray 336512

HOOD ASSEMBLY

$

$

Currently unavailable

24-1

Murray 334553

HOOD KIT

Note: (INCLUDES HOOD & HARDWARE)

$

$

Currently unavailable

24-2

Murray 334553

HOOD KIT

Note: (INCLUDES GRILLE & HARDWARE)

$

$

Currently unavailable

24-3

Murray 329238

RIVET, POP

$1.99

$

Usually ships in 2-12 days

0

24-4

Murray 333225

RIVET, POP

$1.99

$

Usually ships in 2-12 days

0

24-5

Murray 1501

FLATWASHER, .203 X .56 X .040

$1.99

$

Usually ships in 2-12 days

0

27

Murray 326960

LENS, GRILLE

$

$

Currently unavailable

28

Murray 324909-830

SUPPORT, STEERING/PTO

$

$

Currently unavailable

29

Murray 40886MA

SCREW, 1/4-20 X .38

$3.49

$

Usually ships in 2-12 days

0

30

Murray 326320-830

BRACKET, DASH/TANK, RH

$

$

Currently unavailable

31

Murray 180020

SCREW, 1/4-20 X .75

$

$

Not available

32

Murray 1502

NUT, 1/4-20

$

$

Not available

33

Murray 326321-830

BRACKET, DASH/TANK, LH

$

$

Currently unavailable

34

Murray 180020

SCREW, 1/4-20 X .75

$

$

Not available

35

Murray 1502

NUT, 1/4-20

$

$

Not available

36

Murray 324908-830

DASH, TOWER WALK-THRU

$

$

Currently unavailable

37

Murray 35497

SCREW, 5/16-18 x 0.50

$

$

Currently unavailable

38

Murray 40886MA

SCREW, 1/4-20 X .38

$3.49

$

Usually ships in 2-12 days

0

39

Murray 327039-830

DASH, SUPPORT BRACKET

$

$

Currently unavailable

40

Murray 155941

SCREW, 10-24 X .63

$

$

Currently unavailable

41

Murray 308459MA

NUT, #10-24

$3.49

$

Usually ships in 2-12 days

0

42

Murray 323044

PIN, CLEVIS

$

$

Not available

43

Murray 326522MA

BEARING, HOOD

$4.49

$

Usually ships in 2-12 days

0

44

Murray 8260

PIN, HAIR

$

$

Currently unavailable

45

Murray 311094

LANYARD, HOOD 11.75 LONG

$9.49

$

Usually ships in 2-12 days

0

46

Murray 304784

SPRING, HOOD LATCH

$2.99

$

Usually ships in 2-12 days

0

47

Murray 49050

SCREW, 1/4-10x.75

$1.99

$

Usually ships in 2-12 days

0

48

Murray 330847

STEERING WHEEL

$53.99

$

Usually ships in 2-12 days

0

49

Murray 317509

SPACER, SLEEVE

$1.99

$

Usually ships in 2-12 days

0

50

Murray 456378MA

PIN, SPRING

$3.99

$

In Stock, only 1 left!

0

51

Murray 180020

SCREW, 1/4-20 x .75

$

$

Not available

52

Murray 1502

NUT, 1/4-20

$

$

Not available

57

Murray 333120-830

BRACE, DASH TOWER

$

$

Currently unavailable

58

Murray 333276

FOIL, LENS REFLECTOR

$2.99

$

Usually ships in 2-12 days

0

70

Murray 180016MA

SCREW, 1/4-20 X .50

$3.99

$

In Stock, only 2 left!

0

71

Murray 46931MA

NUT, 1/4-20
(Superseded to 015X89MA)

$4.49

$

Usually ships in 2-12 days

0

--

Murray 338936

OPERATOR'S MANUAL

$

$

Currently unavailable
