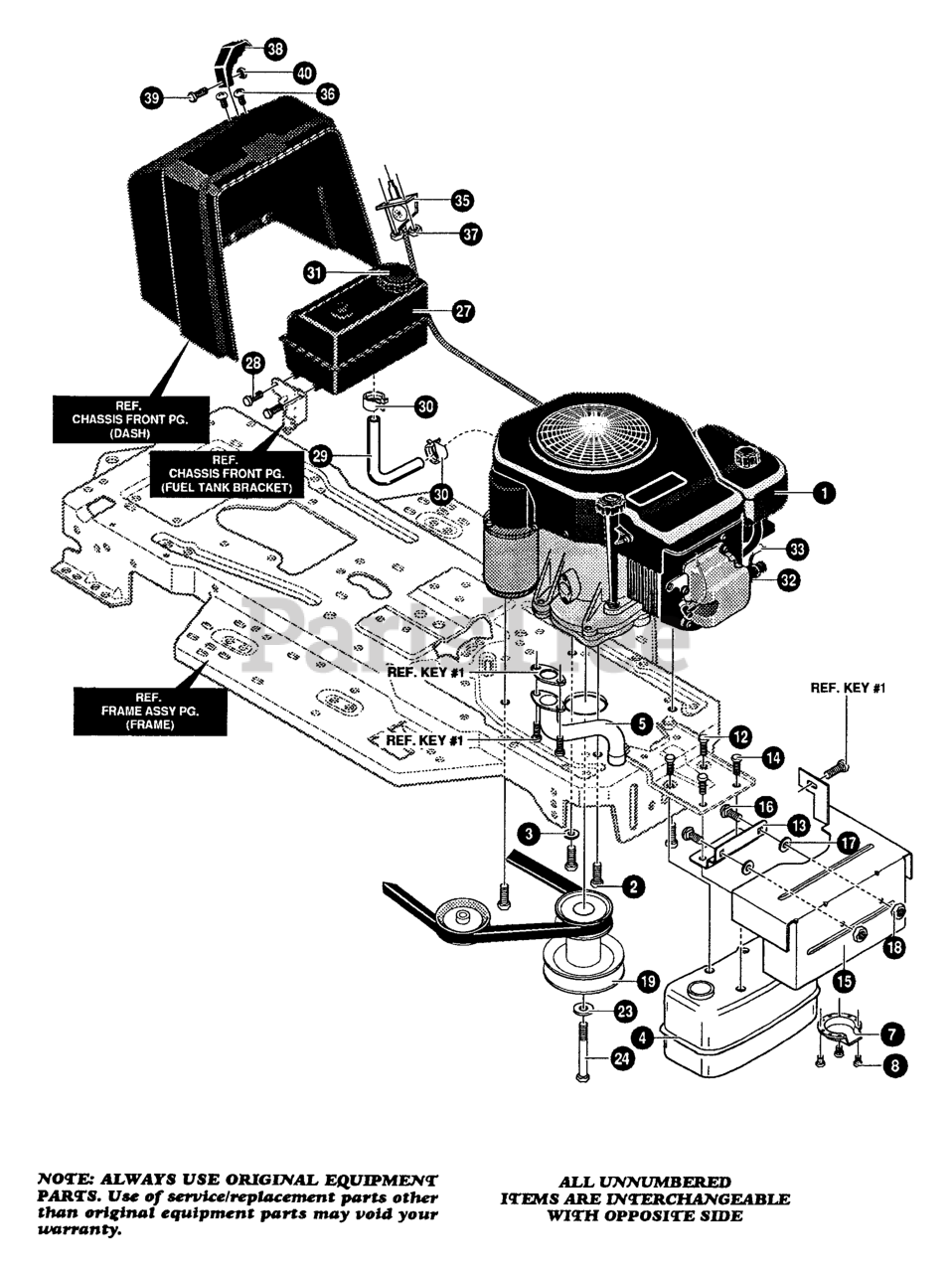

G 4315010 - Murray 43" Lawn Tractor (1997) Engine & Control Assembly Parts Diagram

43" Lawn Tractor

Engine & Control Assembly Parts Diagram

  • Title
1

ENGINE, 12-15HP KOHLER

Note: (SEE ENGINE MANUAL)

$

$

Not available

2

Murray 309294

SCREW, 1.25 x 25

$1.49

$

Usually ships in 2-12 days

0

3

Murray 138485MA

WASHER, .320 x .61 x .03

$4.99

$

Usually ships in 2-12 days

0

4

Murray 326324

MUFFLER

$

$

Currently unavailable

5

Murray 309182

TUBE, MUFFLER EXHAUST

$47.99

$

Usually ships in 2-12 days

0

7

Murray 56472MA

DEFLECTOR SIDE OUT
(Superseded to 795036)

$8.49

$

In Stock, only 1 left!

0

8

Murray 35287

SCREW, #8-32 x .38

$

$

Currently unavailable

12

Murray 300314

SCREW, 1/4-20 x .88

$1.49

$

Usually ships in 2-12 days

0

13

Murray 9796

BRACKET, TRANSAXLE

$

$

Currently unavailable

14

Murray 44811MA

SCREW, 1/4-20 x .75

$5.99

$

Usually ships in 2-12 days

0

15

Murray 333087-830

ASSEMBLY, SHIELD HEAT

$

$

Currently unavailable

16

Murray 57072

BOLT, 5/16-18 x .63

$

$

Not available

17

Murray 309436MA

PUSHNUT, BOLT RETAINER

$3.99

$

Usually ships in 2-12 days

0

18

Murray 55273MA

NUT, 5/16-18

$3.99

$

Usually ships in 2-12 days

0

19

Murray 328029

PULLEY, ENGINE

$

$

Currently unavailable

23

Murray 120383

WASHER, .459 x .78 x .12

$

$

Not available

24

Murray 428644MA

SCREW, 7/16-20 x 5.00

$

$

Not available

27

Murray 309853MA

TANK, FUEL 1.5

$32.99

$

Usually ships in 2-12 days

0

28

Murray 300303MA

SCREW, .25 x .75 x .5

$4.49

$

In Stock, only 1 left!

0

29

Murray 48049

TUBING, GAS LINE
(Superseded to 5048049)

$8.49

$

In Stock, only 1 left!

0

30

Murray 47345

CLAMP, HOSE SCREW TYPE
(Superseded to 47345MA)

$9.49

$

Usually ships in 2-12 days

0

31

Murray 12501MA

CAP, FUEL

$27.99

$

Usually ships in 2-12 days

0

32

Murray 325547MA

OIL DRAIN VALVE ASSEMBLY

$

$

Not available

33

Murray 327422

CAP, OIL DRAIN VALVE

$

$

Not available

35

Murray 332049

THROTTLE CONTROL

$11.99

$

Usually ships in 2-12 days

0

36

Murray 155941

SCREW, 10-24 X .63

$

$

Currently unavailable

37

Murray 308459MA

NUT, #10-24

$3.49

$

Usually ships in 2-12 days

0

38

Murray 304439

KNOB, THROTTLE CONTROL

$

$

Currently unavailable

39

Murray 159585

SCREW, #8-32 x .38

$

$

Currently unavailable

40

Murray 120622

NUT, #8-32

$1.99

$

Usually ships in 2-12 days

0
