G 3800 AVS - RedMax Chainsaw (SN: 001881 & Above) ENGINE Parts Diagram

Chainsaw

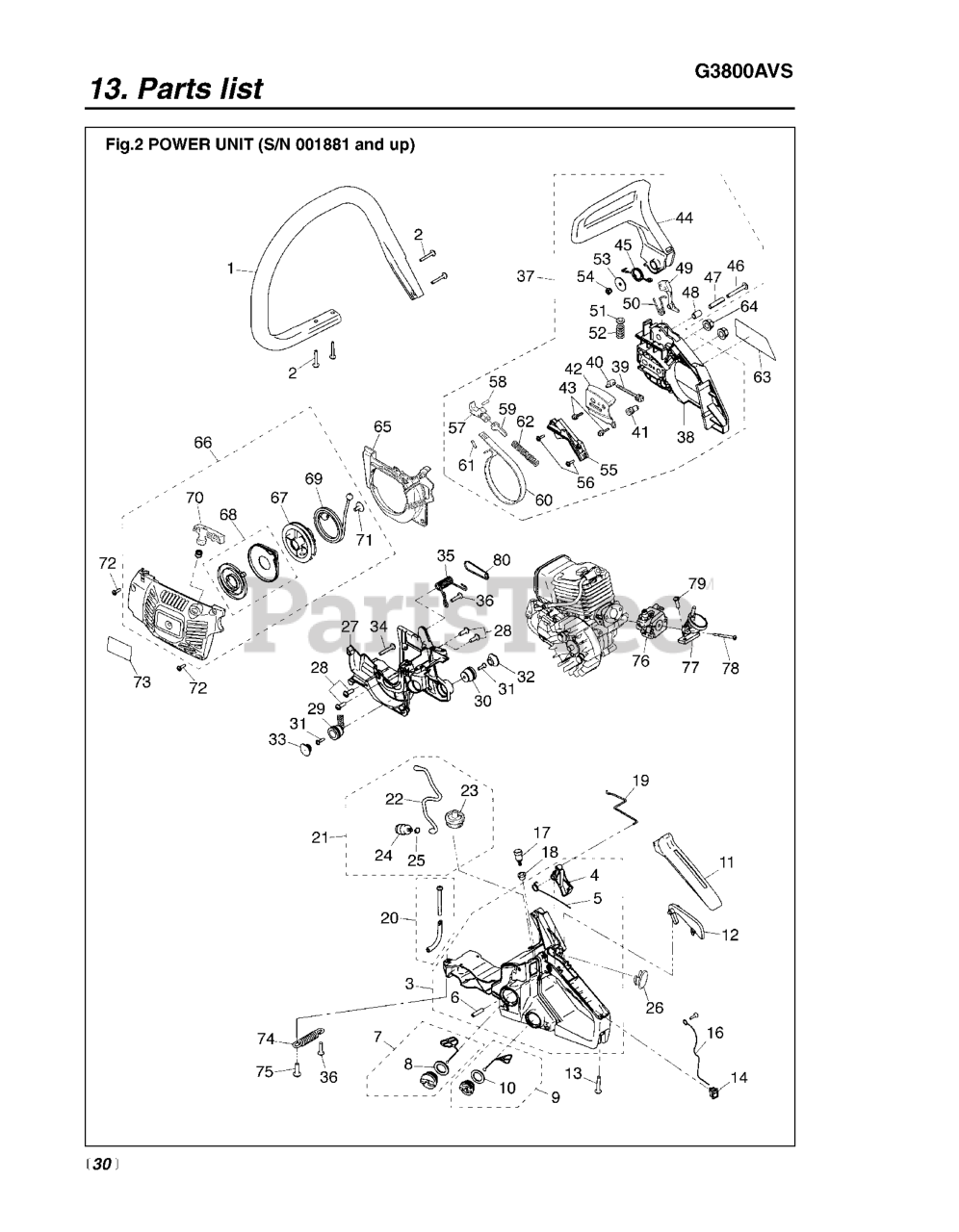

ENGINE Parts Diagram

  • Title

1

RedMax 512457401

HANDLE

$60.99

$

Usually ships in 3-10 days

0

2

RedMax 521518301

SCREW

Note: 8488257211

$3.99

$

Usually ships in 3-10 days

0

3

RedMax 570881701

HANDLE, RIGHT ASSY

Note: . 4 5 6

$78.99

$

Usually ships in 3-10 days

0

4

RedMax 513750101

LEVER

$4.99

$

Usually ships in 3-10 days

0

5

RedMax 505048001

SPRING

$4.99

$

Usually ships in 3-10 days

0

6

RedMax 505048101

SPRING PIN

$3.49

$

Usually ships in 3-10 days

0

7

RedMax 513621201

CAP
(Superseded to 579517901)

Note: . 8

$9.49

$

Usually ships in 3-10 days

0

8

RedMax 513621301

GASKET
(Superseded to 579518001)

$4.99

$

Usually ships in 3-10 days

0

9

RedMax 513926201

Note: . 10

$

$

Not available

10

RedMax 505046101

GASKET
(Superseded to 579519001)

$4.99

$

Usually ships in 3-10 days

0

11

RedMax 513750301

COVER

$

$

Not available

12

RedMax 521556501

ARM (RPLS 335633350-335633352)

$4.99

$

Usually ships in 3-10 days

0

13

RedMax 521518301

SCREW

$3.99

$

Usually ships in 3-10 days

0

14

RedMax 516970401

SWITCH
(Superseded to 586246901)

$11.99

$

Usually ships in 3-10 days

0

16

RedMax 512462001

CORD

$4.99

$

Usually ships in 3-10 days

0

17

RedMax 513751501

BREATHER
(Superseded to 574007901)

$13.99

$

Usually ships in 3-10 days

0

18

RedMax 514201401

GROMMET
(Superseded to 574012901)

$3.99

$

Usually ships in 3-10 days

0

19

RedMax 512463001

ROD.THROTTLE

$6.49

$

Usually ships in 3-10 days

0

20

RedMax 521793401

PIPE COMP***
(Superseded to 511101501)

$

$

Not available

21

RedMax 570881901

PIPE ASSY
(Superseded to 579518301)

Note: . 22 23 24 25

$

$

Not available

22

RedMax 513750601

PIPE
(Superseded to 579518401)

$4.99

$

Usually ships in 3-10 days

0

23

RedMax 513802601

GROMMET

$6.49

$

Usually ships in 3-10 days

0

24

RedMax 575960701

FILTER

$11.99

$

In Stock, only 2 left!

0

25

RedMax 506707001

CLIP
(Superseded to 516262101)

$4.99

$

In Stock, only 4 left!

0

26

RedMax 513797701

CAP

$3.99

$

Usually ships in 3-10 days

0

27

RedMax 521793201

CASE, ENGINE

$

$

Not available

28

RedMax 513615701

RP_SCREW
(Superseded to 578468301)

$3.99

$

Usually ships in 3-10 days

0

29

RedMax 512458201

DAMPER

$24.99

$

Usually ships in 3-10 days

0

30

RedMax 513560401

DAMPER

$10.99

$

In Stock, only 2 left!

0

31

RedMax 521517901

SCREW

$3.99

$

Usually ships in 3-10 days

0

32

RedMax 513826101

CAP

$4.99

$

Usually ships in 3-10 days

0

33

RedMax 513945101

CAP

$3.49

$

Usually ships in 3-10 days

0

34

RedMax 521518101

SCREW

$4.99

$

In Stock, only 4 left!

0

35

RedMax 512458101

SPRING

$6.49

$

Usually ships in 3-10 days

0

36

RedMax 521518001

SCREW (RPLS 267132210)

$4.99

$

Usually ships in 3-10 days

0

37

RedMax 516975801

Note: . 38 39 40-62

$

$

Not available

38

RedMax 513757701

COVER

$27.99

$

Usually ships in 3-10 days

0

39

RedMax 513637701

SCREW

$21.99

$

Usually ships in 3-10 days

0

40

RedMax 513701401

NUT

$9.99

$

Usually ships in 3-10 days

0

41

RedMax 513637901

GEAR

$10.99

$

Usually ships in 3-10 days

0

42

RedMax 513758101

PLATE(B)

$9.99

$

Usually ships in 3-10 days

0

43

RedMax 516827201

SCREW
(Superseded to 574005501)

$3.99

$

Usually ships in 3-10 days

0

44

RedMax 513758601

$

$

Not available

45

RedMax 513758801

RETURN SPRING
(Superseded to 574008101)

$4.99

$

Usually ships in 3-10 days

0

46

RedMax 513759001

SCREW
(Superseded to 574008201)

$3.99

$

Usually ships in 3-10 days

0

47

RedMax 513759701

SPACER, INNER
(Superseded to 574008301)

$3.99

$

Usually ships in 3-10 days

0

48

RedMax 513760301

SPACER
(Superseded to 574008401)

$2.49

$

Usually ships in 3-10 days

0

49

RedMax 521576801

WEIGHT

$6.49

$

Usually ships in 3-10 days

0

50

RedMax 516988401

SPRING
(Superseded to 574080301)

$4.99

$

Usually ships in 3-10 days

0

51

RedMax 513806101

PLATE

$3.99

$

Usually ships in 3-10 days

0

52

RedMax 510816201

SPRING (RPLS 285154270)

$

$

Not available

53

RedMax 521025401

WASHER
(Superseded to 574013001)

$3.99

$

Usually ships in 3-10 days

0

54

RedMax 514183901

NUT

$4.99

$

In Stock, only 2 left!

0

55

RedMax 513761601

COVER

$

$

Not available

56

RedMax 516827201

SCREW
(Superseded to 574005501)

$3.99

$

Usually ships in 3-10 days

0

57

RedMax 513806601

BRAKE LEVER
(Superseded to 574008701)

$14.99

$

Usually ships in 3-10 days

0

58

RedMax 513807301

ROLLER
(Superseded to 516976701)

$4.99

$

Usually ships in 3-10 days

0

59

RedMax 516825601

ARM
(Superseded to 574005401)

$4.99

$

Usually ships in 3-10 days

0

60

RedMax 513807601

BAND
(Superseded to 527748801)

$

$

Not available

61

RedMax 521075401

ROLLER
(Superseded to 574013101)

$3.99

$

Usually ships in 3-10 days

0

62

RedMax 516826601

SPRING
(Superseded to 574079301)

$4.99

$

Usually ships in 3-10 days

0

63

RedMax 512472801

$

$

Not available

64

RedMax 575960801

NUT FLANGE

$3.49

$

Usually ships in 3-10 days

0

65

RedMax 512462501

COVER

$4.99

$

Usually ships in 3-10 days

0

66

RedMax 512462101

STARTER-A

Note: . 67 68 69-71

$

$

Not available

67

RedMax 521796901

REEL

$

$

Not available

68

RedMax 513775501

SPRING

$21.99

$

In Stock, only 1 left!

0

69

RedMax 514200901

ROPE

$

$

Not available

70

RedMax 506614701

KNOB

$6.99

$

In Stock, only 2 left!

0

71

RedMax 506613001

SCREW
(Superseded to 516541801)

$3.99

$

Usually ships in 3-10 days

0

72

RedMax 521518101

SCREW

$4.99

$

In Stock, only 4 left!

0

73

RedMax 512473001

$

$

Not available

74

RedMax 512458001

SPRING(F)

$6.49

$

Usually ships in 3-10 days

0

75

RedMax 513615701

RP_SCREW
(Superseded to 578468301)

$3.99

$

Usually ships in 3-10 days

0

76

RedMax 512473301

CARBURETOR ASSY(RPL-T210881000

$

$

Not available

77

RedMax 513791901

MANIFOLD

$14.99

$

Usually ships in 3-10 days

0

78

RedMax 513855401

BOLT

$8.99

$

Usually ships in 3-10 days

0

79

RedMax 521518101

SCREW

$4.99

$

In Stock, only 4 left!

0

80

RedMax 512465801

PLATE

$3.99

$

Usually ships in 3-10 days

0
