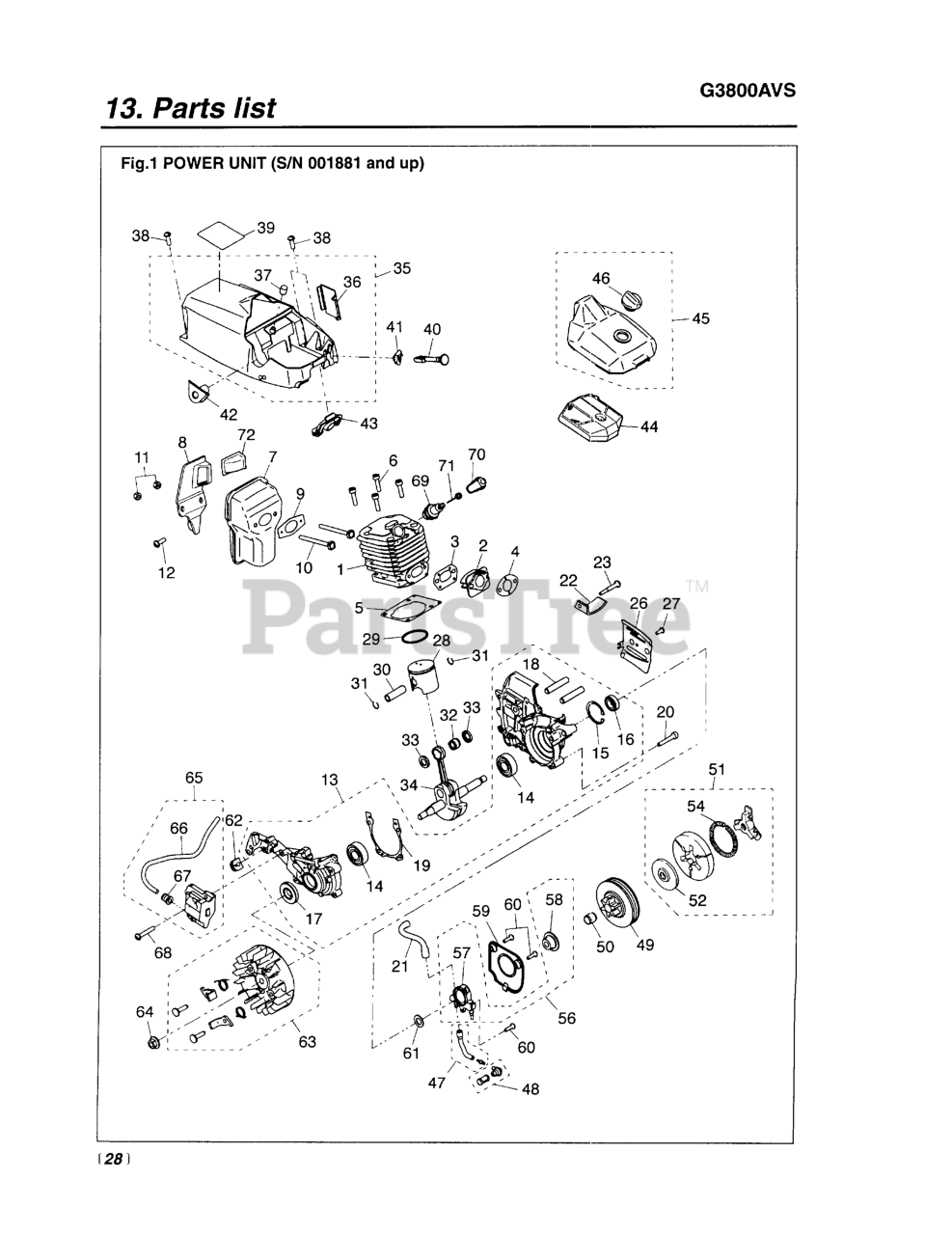

G 3800 AVS - RedMax Chainsaw (SN: 001881 & Above) (2003-01) 028 - POWER UNIT-FIG.1 Parts Diagram

Chainsaw

028 - POWER UNIT-FIG.1 Parts Diagram

  • Title
1

RedMax 289812111

CYLINDER
(Superseded to 520770001)

$31.99

$

Usually ships in 3-10 days

0

2

RedMax 286714110

INSULATOR
(Superseded to 513852901)

$

$

Not available

3

RedMax 285014123

GASKET, INLET (RPLS-14122)
(Superseded to 516960001)

$3.99

$

Usually ships in 3-10 days

0

4

RedMax 333014121

GASKET
(Superseded to 514209101)

$3.99

$

Usually ships in 3-10 days

0

5

RedMax 285014212

GASKET, CYLINDER
(Superseded to 513744001)

$3.99

$

In Stock, only 1 left!

0

6

RedMax 285014220

4820-13180
(Superseded to 504114301)

$6.49

$

In Stock, only 2 left!

0

7

RedMax T210015112

MUFFLER
(Superseded to 521791901)

$

$

Not available

8

RedMax T210015311

STAY
(Superseded to 521792301)

$4.99

$

Usually ships in 3-10 days

0

9

RedMax T210015210

GASKET, MUFFLER
(Superseded to 521792001)

$4.99

$

Usually ships in 3-10 days

0

10

RedMax T210015220

BOLT, MUFFLER
(Superseded to 521792101)

$3.99

$

In Stock, only 2 left!

0

11

RedMax 285015230

NUT, MUFFLER (RPLS 3356-15230
(Superseded to 516960901)

$6.49

$

In Stock, only 1 left!

0

12

RedMax 267014320

SCREW (REPLACES 2616-24320)
(Superseded to 578468301)

$3.99

$

Usually ships in 3-10 days

0

13

RedMax T210021000

CRANKCASE ASSEMBLY
(Superseded to 521792401)

$46.99

$

Usually ships in 3-10 days

0

14

$

$

Not available

15

RedMax 0406503212

RING, SNAP, M32 x 1.2
(Superseded to 504121001)

$3.99

$

In Stock, only 2 left!

0

16

RedMax 216921210

SEAL, OIL (RPLS 1100-21210)
(Superseded to 513488701)

$4.99

$

Usually ships in 3-10 days

0

17

RedMax 263043150

SEAL, OIL

$

$

Not available

18

RedMax 261621230

STUD (RPLS 0205-50825)
(Superseded to 516738001)

$4.99

$

Usually ships in 3-10 days

0

19

RedMax T210021310

GASKET, CASE
(Superseded to 512455701)

$

$

Not available

20

RedMax 482021310

BOLT
(Superseded to 515388101)

$4.99

$

In Stock, only 3 left!

0

21

RedMax T210021400

PIPE
(Superseded to 521792601)

$

$

Not available

22

RedMax 261625211

CATCHER, CHAIN (RPLS -25210)
(Superseded to 516738501)

$

$

Not available

23

$0.54

$

Usually ships in 3-10 days

0

26

RedMax 285025411

PLATE (A)
(Superseded to 516962901)

$

$

Not available

27

$0.41

$

Usually ships in 3-10 days

0

28

RedMax T210041110

PISTON
(Superseded to 521794501)

$28.99

$

Usually ships in 3-10 days

0

29

RedMax T210041210

RING, PISTON
(Superseded to 521794601)

$

$

Not available

30

RedMax 285041310

PIN, PISTON
(Superseded to 505297101)

$6.49

$

Usually ships in 3-10 days

0

31

RedMax 130041320

RING, SNAP
(Superseded to 516283001)

$4.99

$

In Stock, only 1 left!

0

32

RedMax T210041410

BEARING
(Superseded to 505297301)

$9.99

$

In Stock, Qty 5

0

33

RedMax 285041510

WASHER
(Superseded to 513752401)

$6.99

$

In Stock, only 2 left!

0

34

RedMax T210042000

SHAFT COMPLETE

$104.42

$

Usually ships in 3-10 days

0

35

RedMax T210031100

COVER COMPLETE

$15.66

$

Usually ships in 3-10 days

0

$1.25

$

Usually ships in 3-10 days

0

37

$0.88

$

Usually ships in 3-10 days

0

$0.41

$

Usually ships in 3-10 days

0

39

RedMax T210831611

LABEL
(Superseded to 512472501)

$2.49

$

Usually ships in 3-10 days

0

40

RedMax 285082411

ROD, CHOKE
(Superseded to 513793901)

$3.49

$

Usually ships in 3-10 days

0

41

RedMax T210082420

GROMMET, CHOKE
(Superseded to 512462801)

$3.49

$

Usually ships in 3-10 days

0

42

RedMax 286782320

GROMMET
(Superseded to 516980201)

$

$

Not available

43

RedMax T210082520

GROMMET, THROTTLE

$2.59

$

Usually ships in 3-10 days

0

44

RedMax 285083100

CLEANER, AIR COMP
(Superseded to 513794601)

$44.99

$

In Stock, only 1 left!

0

45

RedMax 285083303

COVER, CLEANER COMP
(Superseded to 516974001)

$21.99

$

In Stock, only 1 left!

0

46

RedMax 284183320

KNOB (RPLS 3356-83322)
(Superseded to 513737301)

$6.49

$

Usually ships in 3-10 days

0

47

RedMax T210023100

PIPE
(Superseded to 521558801)

$

$

Not available

48

RedMax T210023200

FILTER COMPLETE
(Superseded to 521565601)

$40.99

$

Usually ships in 3-10 days

0

49

RedMax 286051111

DRUM, CLUTCH
(Superseded to 513843301)

$66.99

$

Usually ships in 3-10 days

0

50

RedMax 331051310

BEARING
(Superseded to 514183301)

$10.99

$

In Stock, only 1 left!

0

51

RedMax T210051200

848-C40-5121
(Superseded to 521565201)

$60.99

$

Usually ships in 3-10 days

0

52

RedMax 285051211

PLATE
(Superseded to 513756201)

$8.99

$

Usually ships in 3-10 days

0

54

RedMax 287051230

SPRING
(Superseded to 574070601)

$

$

Not available

56

RedMax T210055100

848-C40-6701
(Superseded to 848CA10640)

$

$

Not available

57

RedMax T210055110

PUMP, OIL (USE 848-C40-67A1)
(Superseded to 521586101)

$

$

Not available

58

RedMax 285055121

WORM GEAR
(Superseded to 521586101)

$

$

Not available

59

RedMax T210055610

COVER, PUMP
(Superseded to 521795901)

$4.99

$

Usually ships in 3-10 days

0

60

RedMax 267055410

SCREW
(Superseded to 574005701)

$3.99

$

In Stock, only 3 left!

0

61

RedMax 285055211

WASHER
(Superseded to 516968901)

$3.49

$

Usually ships in 3-10 days

0

62

RedMax 550072130

GROMMET
(Superseded to 544260601)

$3.49

$

Usually ships in 3-10 days

0

63

RedMax T210071100

ROTOR COMPLETE
(Superseded to 521796001)

$

$

Not available

64

RedMax 165043230

182301
(Superseded to 516437401)

$3.99

$

Usually ships in 3-10 days

0

65

RedMax T210071300

COIL COMPLETE
(Superseded to 521796301)

$

$

Not available

66

RedMax T210071220

CORD
(Superseded to 521796201)

$3.99

$

Usually ships in 3-10 days

0

67

RedMax 261671320

CAP
(Superseded to 516744001)

$4.99

$

Usually ships in 3-10 days

0

68

RedMax 267055410

SCREW
(Superseded to 574005701)

$3.99

$

In Stock, only 3 left!

0

69

RedMax 163073110

3699-90032-10
(Superseded to 521230201)

$13.99

$

Usually ships in 3-10 days

0

70

RedMax 262972210

CAP
(Superseded to 516764201)

$

$

Not available

71

RedMax 140072121

SPRING PLUG (RPLS 3310-71320)
(Superseded to 544260401)

$4.99

$

Usually ships in 3-10 days

0

72

RedMax T210815210

ARRESTER, SPARK
(Superseded to 512472401)

$7.49

$

Usually ships in 3-10 days

0
