G 3554160 - Murray 40" Lawn Tractor (1997) Rear Chassis Assembly Parts Diagram

40" Lawn Tractor

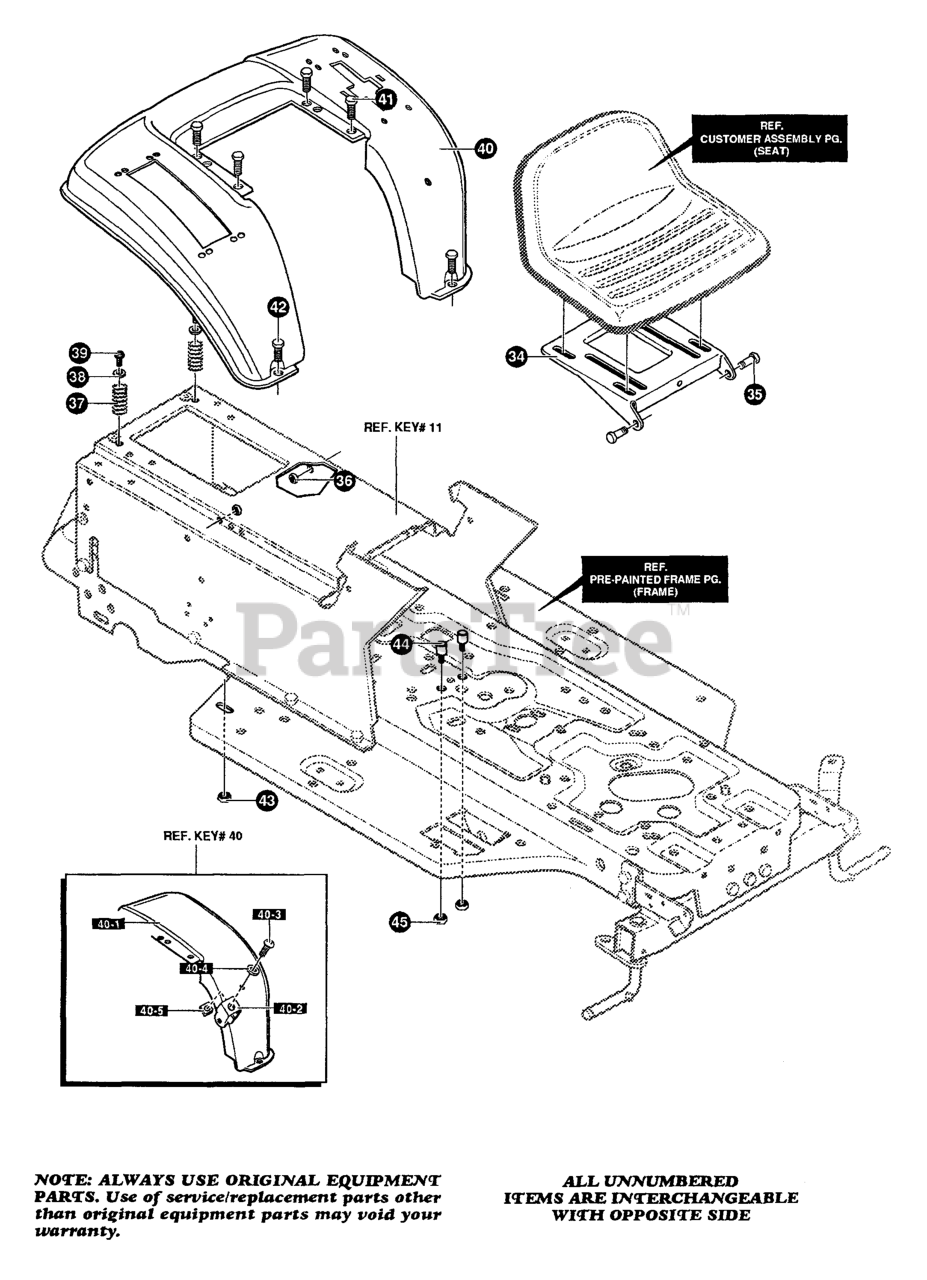

Rear Chassis Assembly Parts Diagram

  • Title

34

Murray 331535-853

PLATE, SEAT

$13.99

$

Usually ships in 2-12 days

0

35

Murray 20507

BOLT, .437 X .156

$

$

Not available

36

Murray 1498

NUT, 5/16-18

$

$

Not available

37

Murray 330463MA

SPRING, SEAT

$9.99

$

Usually ships in 2-12 days

0

38

Murray 120392

WASHER, FLAT .281 X .63 X .065

$

$

Not available

39

Murray 995346

SCREW, 1/4-20 X .50

$1.49

$

Usually ships in 2-12 days

0

40

ASSEMBLY, FENDER

Note: (Order individual parts - Assembly not available)

$

$

Not available

40-1

Murray 321156-860

FENDER

$

$

Currently unavailable

40-2

Murray 9239

CLEVIS

$

$

Currently unavailable

40-3

Murray 439455

SCREW, 5/16-18 x 0.56

$1.49

$

Usually ships in 2-12 days

0

40-4

Murray 301551

WASHER, .344ID X 1.50D X .09

$1.49

$

Usually ships in 2-12 days

0

40-5

Murray 120373

NUT, 5/16-18 SQ

$1.99

$

Usually ships in 2-12 days

0

41

Murray 995346

SCREW, 1/4-20 x .50

$1.49

$

Usually ships in 2-12 days

0

42

Murray 126358

BOLT, 5/16-18 X 1.00

$

$

Not available

43

Murray 55273MA

NUT, 5/16-18

$3.99

$

Usually ships in 2-12 days

0

44

Murray 53446

PIN, 5/16-18 HOOD LATCH

$2.49

$

Usually ships in 2-12 days

0

45

Murray 271184

NUT, 5/16-18

$1.99

$

Usually ships in 2-12 days

0
