G 3554160 - Murray 40" Lawn Tractor (1997) Engine & Control Assembly Parts Diagram

40" Lawn Tractor

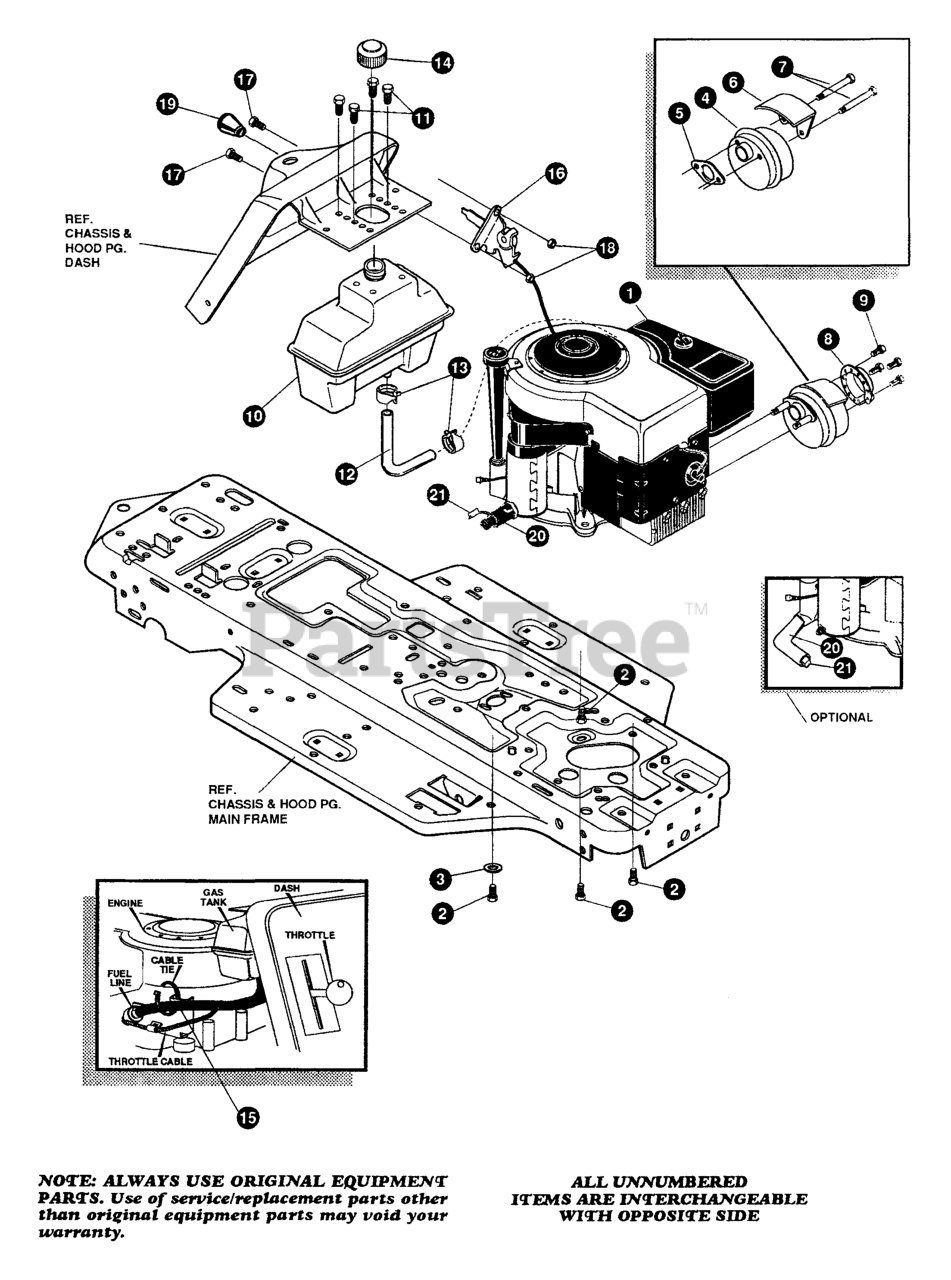

Engine & Control Assembly Parts Diagram

  • Title

1

ENGINE, 12-12.5HP

Note: (SEE ENGINE MANUAL)

$

$

Not available

2

Murray 50947

SCREW, 3/8-16 X 1.25

$

$

Currently unavailable

3

Murray 138489MA

WASHER, .384 X .69 X .04

$3.99

$

Usually ships in 2-12 days

0

4

Murray 57908

MUFFLER, ROUND

$

$

Currently unavailable

5

Murray 46708

GASKET, MUFFLER
(Superseded to 7046708YP)

$3.99

$

In Stock, only 2 left!

0

6

Murray 54767MA

SHIELD, HEAT

$9.49

$

Usually ships in 2-12 days

0

7

Murray 54980MA

SCREW, 5/16-18 x 3.50

$3.99

$

Usually ships in 2-12 days

0

8

Murray 56472MA

DEFLECTOR SIDE OUT
(Superseded to 795036)

$8.49

$

In Stock, only 1 left!

0

9

Murray 35287

SCREW, #8-32 X .38

$

$

Currently unavailable

10

Murray 314989MA

TANK, FUEL 1 GALLON

$

$

Not available

11

Murray 300303MA

SCREW, .25 X .75 X .51

$4.49

$

In Stock, only 1 left!

0

12

Murray 42258

TUBING, .25 X .50 X BULK GAS LINE

$

$

Currently unavailable

13

Murray 47345

CLAMP, FUEL LINE
(Superseded to 47345MA)

$9.49

$

Usually ships in 2-12 days

0

14

Murray 46704MA

CAP, GAS

$25.99

$

Usually ships in 2-12 days

0

15

Murray 57444

TIE, CABLE BLACK

$

$

Not available

16

Murray 320031MA

THROTTLE CONTROL

$27.99

$

Usually ships in 2-12 days

0

17

Murray 274707

SCREW, 10-24 X .50

$1.49

$

Usually ships in 2-12 days

0

18

Murray 308459MA

NUT, #10-24

$3.49

$

Usually ships in 2-12 days

0

19

Murray 50607MA

KNOB, ROUND THROTTLE

$13.99

$

Usually ships in 2-12 days

0

20

NOT REQUIRED ON THIS UNIT

$

$

Not available

21

NOT REQUIRED ON THIS UNIT

$

$

Not available
