G 35000 (85905) - Snapper 3,500 Watt Portable Generator, 6.5hp GENERATOR MAIN UNIT Parts Diagram

3,500 Watt Portable Generator, 6.5hp

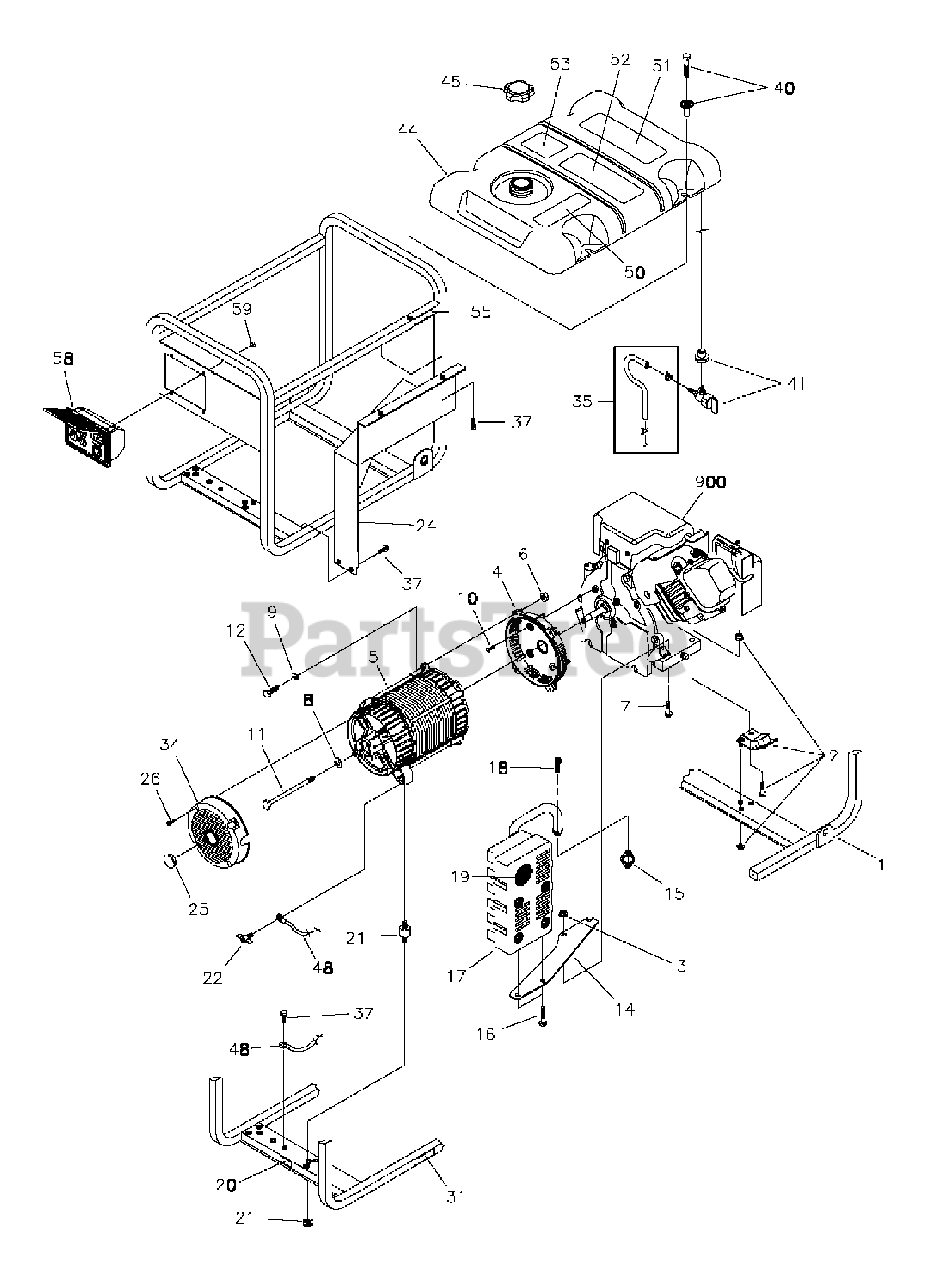

GENERATOR MAIN UNIT Parts Diagram

  • Title

1

Snapper M194779GS

CRADLE (Includes #'s 20, 31, & 55)

$341.99

$

Usually ships in 2-12 days

0

2

Snapper 194150GS

KIT, Vibration Mount, 45°

$13.99

$

In Stock, only 2 left!

0

3

Snapper 67989GS

NUT, M8 Flange Serrated

$3.49

$

In Stock, Qty 5

0

4

Snapper 186058AGS

HOUSING, Engine Adapter

$30.99

$

Usually ships in 2-12 days

0

5

ALTERNATOR ASSEMBLY

Note: (Refer to Alternator Group)

$

$

Not available

6

* NUT, Hex M8 - 1.25

Note: (Purchase locally)

$

$

Not available

7

* TPHMS, M8 - 1.25 x 35

Note: (Purchase locally)

$

$

Not available

8

Snapper 96796GS

WASHER, Flat M8.4 x 22.2 x 3

$3.49

$

Usually ships in 2-12 days

0

9

* WASHER, 5/16 - M8 Lock

Note: (Purchase locally)

$

$

Not available

10

Snapper 86307GS

HHCS, 5/16-24 x 3/4, SEMS

$2.99

$

In Stock, only 3 left!

0

11

Snapper 24823GS

HHCS, 5/16-24 x 7-7/8" Lg

$18.99

$

Usually ships in 2-12 days

0

12

* HHCS, M8 - 1.25 x 25

Note: (Purchase locally)

$

$

Not available

14

Snapper 191785GS

BRACKET, Muffler

$16.99

$

Usually ships in 2-12 days

0

15

Snapper 697815

Gasket-Exhaust
(Superseded to 692237)

$5.49

$

In Stock, only 2 left!

0

16

* HHCS, M6 - 1.0 x 12

Note: (Purchase locally)

$

$

Not available

17

Snapper 188301GS

MUFFLER

$152.99

$

Usually ships in 2-12 days

0

18

* SHCS, M6 - 1.0 x 20

Note: (Purchase locally)

$

$

Not available

19

Snapper 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, only 2 left!

0

20

Snapper B4986GS

DECAL, Ground, Green

$2.99

$

In Stock, only 1 left!

0

21

Snapper 194153GS

KIT, Vibration, Mount

$11.99

$

In Stock, Qty 5

0

22

Snapper 86494GS

SCREW, Wing M6 - 1.0 x 16

$2.99

$

Usually ships in 2-12 days

0

24

Snapper 191790GS

SHIELD, Heat

$86.99

$

Usually ships in 2-12 days

0

25

Snapper 191190GS

CAP

$3.99

$

In Stock, only 1 left!

0

26

Snapper 74908GS

SCREW, M5-0.8 x 10,Taptite

$2.99

$

Usually ships in 2-12 days

0

31

Snapper 196830GS

DECAL, Warning Exhaust

$15.99

$

Usually ships in 2-12 days

0

34

Snapper 195422GS

COVER, Bearing Carrier with Cap

$13.99

$

Usually ships in 2-12 days

0

35

Snapper 195207GS

KIT, Hose Formed

$

$

Not available

37

Snapper B2153GS

HHCS, 12 - 14 x 7/8" Self Driller

$4.49

$

Usually ships in 2-12 days

0

40

Snapper 194398GS

KIT, Fuel Tank Hardware (Includes Qty 4)

$10.99

$

Usually ships in 2-12 days

0

41

Snapper 192980GS

KIT, Valve, Fuel Tank

$17.99

$

In Stock, Qty 20+

0

44

Snapper 193645GS

ASSY, Tank, Fuel (Includes # 41, 50, 51, 52 & 53)

$

$

Not available

45

Snapper 200095GS

CAP, Fuel
(Superseded to 846987)

$21.99

$

In Stock, only 4 left!

0

48

Snapper 195373GS

WIRE, Ground

$2.49

$

Usually ships in 2-12 days

0

50

Snapper 188333GS

DECAL, Instruction, Fuel Level

$23.99

$

In Stock, only 1 left!

0

51

Snapper 194799GS

DECAL, Danger

$11.99

$

Usually ships in 2-12 days

0

52

Snapper 189235GS

DECAL, Operating Instructions

$19.99

$

Usually ships in 2-12 days

0

53

Snapper 202997GS

DECAL, Warning, CO

$13.99

$

Usually ships in 2-12 days

0

55

Snapper 197798GS

DECAL, Fuel Shut Off

$9.49

$

Usually ships in 2-12 days

0

58

Snapper 191743AGS

ASSY, Control Panel

$

$

Not available

59

* NUT, Palut, 3/16"

Note: (Purchase locally)

$

$

Not available

900

Snapper 120312-0145-E1

ENGINE, Briggs & Stratton, 6.5HP INTEK

Note: (Refer to Note:**)

$

$

Currently unavailable

Snapper 195605GS

MANUAL-OPERATOR

Note: (Part Not Illustrated)

$14.99

$

Usually ships in 2-12 days

0

Snapper MS3430

MANUAL, OPERATOR'S 3-LANGUAGE

Note: (Part Not Illustrated)

$

$

Not available

Snapper 199384GS

DECAL, Family, CA, EVP

Note: (Part Not Illustrated)

$7.99

$

Usually ships in 2-12 days

0

Snapper BB3061GS

BOTTLE, Oil (Not Shown)

Note: (Part Not Illustrated)

$13.99

$

In Stock, only 1 left!

0

Snapper 195639GS

KIT, Decals, Service

Note: (Part Not Illustrated)

$25.99

$

Usually ships in 2-12 days

0

Snapper 100031

GAS ADDITIVE 1 OZ
(Superseded to 100126)

Note: (Part Not Illustrated)

$3.49

$

In Stock, Qty 20+

0
