G 35000 (85905) - Snapper 3,500 Watt Portable Generator, 6.5hp CONTROL PANEL Parts Diagram

3,500 Watt Portable Generator, 6.5hp

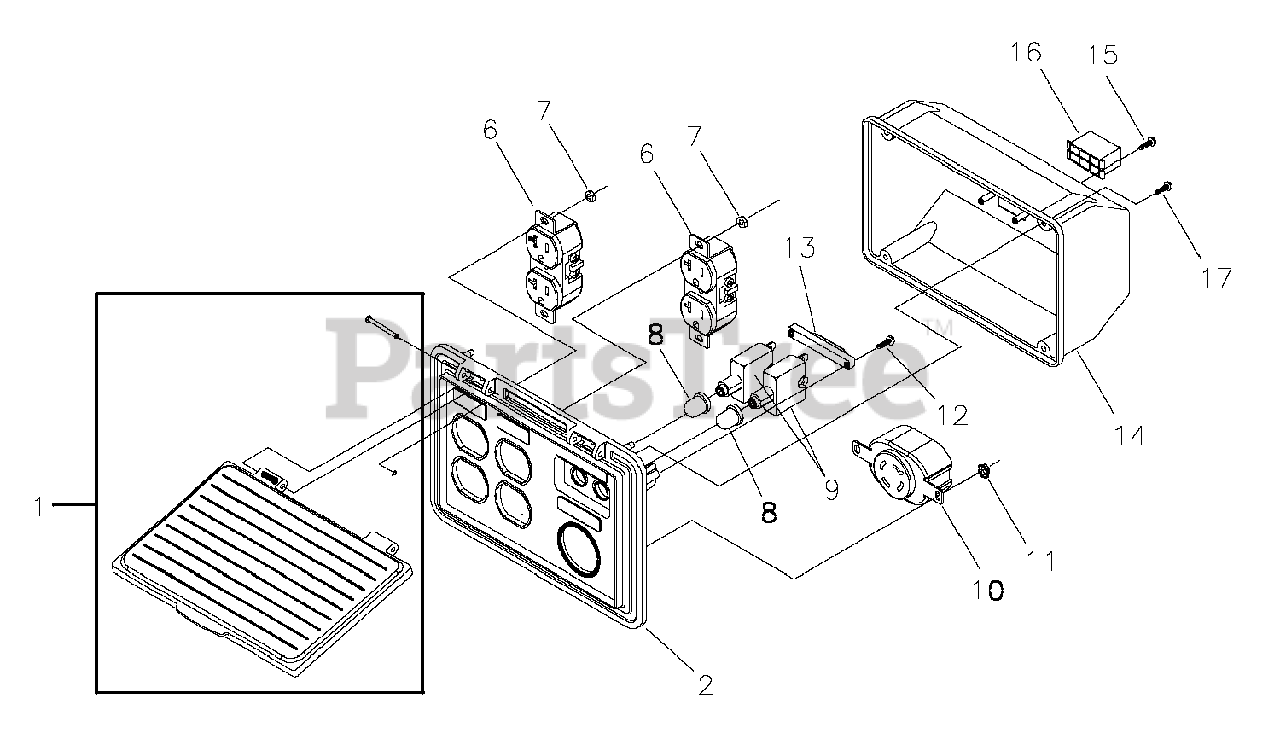

CONTROL PANEL Parts Diagram

  • Title
1

Snapper 195112GS

KIT, Cover Control Panel

$

$

Not available

2

Snapper 188889AGS

CONTROL PANEL, Compact

$14.99

$

Usually ships in 2-12 days

0

6

Snapper 68759GS

OUTLET, 120V, 20Amp, Duplex

$24.99

$

In Stock, only 4 left!

0

7

* NUT, Palnut, Pushnut, 5/32

$

$

Not available

8

Snapper 84198GS

CAP, Circuit Breaker

$4.49

$

In Stock, Qty 20+

0

9

Snapper 75207DGS

BREAKER, Circuit

$13.99

$

Usually ships in 2-12 days

0

10

Snapper 68867GS

OUTLET, 120/240V Locking, 20A

$46.99

$

Usually ships in 2-12 days

0

11

* NUT, Palnut, Pushnut, 3/16

$

$

Not available

12

* PPPHS, M3 - 0.5 x 18

$

$

Not available

13

Snapper 93857GS

BAR, Retaining

$15.99

$

In Stock, only 1 left!

0

14

Snapper 188890GS

COVER, Back, Control Panel

$

$

Not available

15

* SCREW, 3 x 18, Tapping

$

$

Not available

16

Snapper 22694GS

HOUSING, Receptacle

$5.99

$

In Stock, only 1 left!

0

17

* SCREW, 3.5 x 14, Tapping

$

$

Not available
