G 35000 (85905) - Snapper 3,500 Watt Portable Generator, 6.5hp ALTERNATOR Parts Diagram

3,500 Watt Portable Generator, 6.5hp

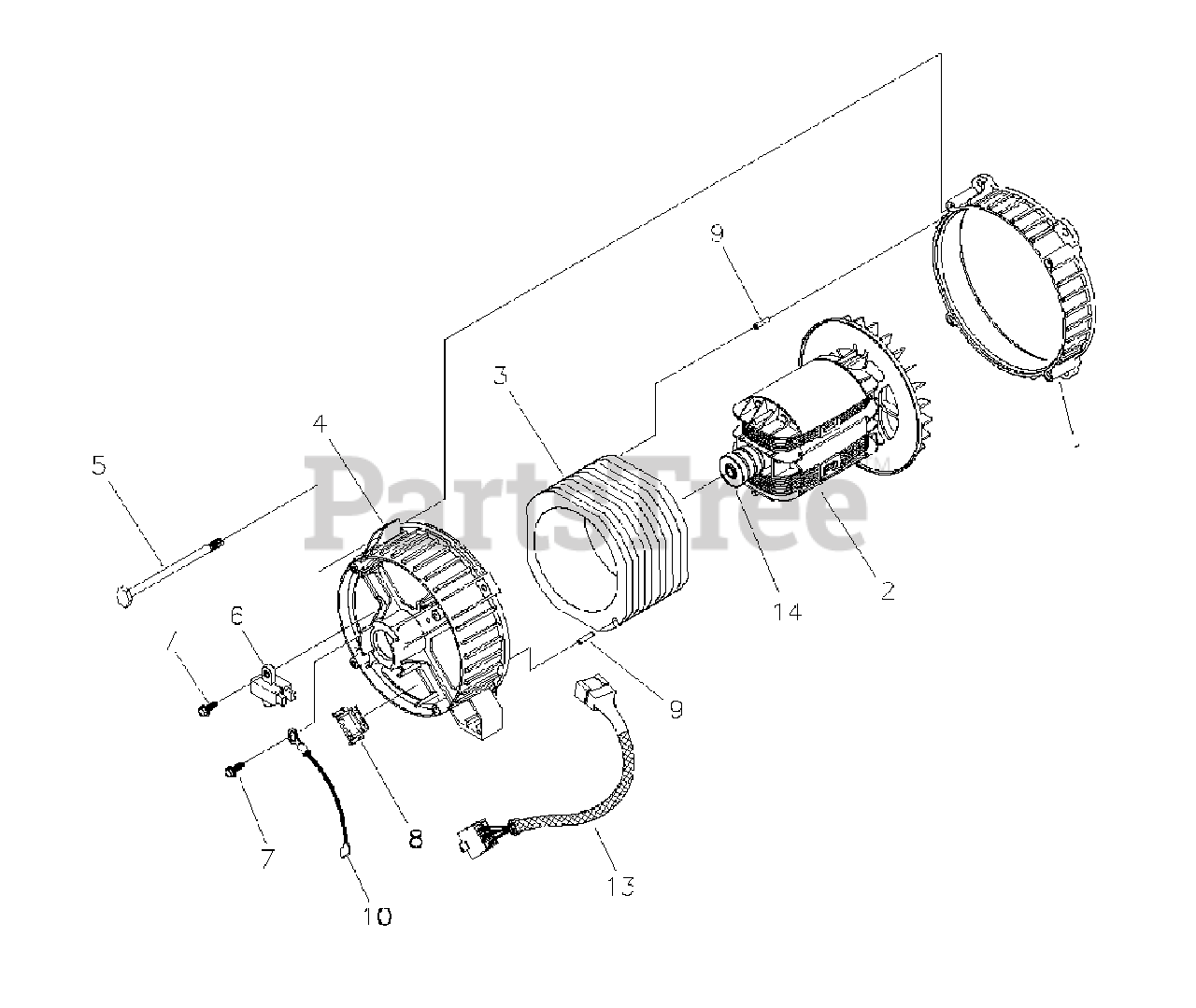

ALTERNATOR Parts Diagram

  • Title
1

Snapper 186059GS

ADAPTER, Mounting, Alternator
(Superseded to 209599GS)

$35.99

$

In Stock, only 1 left!

0

$246.99

$

Usually ships in 2-12 days

0

$289.99

$

Usually ships in 2-12 days

0

4

Snapper 186060GS

RBC, with O-Ring (p/n 189197GS)
(Superseded to 193336GS)

$39.99

$

Usually ships in 2-12 days

0

5

Snapper 86308GS

HHCS, M6 - 1.0 x 115 SEMS

$3.99

$

Usually ships in 2-12 days

0

6

Snapper 91825GS

ASSY, Holder, Rectifier/Brush

$54.99

$

In Stock, Qty 7

0

7

Snapper 66849GS

TAPTITE, M5 - 0.8 x 16

$4.99

$

Usually ships in 2-12 days

0

8

Snapper 22694GS

RECEPTACLE, 6 pin

$5.99

$

In Stock, only 1 left!

0

9

Snapper 81917GS

PIN, Roll, 4mm x 10

$3.49

$

Usually ships in 2-12 days

0

10

Snapper 193428AGS

WIRE-ASSEMBLY, Ground

$3.49

$

Usually ships in 2-12 days

0

13

Snapper 194274GS

HARNESS, Wire, Power

Note: Was 190356GS

$

$

Not available

14

Snapper 65791GS

BEARING

$34.99

$

Usually ships in 2-12 days

0
