G 3200 EZ - RedMax Chainsaw (SN: 400001 & Above) (2004-10) 003 - POWER UNIT FIG. 1 Parts Diagram

Chainsaw

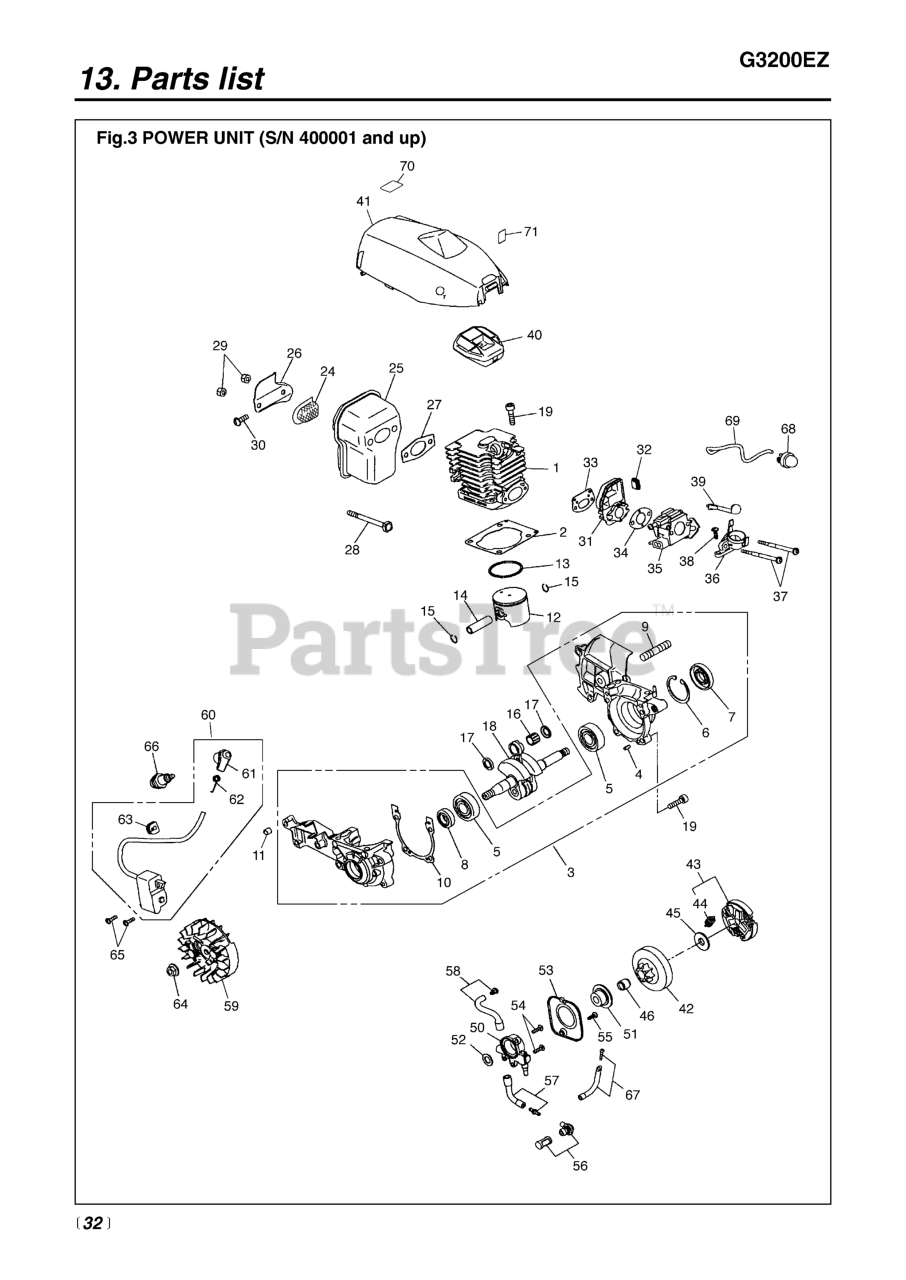

003 - POWER UNIT FIG. 1 Parts Diagram

  • Title
1

$67.33

$

Usually ships in 3-10 days

0

$4.32

$

Usually ships in 3-10 days

0

3

RedMax 848C302101

CASE ASSY

$71.82

$

Usually ships in 3-10 days

0

4

RedMax 262921130

PIN
(Superseded to 516762801)

$3.99

$

Usually ships in 3-10 days

0

5

$

$

Not available

6

RedMax 0406503212

RING, SNAP, M32 x 1.2
(Superseded to 504121001)

$3.99

$

In Stock, only 2 left!

0

7

RedMax 216921210

SEAL, OIL (RPLS 1100-21210)
(Superseded to 513488701)

$4.99

$

Usually ships in 3-10 days

0

8

RedMax 8488AC3210

SEAL
(Superseded to 504121301)

$10.99

$

Usually ships in 3-10 days

0

9

RedMax 261621230

STUD (RPLS 0205-50825)
(Superseded to 516738001)

$4.99

$

Usually ships in 3-10 days

0

10

$4.77

$

Usually ships in 3-10 days

0

11

$0.86

$

Usually ships in 3-10 days

0

12

RedMax T220041110

PISTON
(Superseded to 512486601)

$84.99

$

Usually ships in 3-10 days

0

$

$

Not available

$6.04

$

Usually ships in 3-10 days

0

15

RedMax 331041320

RING, SNAP
(Superseded to 504120901)

$4.99

$

In Stock, Qty 5

0

16

RedMax 331041410

BEARING
(Superseded to 504120101)

$13.99

$

Usually ships in 3-10 days

0

17

RedMax 165041510

WASHER (RPLS 3310-41341)
(Superseded to 516437201)

$4.99

$

In Stock, only 2 left!

0

18

RedMax T220042000

SHAFT COMP

$80.80

$

Usually ships in 3-10 days

0

19

RedMax 482013180

BOLT (RPLS 2850-14220)
(Superseded to 504114301)

$6.49

$

In Stock, only 2 left!

0

24

$

$

Not available

25

$56.48

$

Usually ships in 3-10 days

0

$4.77

$

Usually ships in 3-10 days

0

27

RedMax T210015210

GASKET, MUFFLER
(Superseded to 521792001)

$4.99

$

In Stock, only 1 left!

0

$

$

Not available

29

RedMax 285015230

NUT, MUFFLER (RPLS 3356-15230
(Superseded to 516960901)

$6.49

$

In Stock, only 1 left!

0

30

RedMax 8488151400

SCREW
(Superseded to 521516201)

$4.99

$

In Stock, only 2 left!

0

31

RedMax 848C3014A1

INSULATOR

$2.63

$

Usually ships in 3-10 days

0

$

$

Not available

33

$

$

Not available

34

RedMax 333014121

GASKET
(Superseded to 514209101)

$3.99

$

Usually ships in 3-10 days

0

$110.70

$

Usually ships in 3-10 days

0

36

RedMax 848C3082A2

MANIFOLD
(Superseded to 521560101)

$3.99

$

Usually ships in 3-10 days

0

37

RedMax 286782210

BOLT
(Superseded to 513855401)

$8.99

$

Usually ships in 3-10 days

0

38

RedMax 8488251601

SCREW
(Superseded to 521517901)

$3.99

$

Usually ships in 3-10 days

0

$

$

Not available

40

RedMax T220083100

CLEANER
(Superseded to 521801301)

$

$

Not available

$19.98

$

Usually ships in 3-10 days

0

$

$

Not available

43

$53.44

$

Usually ships in 3-10 days

0

44

RedMax 848C3051E2

SPRING
(Superseded to 521557501)

$8.99

$

Usually ships in 3-10 days

0

$

$

Not available

46

RedMax 331051310

BEARING
(Superseded to 514183301)

$10.99

$

In Stock, only 1 left!

0

50

RedMax 284155112

PUMP, OIL
(Superseded to 848C1067A4)

$

$

Not available

51

RedMax 285055121

WORM GEAR
(Superseded to 521586101)

$

$

Not available

52

RedMax 285055211

WASHER
(Superseded to 516968901)

$3.49

$

Usually ships in 3-10 days

0

$26.52

$

Usually ships in 3-10 days

0

54

RedMax 267055410

SCREW
(Superseded to 574005701)

$3.99

$

In Stock, only 3 left!

0

55

RedMax 267054630

SCREW
(Superseded to 574005501)

$3.99

$

Usually ships in 3-10 days

0

56

RedMax T210023200

FILTER COMPLETE
(Superseded to 521565601)

$40.99

$

Usually ships in 3-10 days

0

57

RedMax 848C306731

PIPE IN COMP
(Superseded to 521558801)

$

$

Not available

58

RedMax T220021400

PIPE OUT COMP

$23.44

$

Usually ships in 3-10 days

0

59

RedMax 848C357111

ROTOR COMP

$45.58

$

Usually ships in 3-10 days

0

60

RedMax 848C357121

COIL ASSY

$62.90

$

Usually ships in 3-10 days

0

61

RedMax 285072110

CAP, PLUG

$5.31

$

Usually ships in 3-10 days

0

62

RedMax 140072121

SPRING PLUG (RPLS 3310-71320)
(Superseded to 544260401)

$4.99

$

Usually ships in 3-10 days

0

63

RedMax 550072130

GROMMET
(Superseded to 544260601)

$3.49

$

Usually ships in 3-10 days

0

64

RedMax 165043230

182301
(Superseded to 516437401)

$3.99

$

Usually ships in 3-10 days

0

65

RedMax 267055410

SCREW
(Superseded to 574005701)

$3.99

$

In Stock, only 3 left!

0

66

RedMax 36999003210

PLUG, SPARK, RCJ7Y

$

$

Not available

67

RedMax T210031500

PIPE COMPLETE
(Superseded to 511101501)

$6.49

$

Usually ships in 3-10 days

0

68

RedMax 285081900

PUMP ASSEMBLY
(Superseded to 513789301)

$31.99

$

In Stock, only 3 left!

0

$

$

Not available

70

RedMax 848C3A90F0

LABEL, CAUTION

$

$

Not available

71

RedMax 848C3090E0

LABEL, CHOKE

$

$

Not available
