G 310 TS - RedMax Chainsaw (SN: 002191 & Above) (2000-05) 022 - POWER UNIT Parts Diagram

Chainsaw

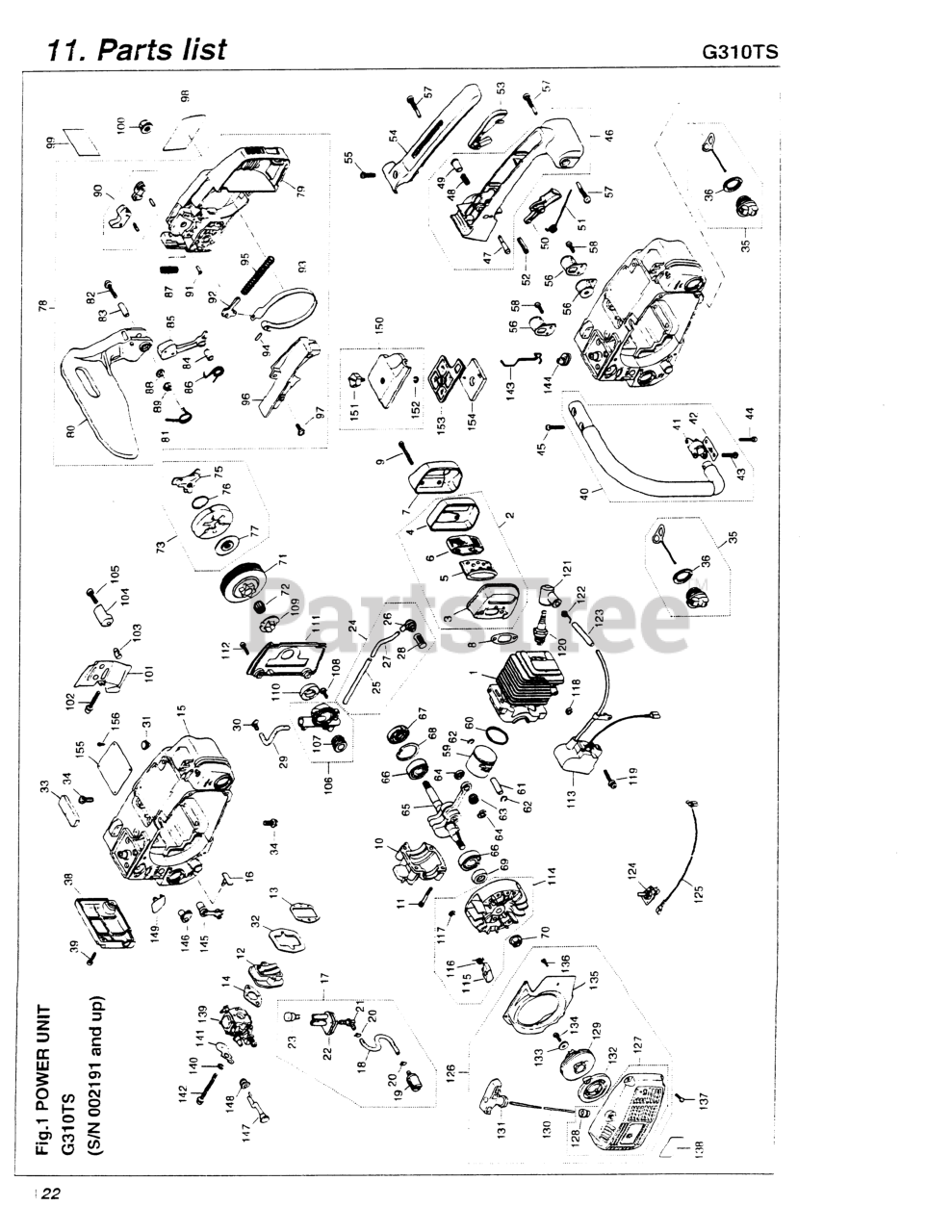

022 - POWER UNIT Parts Diagram

  • Title
1

RedMax 287012111

CYLINDER

$114.37

$

Usually ships in 3-10 days

0

2

RedMax 263315100

MUFFLER ASS
(Superseded to 516791301)

$

$

Not available

$

$

Not available

4

RedMax 263315120

COVER
(Superseded to 513602801)

$

$

Not available

5

RedMax 263015130

BAFFLE
(Superseded to 513582601)

$

$

Not available

6

RedMax 263315150

ARRESTER
(Superseded to 516791401)

$6.49

$

Usually ships in 3-10 days

0

$

$

Not available

8

RedMax 263015210

GASKET
(Superseded to 510814801)

$

$

Not available

9

RedMax 333015220

50030285
(Superseded to 510819001)

$2.49

$

Usually ships in 3-10 days

0

10

RedMax 287021111

CRANKCASE

$9.73

$

Usually ships in 3-10 days

0

11

RedMax 0125230530

BOLT, M5 X 30
(Superseded to 506609401)

$3.49

$

In Stock, only 4 left!

0

12

RedMax 287022102

VALVE ASSEMBLY
(Superseded to 513891701)

$

$

Not available

13

RedMax 287022211

50030023
(Superseded to 510814901)

$

$

Not available

14

$

$

Not available

15

RedMax 287531103

2875-31100

$

$

Not available

16

$0.63

$

Usually ships in 3-10 days

0

17

RedMax 283131202

2631-31202

$

$

Not available

18

RedMax 149285410

PIPE (USE -85411)
(Superseded to 513306101)

$

$

Not available

19

RedMax 185085300

5500-85400 (RRLS. 1750-85300)

$

$

Not available

20

RedMax 126085460

CLIP (REPLACES 2841-31280)
(Superseded to 506707001)

$4.99

$

In Stock, only 4 left!

0

21

RedMax 335034320

50030286
(Superseded to 574070401)

$4.99

$

Usually ships in 3-10 days

0

22

RedMax 263131250

GROMMET
(Superseded to 513596501)

$

$

Not available

23

RedMax 331786100

BREATHER ASSY (RPLS 2630-31270
(Superseded to 514201801)

$

$

Not available

24

RedMax 263031301

PIPE ASSEMBLY
(Superseded to 516768201)

$

$

Not available

25

RedMax 149285410

PIPE (USE -85411)
(Superseded to 513306101)

$

$

Not available

26

RedMax 263031321

GROMMET (RPLS -31320)

$1.57

$

Usually ships in 3-10 days

0

27

$2.72

$

Usually ships in 3-10 days

0

28

RedMax 263031350

50030289
(Superseded to 510819201)

$

$

Not available

29

RedMax 149285410

PIPE (USE -85411)
(Superseded to 513306101)

$

$

Not available

30

RedMax 337031210

PIN
(Superseded to 514259901)

$

$

Not available

31

RedMax 263031510

VALVE A
(Superseded to 516768701)

$

$

Not available

32

RedMax 287022251

SEAL
(Superseded to 513892001)

$

$

Not available

$1.23

$

Usually ships in 3-10 days

0

34

RedMax 287031750

SCREW
(Superseded to 516985401)

$2.49

$

Usually ships in 3-10 days

0

35

RedMax 284131800

2841-31801
(Superseded to 510821401)

$

$

Not available

36

RedMax 263031820

GASKET
(Superseded to 516948501)

$4.99

$

Usually ships in 3-10 days

0

37

STOPPER

$

$

Not available

38

RedMax 263031913

COVER (RPLS -31912)
(Superseded to 513585301)

$6.99

$

Usually ships in 3-10 days

0

39

RedMax 263031950

SCREW
(Superseded to 574095601)

$1.49

$

Usually ships in 3-10 days

0

40

RedMax 263232103

HANDLE, FRONT (RPLS -32102)

$

$

Not available

41

RedMax 263032121

JOINT (RPLS -32120)
(Superseded to 513585701)

$

$

Not available

42

RedMax 263032151

STOPPER (RPLS -32150)
(Superseded to 516770601)

$3.99

$

In Stock, only 2 left!

0

43

RedMax 263032170

50030270
(Superseded to 510818001)

$1.49

$

Usually ships in 3-10 days

0

44

RedMax 263032170

50030270
(Superseded to 510818001)

$1.49

$

Usually ships in 3-10 days

0

45

RedMax 263032610

50030271
(Superseded to 510818101)

$

$

Not available

46

RedMax 263033103

HANDLE, REAR (RPLS -33101)

$24.26

$

Usually ships in 3-10 days

0

47

RedMax 333033250

STOPPER
(Superseded to 514212901)

$

$

Not available

48

RedMax 331033262

50030077
(Superseded to 510815301)

$1.49

$

Usually ships in 3-10 days

0

49

RedMax 331033271

KNOB
(Superseded to 514178701)

$

$

Not available

50

RedMax 263033312

LEVER, THROTTLE (RPLS -33310)

$1.71

$

Usually ships in 3-10 days

0

51

RedMax 335633321

SPRING
(Superseded to 510815401)

$4.99

$

Usually ships in 3-10 days

0

52

RedMax 0402500524

50030081
(Superseded to 510815501)

$1.49

$

Usually ships in 3-10 days

0

53

RedMax 335633352

848-C30-33E3
(Superseded to 521556501)

$4.99

$

Usually ships in 3-10 days

0

54

$

$

Not available

55

RedMax 263031950

SCREW
(Superseded to 574095601)

$1.49

$

Usually ships in 3-10 days

0

56

RedMax 263033511

JOINT (RPLS -33510)
(Superseded to 513586901)

$

$

Not available

57

RedMax 264033530

50030279
(Superseded to 510818601)

$1.49

$

Usually ships in 3-10 days

0

58

RedMax 263033610

SCREW (REPLACES 50030272)
(Superseded to 516771801)

$3.49

$

In Stock, only 4 left!

0

59

RedMax 287041111

PISTON
(Superseded to 513894001)

$

$

Not available

60

RedMax 331941210

RING
(Superseded to 514203701)

$11.99

$

Usually ships in 3-10 days

0

61

RedMax 330441310

PIN, PISTON
(Superseded to 520954301)

$

$

Not available

62

RedMax 331041320

RING, SNAP
(Superseded to 504120901)

$4.99

$

In Stock, Qty 5

0

63

RedMax 331041410

BEARING
(Superseded to 504120101)

$13.99

$

Usually ships in 3-10 days

0

64

RedMax 165041510

WASHER (RPLS 3310-41341)
(Superseded to 516437201)

$4.99

$

In Stock, only 2 left!

0

65

RedMax 287042002

CRANKSHAFT
(Superseded to 516985801)

$242.99

$

Usually ships in 3-10 days

0

66

$

$

Not available

67

RedMax 263043150

SEAL, OIL

$

$

Not available

68

RedMax 0406503212

RING, SNAP, M32 x 1.2
(Superseded to 504121001)

$3.99

$

In Stock, only 2 left!

0

69

RedMax 216921210

SEAL, OIL (RPLS 1100-21210)
(Superseded to 513488701)

$4.99

$

Usually ships in 3-10 days

0

70

RedMax 165043230

182301
(Superseded to 516437401)

$3.99

$

Usually ships in 3-10 days

0

71

RedMax 287251111

DRUM (RPLS 2631-51111)
(Superseded to 513897001)

$

$

Not available

72

RedMax 331051310

BEARING
(Superseded to 514183301)

$10.99

$

In Stock, only 1 left!

0

73

RedMax 287051200

50030090
(Superseded to 574095501)

$91.99

$

Usually ships in 3-10 days

0

74

SHOE

$

$

Not available

$7.64

$

Usually ships in 3-10 days

0

76

RedMax 287051230

SPRING
(Superseded to 574070601)

$

$

Not available

77

RedMax 263098610

BOSS (A)

$9.57

$

Usually ships in 3-10 days

0

78

RedMax 287254004

BRAKE ASSY (RPLS -54003)
(Superseded to 521350201)

$109.99

$

Usually ships in 3-10 days

0

79

RedMax 287253115

COVER, CHAIN (RPLACES -53114)

$

$

Not available

80

RedMax 287254112

50040174
(Superseded to 521349701)

$

$

Not available

81

RedMax 287254120

50030100
(Superseded to 50030100)

$1.49

$

Usually ships in 3-10 days

0

82

RedMax 026380530

SCREW
(Superseded to 50030292)

$0.99

$

Usually ships in 3-10 days

0

83

$0.24

$

Usually ships in 3-10 days

0

84

RedMax 285054211

SPACER (RPLS -54210)

$0.75

$

Usually ships in 3-10 days

0

85

$

$

Not available

86

RedMax 287254230

50030110
(Superseded to 510816101)

$3.99

$

Usually ships in 3-10 days

0

87

RedMax 285154270

50030111
(Superseded to 510816201)

$

$

Not available

88

RedMax 0164120508

WASHER, M5 X .8
(Superseded to 516077501)

$3.99

$

Usually ships in 3-10 days

0

89

RedMax 331053331

NUT (B)
(Superseded to 514183901)

$4.99

$

In Stock, only 2 left!

0

90

RedMax 285154301

LEVER, BRAKE COMPLETE

$0.59

$

Usually ships in 3-10 days

0

91

RedMax 285154350

50030117
(Superseded to 574070201)

$

$

Not available

92

RedMax 267054410

ARM, SLIDE
(Superseded to 267054411)

$

$

Not available

93

RedMax 287254510

BAND
(Superseded to 513897901)

$10.99

$

Usually ships in 3-10 days

0

94

RedMax 335624140

PIN
(Superseded to 574013101)

$3.99

$

Usually ships in 3-10 days

0

95

RedMax 267054610

SPRING, BRAKE (RPLS. 50030121)

$2.16

$

Usually ships in 3-10 days

0

96

RedMax 287254623

COVER SPRING
(Superseded to 50030205)

$6.99

$

Usually ships in 3-10 days

0

97

RedMax 263033610

SCREW (REPLACES 50030272)
(Superseded to 516771801)

$3.49

$

In Stock, only 4 left!

0

98

RedMax 283154120

LABEL (RPLS-53120)

$0.68

$

Usually ships in 3-10 days

0

99

$0.72

$

Usually ships in 3-10 days

0

100

RedMax 335053410

NUT
(Superseded to 575960801)

$3.49

$

Usually ships in 3-10 days

0

101

RedMax 287053310

50030125
(Superseded to 510816501)

$14.99

$

Usually ships in 3-10 days

0

102

RedMax 263053330

50030273
(Superseded to 516774001)

$3.49

$

Usually ships in 3-10 days

0

103

RedMax 331053320

NUT
(Superseded to 520968501)

$4.99

$

Usually ships in 3-10 days

0

104

RedMax 263053412

CATCHER, CHAIN (RPLS. -53411)
(Superseded to 516774301)

$

$

Not available

105

RedMax 263032170

50030270
(Superseded to 510818001)

$1.49

$

Usually ships in 3-10 days

0

106

RedMax 263055103

OIL PUMP ASSY (RPLS -55102)
(Superseded to 513589901)

$48.99

$

Usually ships in 3-10 days

0

107

RedMax 263055160

GEAR
(Superseded to 513590301)

$

$

Not available

108

$

$

Not available

109

RedMax 263055211

PLATE
(Superseded to 516775201)

$

$

Not available

110

RedMax 263055251

SEAL
(Superseded to 510816701)

$2.49

$

Usually ships in 3-10 days

0

111

RedMax 263055312

COVER, PUMP (RPLS -55311)

$4.74

$

Usually ships in 3-10 days

0

112

RedMax 263031950

SCREW
(Superseded to 574095601)

$1.49

$

Usually ships in 3-10 days

0

113

$

$

Not available

114

RedMax 263171203

ROTOR (RPLS -71200)
(Superseded to 516784801)

$

$

Not available

115

RedMax 263071221

PAWL (RPLS -71220)
(Superseded to 513591101)

$3.99

$

Usually ships in 3-10 days

0

116

RedMax 263071231

SPRING (RPLS -71230)
(Superseded to 513591201)

$3.49

$

Usually ships in 3-10 days

0

117

RedMax 030800040

RING, SNAP, M4
(Superseded to 574054101)

$4.99

$

Usually ships in 3-10 days

0

118

$

$

Not available

119

RedMax 331072150

BOLT
(Superseded to 514186801)

$3.99

$

Usually ships in 3-10 days

0

120

RedMax 560273110

3699-90419-10
(Superseded to 514441301)

$18.99

$

Usually ships in 3-10 days

0

121

RedMax 550072110

CAP
(Superseded to 505298801)

$7.49

$

In Stock, Qty 5

0

122

RedMax 190072120

SPRING
(Superseded to 505298901)

$4.99

$

Usually ships in 3-10 days

0

123

$0.39

$

Usually ships in 3-10 days

0

124

RedMax 263472500

SWITCH ASSEMBLY
(Superseded to 516792801)

$

$

Not available

125

$

$

Not available

126

RedMax 287075002

STARTER ASSEMBLY

$64.88

$

Usually ships in 3-10 days

0

127

$18.44

$

Usually ships in 3-10 days

0

128

RedMax 333075121

GUIDE (RPLS -75120)
(Superseded to 521025001)

$

$

Not available

129

RedMax 263075213

REEL (RPLS -75211 & -75210)

$7.60

$

Usually ships in 3-10 days

0

130

$2.06

$

Usually ships in 3-10 days

0

131

RedMax 333075421

KNOB (RPLS -75420)
(Superseded to 506614701)

$6.99

$

In Stock, only 2 left!

0

132

RedMax 333075201

HOLDER COMPLETE

$9.15

$

Usually ships in 3-10 days

0

133

$0.57

$

Usually ships in 3-10 days

0

134

$0.26

$

Usually ships in 3-10 days

0

135

$5.99

$

Usually ships in 3-10 days

0

136

RedMax 263033610

SCREW (REPLACES 50030272)
(Superseded to 516771801)

$3.49

$

In Stock, only 4 left!

0

137

RedMax 263031950

SCREW
(Superseded to 574095601)

$1.49

$

Usually ships in 3-10 days

0

138

RedMax 287575130

2875-75131

$

$

Not available

139

RedMax 287581001

CARBURETOR ASSY (RPLS -81000)
(Superseded to 574080401)

$

$

Not available

140

RedMax 331082110

NO LONGER AVAILABLE
(Superseded to 514190801)

Note: Context Note: @ÿ

$3.99

$

Usually ships in 3-10 days

0

141

RedMax 287582120

PLATE, CHOKE

$0.84

$

Usually ships in 3-10 days

0

142

RedMax 263082140

50030276
(Superseded to 50030276)

$

$

Not available

143

RedMax 263082151

2873-82151
(Superseded to 287382151)

$3.11

$

Usually ships in 3-10 days

0

144

RedMax 263082160

GROMMET
(Superseded to 516779401)

$

$

Not available

145

RedMax 263082210

GROMMET A
(Superseded to 516779501)

$3.49

$

Usually ships in 3-10 days

0

146

RedMax 287582221

GROMMET(B)
(Superseded to 513921001)

$7.49

$

In Stock, only 1 left!

0

147

RedMax 263082311

ROD (RPLS -82310)
(Superseded to 516779801)

$

$

Not available

148

RedMax 332033310

GROMMET
(Superseded to 514205201)

$

$

Not available

149

RedMax 263182550

CAP
(Superseded to 516789601)

$

$

Not available

150

RedMax 263098500

50040182
(Superseded to 510821301)

$

$

Not available

151

RedMax 263083120

50040181
(Superseded to 516780301)

$5.99

$

Usually ships in 3-10 days

0

152

RedMax 030800040

RING, SNAP, M4
(Superseded to 574054101)

$4.99

$

Usually ships in 3-10 days

0

153

RedMax 263083511

50030277
(Superseded to 574070301)

$

$

Not available

154

RedMax 287083610

50030281
(Superseded to 574095701)

$

$

Not available

155

RedMax 287531411

LABEL (RPLS -31410)

$3.57

$

Usually ships in 3-10 days

0

156

$0.07

$

Usually ships in 3-10 days

0
