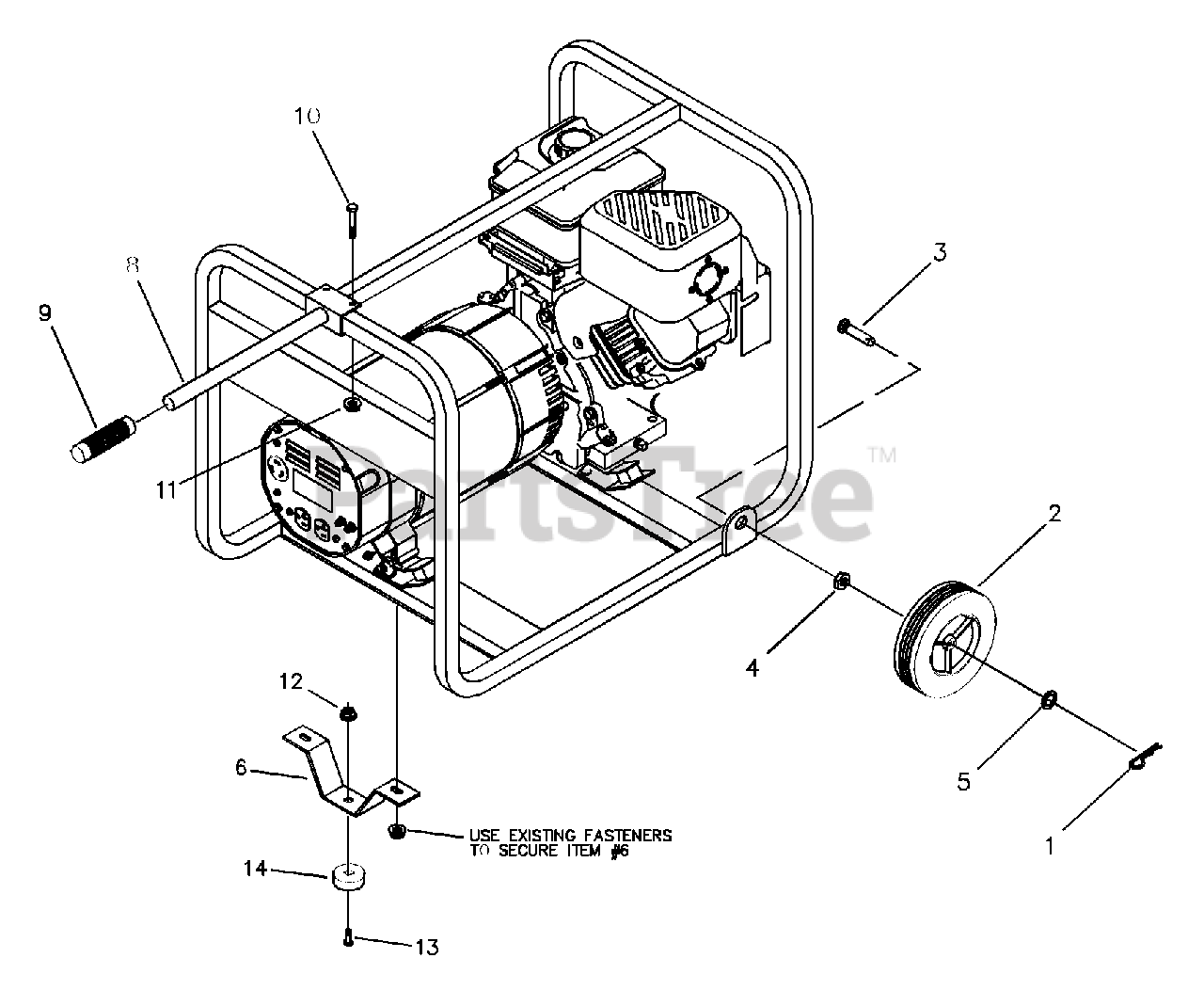

G 30000 (01667-0) - Snapper 3,250 Watt Portable Generator, 6.5hp Wheel Kit Parts Diagram

3,250 Watt Portable Generator, 6.5hp

Wheel Kit Parts Diagram

  • Title

1

Briggs & Stratton 87005AGS

PIN, Retaining
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

2

Briggs & Stratton 87280GS

WHEEL
(Superseded to 197061GS)

$24.99

$

In Stock, Qty 15

0

3

Briggs & Stratton 93728GS

STUD, Axle

$7.49

$

In Stock, Qty 13

0

4

Briggs & Stratton 94222QGS

JAM NUT, Lock

$3.99

$

In Stock, only 2 left!

0

5

Briggs & Stratton 49808GS

WASHER

$3.99

$

In Stock, only 2 left!

0

6

Briggs & Stratton 190505GS

LEG, Mounting

$

$

Not available

8

Briggs & Stratton B84910GS

HANDLE, Lifting

Note: (Includes Item 9)

$

$

Not available

9

Briggs & Stratton 75928GS

GRIP, Handle

$

$

Not available

10

Briggs & Stratton 39287GS

SCREW

$3.99

$

In Stock, only 2 left!

0

11

Briggs & Stratton 52858GS

NUT, Lock

$3.99

$

In Stock, only 2 left!

0

12

Briggs & Stratton 77395GS

NUT, Lock

$3.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 47411GS

SCREW

$

$

Not available

14

Briggs & Stratton 87841GS

MOUNT, Rubber Donut

$3.99

$

In Stock, only 2 left!

0
