G 25066 (81769) - Snapper 25" Rear-Engine Riding Mower, 6hp Exhaust - 6, 8 & 10 HP Engines Parts Diagram

25" Rear-Engine Riding Mower, 6hp

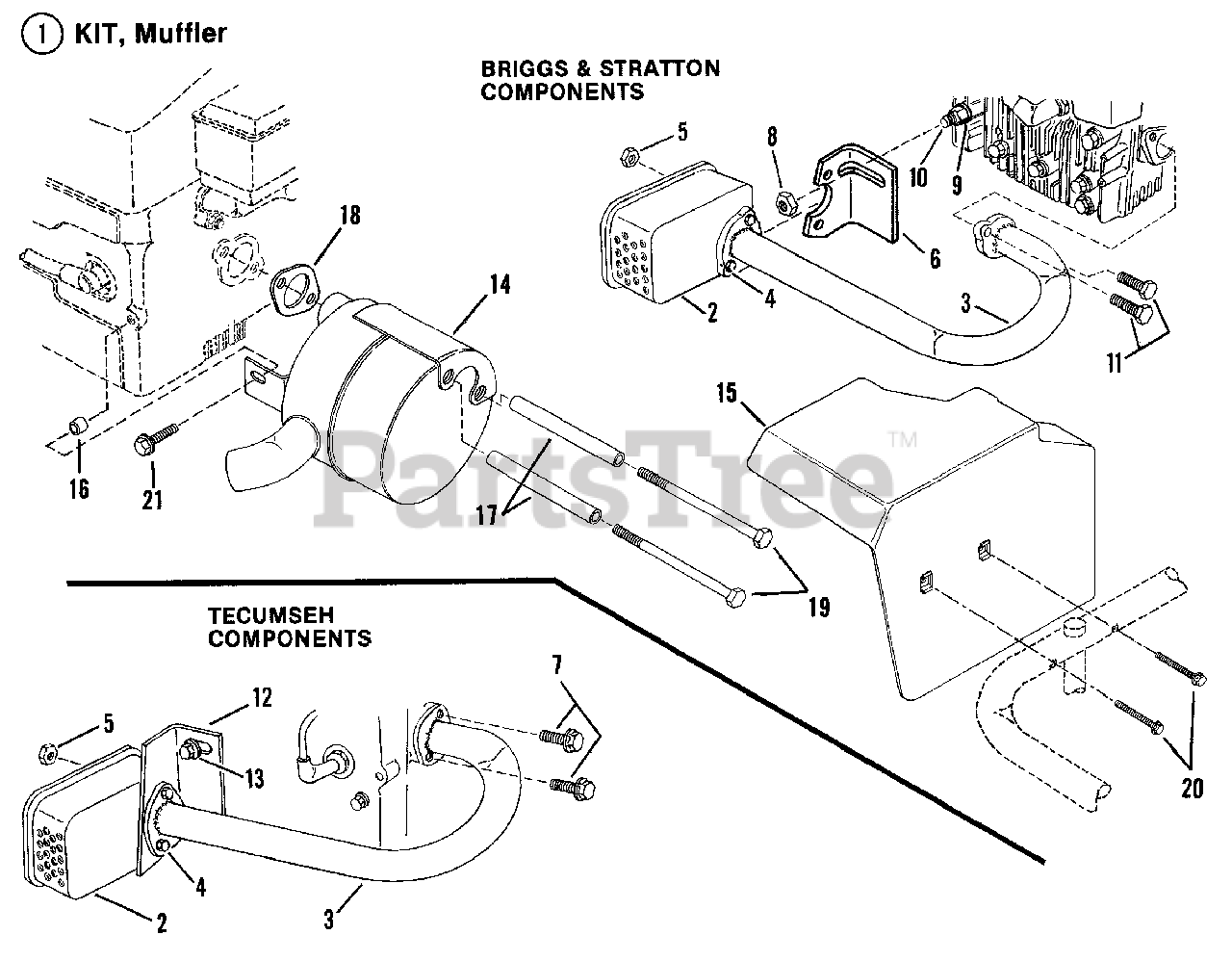

Exhaust - 6, 8 & 10 HP Engines Parts Diagram

  • Title

1

Snapper 7060316

KIT, Muffler

Note: (Includes items 2 thru 13)

$182.99

$

In Stock, only 1 left!

0

2

Snapper 7018198

MUFFLER
(Superseded to 7018198YP)

$32.99

$

Usually ships in 2-12 days

0

3

Snapper 7018197

TUBE, Exhaust
(Superseded to 7018197YP)

$137.99

$

In Stock, only 1 left!

0

4

Snapper 7091830

CAPSCREW, 5/16Cx3", Hex Head
(Superseded to 703870)

Note: Was 90553

$4.49

$

Usually ships in 2-12 days

0

5

Snapper 7091601

LOCKNUT, 5/16-18 Hex Flange
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

6

Snapper 7032414

MOUNTING
(Superseded to 7032414YP)

Note: (For B&S Engine)

$25.99

$

In Stock, only 2 left!

0

7

Snapper 7091318

SCREW, 5/16-18x3/4" Hex Flange
(Superseded to 704287)

Note: Was 12438 (For Tec. Engine)

$3.99

$

In Stock, Qty 9

0

8

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

Note: Was 90196 (For B&S Engine)

$3.49

$

In Stock, Qty 20+

0

9

Snapper 7012418

WASHER, Flat

Note: (For B&S Engine)

$

$

Not available

10

Snapper 7012419

STUD, Cylinder Head
(Superseded to 7012419YP)

Note: (For B&S Engine)

$8.49

$

Usually ships in 2-12 days

0

11

Snapper 7090072

CAPSCREW, 1/4-20x5/8" Hex Head
(Superseded to 001X38MA)

Note: (For B&S Engine)

$4.49

$

In Stock, Qty 18

0

12

Snapper 7031958

CLIP, Mounting
(Superseded to 7031958YP)

Note: (For Tecumseh Engine)

$23.99

$

In Stock, only 1 left!

0

13

Snapper 7091819

SCREW, 1/4Cx5/8" Self-Tapping
(Superseded to 703054)

Note: Was 90362 (For Tec. Engine)

$4.49

$

In Stock, Qty 9

0

14

Snapper 7016026

MUFFLER

Note: (B&S 10 HP ENGINE ONLY)

$

$

Not available

15

Snapper 7057429

ASSEMBLY, Heat Shield
(Superseded to 7057429YP)

Note: Was 51647 (B&S 10 HP ENGINE ONLY)

$51.99

$

Usually ships in 2-12 days

0

16

Snapper 7021866

SPACER
(Superseded to 7021866YP)

Note: (B&S 10 HP ENGINE ONLY)

$3.99

$

Usually ships in 2-12 days

0

17

Snapper 7015353

SPACER, Split
(Superseded to 7015353YP)

Note: (B&S 10 HP ENGINE ONLY)

$3.49

$

Usually ships in 2-12 days

0

18

Snapper 7015352

GASKET, Exhaust
(Superseded to 7015352SM)

Note: (B&S 10 HP ENGINE ONLY)

$5.49

$

In Stock, Qty 8

0

19

Snapper 7090912

SCREW, 5/16-18x4-1/4" Hex Cap

Note: (B&S 10 HP ENGINE ONLY)

$

$

Currently unavailable

20

Snapper 7090922

SCREW, #10-32x1-1/2" Hex Machine
(Superseded to 7090922YP)

Note: (B&S 10 HP ENGINE ONLY)

$3.99

$

Usually ships in 2-12 days

0

21

Snapper 7090986

BOLT, 1/4-20x1" Hex Flange Lock

Note: (B&S 10 HP ENGINE ONLY)

$

$

Not available
