G 25066 (81769) - Snapper 25" Rear-Engine Riding Mower, 6hp Blade Stop Pedals Parts Diagram

25" Rear-Engine Riding Mower, 6hp

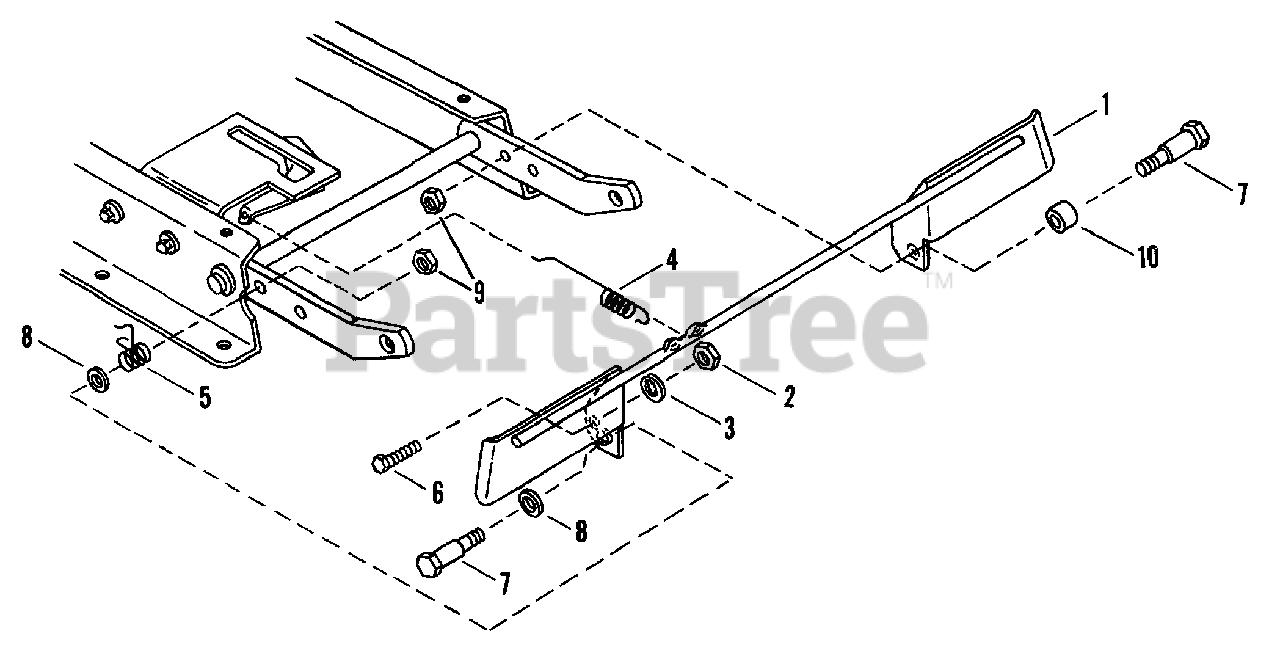

Blade Stop Pedals Parts Diagram

  • Title
1

Snapper 7047788

PEDAL, Blade Stop Control

$

$

Not available

2

Snapper 7090095

NUT, 1/4-28 Hex
(Superseded to 7090095FS)

$3.49

$

Usually ships in 2-12 days

0

3

Snapper 7090053

WASHER, 1/4 Internal Tooth Lock
(Superseded to 703462)

$4.49

$

In Stock, Qty 7

0

4

Snapper 7014320

SPRING, Latching
(Superseded to 7014320YP)

$16.99

$

In Stock, only 1 left!

0

5

Snapper 7014166

SPRING, Pedal
(Superseded to 7014166YP)

$10.99

$

In Stock, only 1 left!

0

6

Snapper 7090535

SCREW,1/4-28x1" Hex Head Cap
(Superseded to 7090535YP)

$4.49

$

In Stock, only 1 left!

0

7

Snapper 7014158

BOLT, 3/8-24x1 3/4" Shoulder

$

$

Currently unavailable

8

Snapper 7090250

WASHER, 1/2 Flat
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

9

Snapper 7091630

NUT, 3/8-24 Hex
(Superseded to 703895)

Note: Was 90155

$4.49

$

In Stock, only 2 left!

0

10

$1.99

$

In Stock, Qty 7

0
