G 21500PC (83768) - Snapper 21" Walk-Behind Mower, 5hp Upper Handles & Controls - Self Propelled Parts Diagram

21" Walk-Behind Mower, 5hp

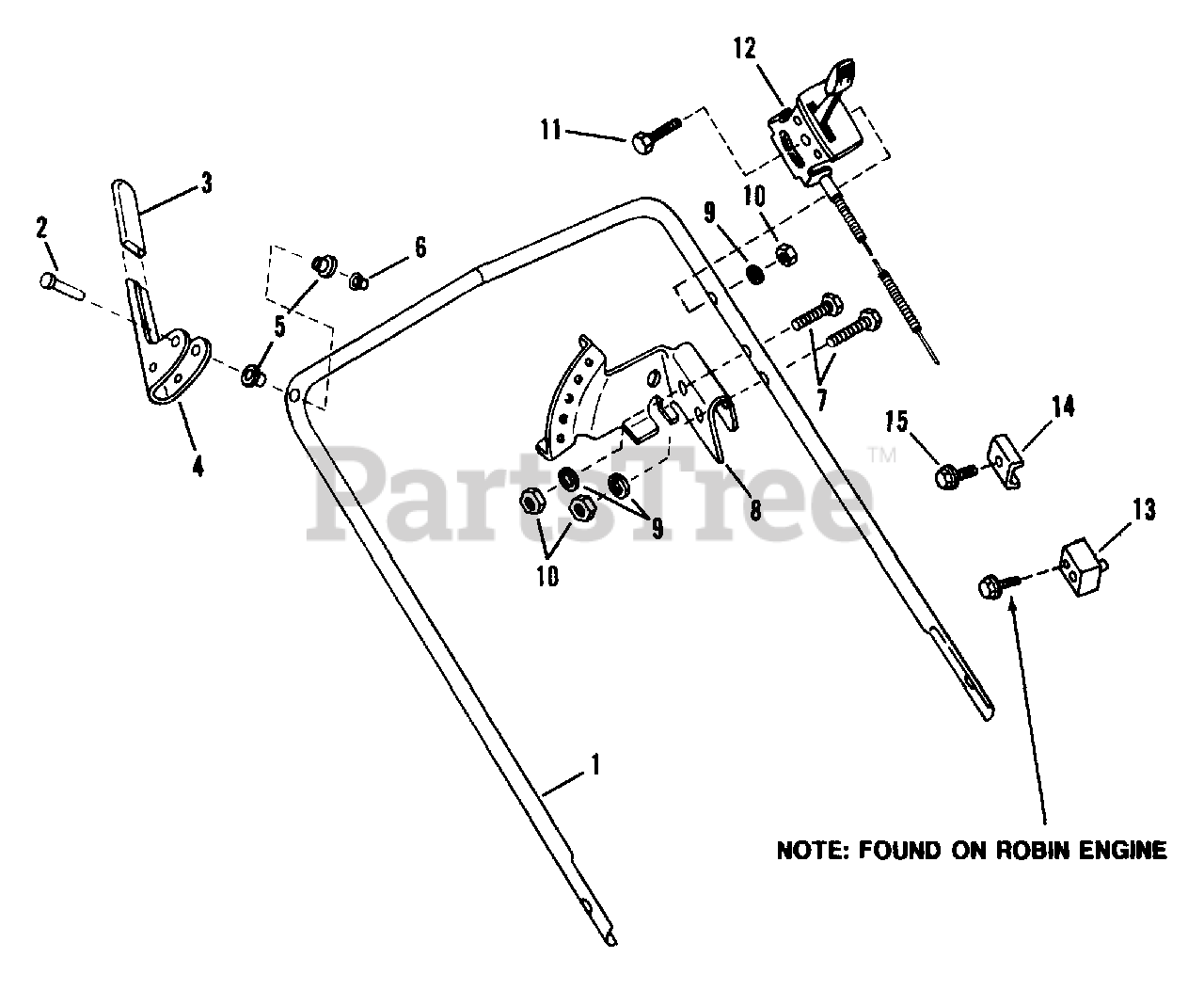

Upper Handles & Controls - Self Propelled Parts Diagram

  • Title

1

Snapper 7033444

HANDLE, Upper

Note: Was 36030

$

$

Not available

2

Snapper 7023792

PIN, Clutch Handle
(Superseded to 704031)

Note: Was 11886

$3.99

$

In Stock, Qty 20+

0

3

Snapper 7014307

GRIP
(Superseded to 7014307YP)

$4.49

$

In Stock, Qty 20+

0

4

Snapper 7032826

HANDlE, Wheel Drive
(Superseded to 7074473BMYP)

Note: Was 32237

$16.99

$

In Stock, Qty 20+

0

5

Snapper 7014343

BUSHING
(Superseded to 7014343YP)

$3.99

$

In Stock, Qty 20+

0

6

Snapper 7091020

NUT, Push
(Superseded to 7091020YP)

Note: Was 90489

$4.49

$

In Stock, Qty 20+

0

7

Snapper 7090552

SCREW, 1/4-28 x 1 3/8" Hex Head Cap
(Superseded to 703828)

$3.99

$

Usually ships in 2-12 days

0

8

Snapper 7037727

SECTOR, Speed

$

$

Currently unavailable

9

Snapper 7090053

WASHER, 1/4 Internal Tooth Lock
(Superseded to 703462)

$4.49

$

In Stock, Qty 7

0

10

Snapper 7090095

NUT, 1/4-28 Hex
(Superseded to 7090095FS)

$3.49

$

Usually ships in 2-12 days

0

11

Snapper 7090111

SCREW, 1/4-28 x 1 3/4 Hex Head Cap

$2.99

$

In Stock, only 3 left!

0

12

Snapper 7018188

THROTTLE, Control

Note: (B & S)('87 Models & Earlier)

$

$

Not available

12

Snapper 7018780

THROTTLE, Control
(Superseded to 7018780YP)

Note: (Robin)('87 Models & Earlier)

$

$

Not available

12

Snapper 7018910

THROTTLE, Control
(Superseded to 7018910YP)

Note: (B & S)('88 Models & Later)

$16.99

$

Usually ships in 2-12 days

0

12

Snapper 7018840

THROTTLE, Control

Note: (Robin)('88 Models & Later)

$

$

Not available

13

Snapper 7023016

SPACER

Note: (Robin)

$

$

Currently unavailable

14

Snapper 7023160

CLAMP, Casing (Briggs)
(Superseded to 7023160YP)

$2.99

$

Usually ships in 2-12 days

0

15

Snapper 7023161

SCREW, #10-18 x 5/8" Self-Tapping

$

$

Currently unavailable
