G 2000 - Shindaiwa Generator Generator 2000 Parts Diagram

Generator

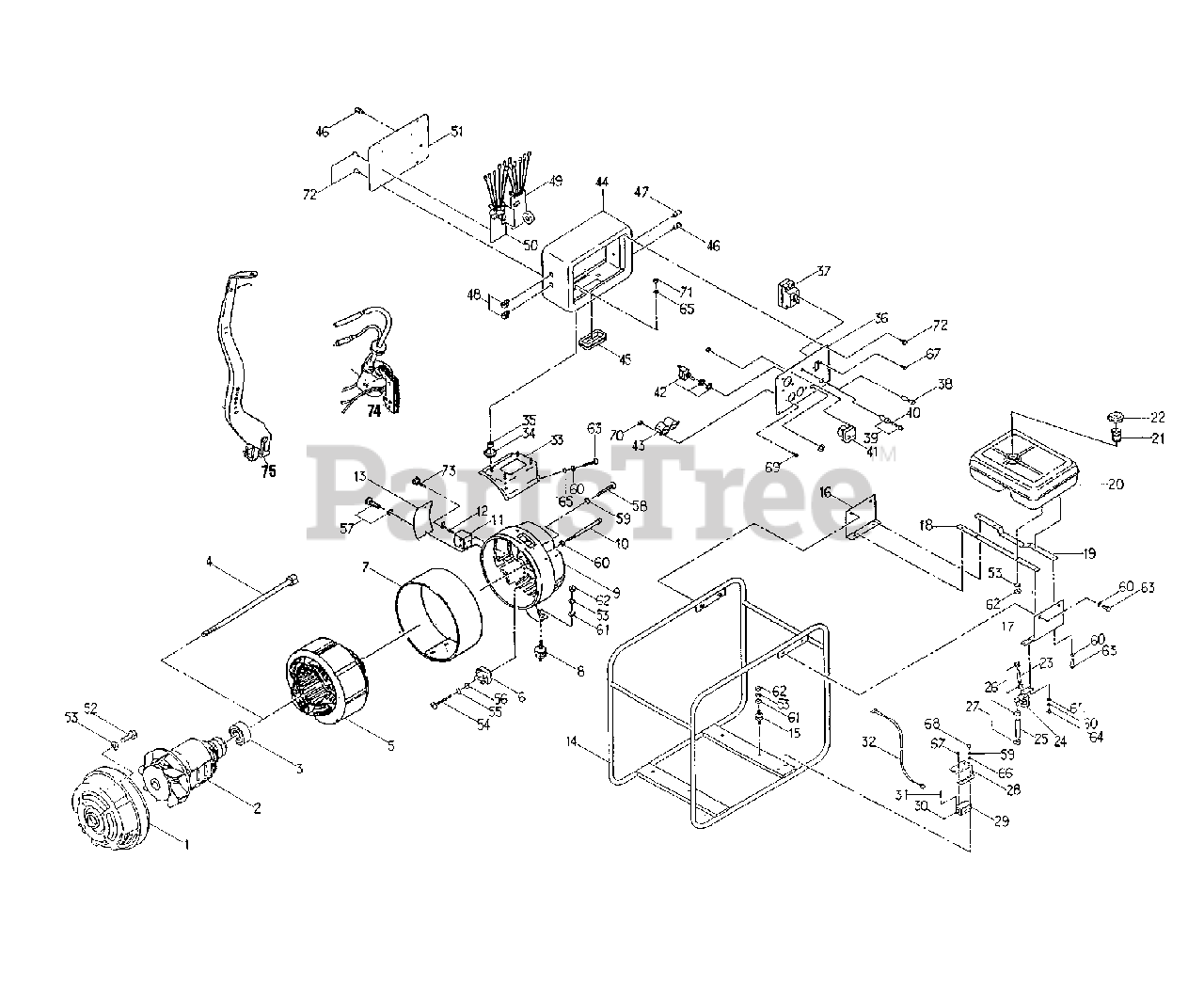

Generator 2000 Parts Diagram

  • Title

1

Echo G0100-00150

BRACKET - FRONT
(Superseded to Discontinued)

$

$

Not available

2

Echo G0200-00130

ROTOR ASSY
(Superseded to Discontinued)

$

$

Not available

3

Echo 00062-05DDU

BEARING, BALL
(Superseded to 02006-06205)

Note: 6205DDU

$14.99

$

In Stock, only 2 left!

0

4

Echo G0300-00090

THRU BOLT
(Superseded to Discontinued)

Note: UNF 5/16" 24 x 190

$

$

Not available

5

Echo G0400-00590

STATOR ASSY

$

$

Currently unavailable

6

Echo 015S1-5VB10

BLOCK, DIODE

$

$

Currently unavailable

7

Echo G1200-00090

STATOR COVER
(Superseded to Discontinued)

$

$

Not available

8

Echo G0600-00110

RUBBER MOUNT
(Superseded to Discontinued)

$

$

Not available

9

Echo G0800-00070

BRACKET - REAR
(Superseded to Discontinued)

$

$

Not available

10

Echo G0900-00050

BOLT, BRACKET
(Superseded to Discontinued)

Note: M6 x 130

$

$

Not available

11

Echo 14863-00050

HOLDER, BRUSH
(Superseded to M315000000)

$

$

Not available

12

Echo 14731-05051

BRUSH UNIT
(Superseded to Discontinued)

$

$

Not available

13

Echo G1100-00040

COVER, BRUSH
(Superseded to Discontinued)

$

$

Not available

14

Echo F0110-00150

TUBE, FRAME

$

$

Currently unavailable

15

Echo G0600-00120

RUBBER MOUNT
(Superseded to Discontinued)

$

$

Not available

16

Echo F1500-00020

BRACKET, TANK
(Superseded to Discontinued)

$

$

Not available

17

Echo F1500-00030

BRACKET, TANK
(Superseded to Discontinued)

$

$

Not available

18

Echo T0700-00010

BRACKET, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

19

Echo T0700-00020

BRACKET, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

20

Echo T0100-00070

FUEL TANK ASSY
(Superseded to Discontinued)

$

$

Not available

21

Echo T0120-00020

FILTER, FUEL

$

$

Currently unavailable

22

Echo T0110-00010

CAP ASSY
(Superseded to Discontinued)

$

$

Not available

23

Echo T0500-00110

HOSE - RUBBER
(Superseded to Discontinued)

$

$

Not available

24

Echo T0600-00040

STRAINER, FUEL
(Superseded to 064-20037-01)

$27.99

$

Usually ships in 2-4 days

0

25

Echo T0500-00100

HOSE - RUBBER
(Superseded to Discontinued)

$

$

Not available

26

Echo T0400-00060

CLAMP, HOSE
(Superseded to Discontinued)

$

$

Not available

27

Echo T0400-00030

CLAMP, HOSE
(Superseded to Discontinued)

$

$

Not available

28

Echo F1620-00010

BRACKET, SOLENOID
(Superseded to Discontinued)

$

$

Not available

29

Echo 9111881140

SOLENOID

Note: SB 11

$

$

Currently unavailable

30

Echo F1700-00010

SPRING
(Superseded to Discontinued)

$

$

Not available

31

Echo 0282-50160

PIN, SPLIT
(Superseded to Discontinued)

$

$

Not available

32

Echo C0500-00030

WIRE ASSY
(Superseded to Discontinued)

$

$

Not available

33

Echo F1400-00040

BOX BASE
(Superseded to Discontinued)

$

$

Not available

34

Echo C1800-00020

GROMMET

$

$

Currently unavailable

35

Echo G0620-00060

SPACER
(Superseded to Discontinued)

$

$

Not available

36

Echo C0111-00281

PANEL A

$

$

Currently unavailable

37

Echo 00804-00020

BREAKER - 20A

Note: 20A

$

$

Currently unavailable

38

Echo 01400-110R0

NEON LAMP - 110V

$

$

Currently unavailable

39

Echo 01100-00010

HOLDER, FUSE
(Superseded to Discontinued)

$

$

Not available

40

Echo 01200-00010

FUSE
(Superseded to Discontinued)

Note: 10A

$

$

Not available

41

Echo 00400-150A0

METER - 150V

$

$

Currently unavailable

42

Echo 01300-00003

SWITCH

$

$

Currently unavailable

43

Echo 00603-12515

OUTLET - 125V 15A X 2
(Superseded to Discontinued)

Note: (125V 15A) x 2

$

$

Not available

44

Echo C0211-00150

CONTROL BOX ASSY

$

$

Currently unavailable

45

Echo 01800-00030

GROMMET

$

$

Currently unavailable

46

Echo 00920-1201B

OUTPUT TERMINAL - BLACK

Note: BLACK

$

$

Currently unavailable

47

Echo 00920-1201R

OUTPUT TERMINAL - RED
(Superseded to Discontinued)

Note: RED

$

$

Not available

48

Echo 02000-00000

CORD BUSHING

$

$

Currently unavailable

49

Echo C1500-00010

AUTOMATIC IDLE RETURN

$

$

Currently unavailable

50

Echo C0310-00060

AVR UNIT

$

$

Currently unavailable

51

Echo C1000-00040

PANEL B
(Superseded to Discontinued)

$

$

Not available

52

Echo G0900-00120

BOLT
(Superseded to Discontinued)

Note: 5/16" x 24 x 30

$

$

Not available

53

Echo 00303-08000

LOCKWASHER - 8
(Superseded to Discontinued)

Note: M8

$

$

Not available

54

Echo 00100-04180

SCREW - 4X18
(Superseded to Discontinued)

Note: M4x18

$

$

Not available

55

Echo 00303-04000

LOCKWASHER - 4
(Superseded to Discontinued)

Note: M4

$

$

Not available

56

Echo 00300-04000

WASHER - 4
(Superseded to Discontinued)

Note: M4

$

$

Not available

57

Echo 00112-05100

SCREW - 5X10 -- TAPPING
(Superseded to Discontinued)

Note: M5 x 10

$

$

Not available

58

Echo 00100-05160

SCREW - 5X16
(Superseded to Discontinued)

Note: M5 x 16

$

$

Not available

59

Echo 00303-05000

LOCKWASHER - 5
(Superseded to Discontinued)

Note: M5

$

$

Not available

60

Echo 00303-06000

LOCKWASHER - 6
(Superseded to Discontinued)

Note: M6

$

$

Not available

61

Echo 00300-08000

WASHER - 8
(Superseded to Discontinued)

Note: M8

$

$

Not available

62

Echo 00200-08000

NUT - 8
(Superseded to Discontinued)

Note: M8

$

$

Not available

63

Echo 00105-06150

BOLT - 6X15
(Superseded to Discontinued)

$

$

Not available

64

Echo 00105-06120

BOLT - 6X12
(Superseded to Discontinued)

$

$

Not available

65

Echo 00300-06000

WASHER - 6
(Superseded to Discontinued)

Note: M6

$

$

Not available

66

Echo 00300-05000

WASHER - 5
(Superseded to Discontinued)

Note: M5

$

$

Not available

67

Echo 00112-03080

SCREW - 3X8 -- TAPPING
(Superseded to Discontinued)

Note: M3 x 8

$

$

Not available

68

Echo 00105-05120

BOLT - 5X12
(Superseded to Discontinued)

$

$

Not available

69

Echo 00112-04100

SCREW - 4X10 -- TAPPING
(Superseded to Discontinued)

Note: M4 x 10

$

$

Not available

70

Echo 00200-04000

NUT - 4
(Superseded to Discontinued)

Note: M4

$

$

Not available

71

Echo 00200-08000

NUT - 8
(Superseded to Discontinued)

Note: M6

$

$

Not available

72

Echo 00112-04060

SCREW - 4X6 -- TAPPING
(Superseded to Discontinued)

Note: M4 x 6

$

$

Not available

73

Echo 00113-0345

SCREW - 3X4.5 -- TAPPING - BRASS
(Superseded to Discontinued)

Note: M3 x 4.5

$

$

Not available

74

Echo 227-70130-08

IGNITION UNIT
(Superseded to Discontinued)

$

$

Not available

75

Echo 22742-30201

LEVER, GOVERNOR
(Superseded to Discontinued)

$

$

Not available
