G 1820 - Ferris 61" Front Mount Mower, Gear Drive, 18hp Kohler (SN: G1530 & Above) Transaxle Drive Group Parts Diagram

61" Front Mount Mower, Gear Drive, 18hp Kohler

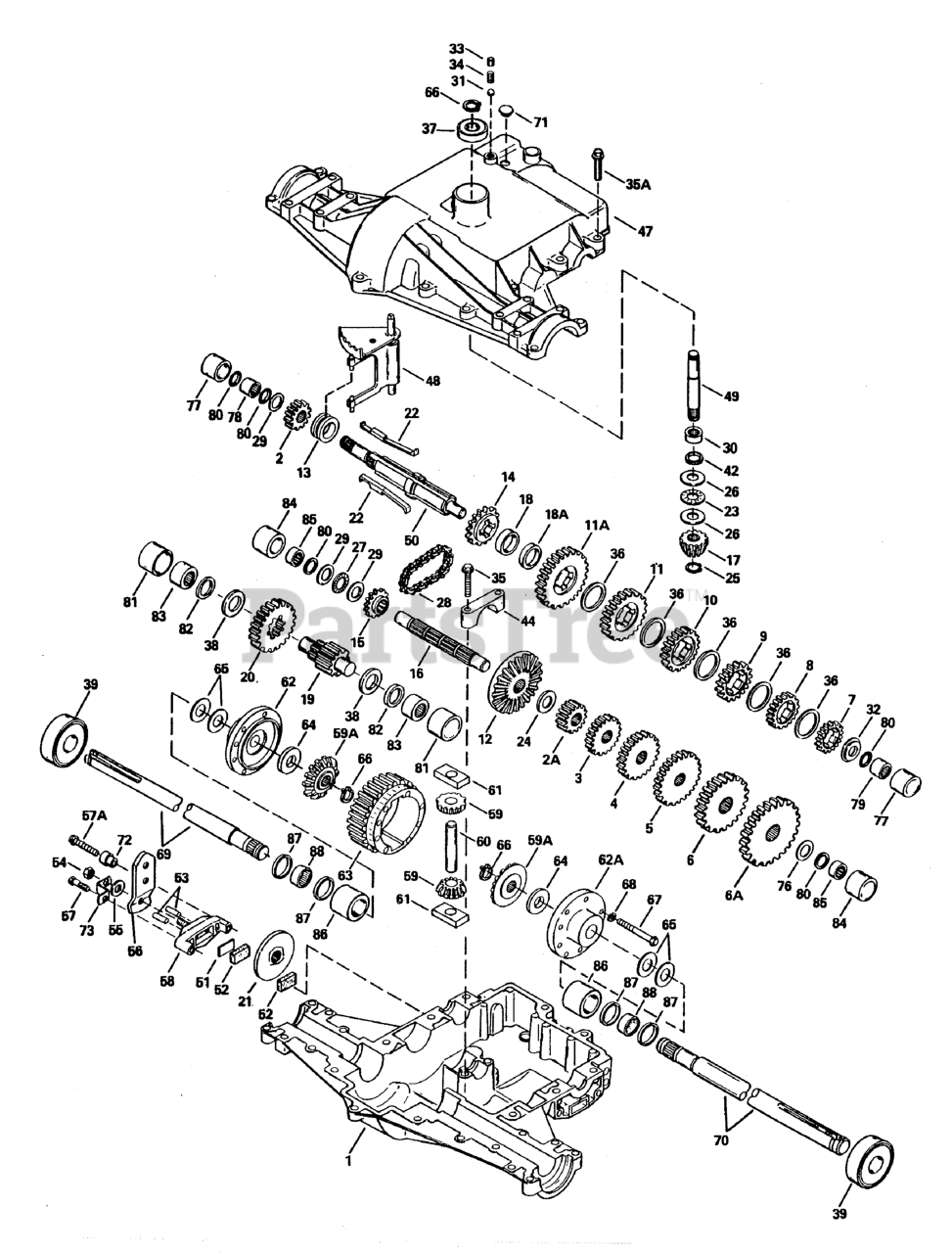

Transaxle Drive Group Parts Diagram

  • Title

1

Ferris 5021069X1

Case, Transaxle

$

$

Currently unavailable

2

Ferris 5021069X2

Gear, Spur (15 Tooth)

$

$

Currently unavailable

2A

Ferris 5021069X2A

Gear, Spur (15 Tooth)

$

$

Currently unavailable

3

Ferris 5021069X3

Gear, Spur (18 Tooth)

$

$

Currently unavailable

4

Ferris 5021069X4

Gear, Spur (20 Tooth)

$

$

Currently unavailable

5

Ferris 5021069X5

Gear, Spur (23 Tooth)

$

$

Currently unavailable

6

Ferris 5021069X6

Gear, Spur (25 Tooth)

$

$

Currently unavailable

6A

Ferris 5021069X6A

Gear, Spur (28 Tooth)

$

$

Currently unavailable

7

Ferris 5021069X7

Gear, Spur (22 Tooth)

$

$

Currently unavailable

8

Ferris 5021069X8

Gear, Spur (25 Tooth)

$

$

Currently unavailable

9

Ferris 5021069X9

Gear, Spur (27 Tooth)

$

$

Currently unavailable

10

Ferris 5021069X10

Gear, Spur (30 Tooth)

$

$

Currently unavailable

11

Ferris 5021069X11

Gear, Spur (32 Tooth)

$

$

Currently unavailable

11A

Ferris 5021069X11A

Gear, Spur (35 Tooth)

$

$

Currently unavailable

12

Ferris 5021069X12

Gear, Bevel (33 Tooth)

$

$

Currently unavailable

13

Ferris 5021069X13

Collar, Shirt

$

$

Currently unavailable

14

Ferris 5021069X14

Sprocket (18 Tooth)

$

$

Currently unavailable

15

Ferris 5021069X15

Sprocket (9 Tooth)

$

$

Currently unavailable

16

Ferris 5021069X16

Shaft, Counter

$

$

Currently unavailable

17

Ferris 5021069X17

Bevel Pinion, Input (13 Tooth)

$

$

Currently unavailable

18

Ferris 5021069X18

Spacer, Neutral (.276/.268 Thick)

$

$

Currently unavailable

18A

Ferris 5021069X18A

Spacer, Neutral (.350/.340 Thick)

$

$

Currently unavailable

19

Ferris 5021069X19

Shaft, Output (9 Tooth)

$

$

Currently unavailable

20

Ferris 5021069X20

Gear, Output (35 Tooth)

$

$

Currently unavailable

21

Ferris 5021069X21

Disk, Brake

$

$

Currently unavailable

22

Ferris 5021069X22

Key

$35.99

$

Usually ships in 2-12 days

0

23

Ferris 5021069X23

Bearing, Thrust

$

$

Currently unavailable

24

Ferris 5021069X24

WASHER, Thrust

$

$

Currently unavailable

25

Ferris 5021069X25

Ring, Retaining

$

$

Currently unavailable

26

Ferris 5021069X26

Race, Thrust

$12.99

$

Usually ships in 2-12 days

0

27

Ferris 5021069X27

Bearing, Thrust

$

$

Currently unavailable

28

Ferris 5021069X28

Chain, Roller (No. 41 Chain, 24 Links)

$

$

Currently unavailable

29

Ferris 5021069X29

WASHER, Thrust

$

$

Currently unavailable

30

Ferris 5021069X30

Bearing, Needle

$

$

Currently unavailable

31

Ferris 5021069X31

Ball, Steel

$

$

Currently unavailable

32

Ferris 5021069X32

WASHER, Thrust

$

$

Currently unavailable

33

Ferris 5021069X33

Screw, Set, 3/8-16 x 3/8

$

$

Currently unavailable

34

Ferris 5021069X34

Spring

$

$

Currently unavailable

35

Ferris 5021069X35

Screw, Flanged Hex Head Threadforming, 1/4-20 x 1-1/4

$

$

Currently unavailable

35A

Ferris 5021069X35A

Screw, Hex Head Threadforming, 5/16-18 x 1-1/4

$

$

Currently unavailable

36

Ferris 5021069X36

WASHER, Thrust

$

$

Currently unavailable

37

Ferris 5021069X37

Bearing, Ball

$

$

Currently unavailable

38

Ferris 5021069X38

WASHER, Thrust

$

$

Currently unavailable

39

Ferris 5021069X39

Bearing, Ball

$108.99

$

Usually ships in 2-12 days

0

42

Ferris 5021069X42

Seal, Oil

$

$

Currently unavailable

44

Ferris 5021069X44

Cap, Bearing

$

$

Currently unavailable

47

Ferris 5021069X47

Cover, Transaxle

$

$

Currently unavailable

48

Ferris 5021069X48

Rod & Fork Assembly, Shift

$

$

Currently unavailable

49

Ferris 5021069X49

Shaft, Input

$

$

Currently unavailable

50

Ferris 5021069X50

Shaft, Brake

$

$

Currently unavailable

51

Ferris 5021069X51

Plate, Brake Pad

$

$

Currently unavailable

52

Ferris 5021069X52

Pad, Brake

$

$

Currently unavailable

53

Ferris 5021069X53

Pin, Dowel

$

$

Currently unavailable

54

Ferris 5021069X54

Locknut, 5/16-24

$

$

Currently unavailable

55

Ferris 5021069X55

WASHER, Flat

$

$

Currently unavailable

56

Ferris 5021069X56

Lever, Brake

$

$

Currently unavailable

57

Ferris 5021069X57

Screw, Flanged Hex head Threadforming, 1/4-20 x 1-1/4

$

$

Currently unavailable

57A

Ferris 5021069X57A

Screw, Flanged Hex Head Threadforming, 1-4/20 x 2-1/4

$

$

Currently unavailable

58

Ferris 5021069X58

Holder, Brake Pad

$

$

Currently unavailable

59

Ferris 5021069X59

Pinion, Differential Bevel

$

$

Currently unavailable

59A

Ferris 5021069X59A

Gear, Bevel

$

$

Currently unavailable

60

Ferris 5021069X60

Pin, Drive

$

$

Currently unavailable

61

Ferris 5021069X61

Block, Drive

$

$

Currently unavailable

62

Ferris 5021069X62

Carrier, Differential (Threaded Holes)

$

$

Currently unavailable

62A

Ferris 5021069X62A

Carrier, Differential

$

$

Currently unavailable

63

Ferris 5021069X63

Gear, Ring (31 Tooth)

$

$

Currently unavailable

64

Ferris 5021069X64

WASHER

$

$

Currently unavailable

65

Ferris 5021069X65

WASHER, Thrust

$

$

Currently unavailable

66

Ferris 5021069X66

Ring, Snap

$

$

Currently unavailable

67

Ferris 5021069X67

Screw, Hex Head, 1/4-20 x 2-1/4

$

$

Currently unavailable

68

Ferris 5021069X68

Lockwasher, 1/4"

$

$

Currently unavailable

69

Ferris 5021069X69

Axle (12-1/4" Long)

$233.99

$

Usually ships in 2-12 days

0

70

Ferris 5021069X70

Axle (26-1/4" Long)

$

$

Currently unavailable

71

Ferris 5021069X71

Plug, hex Head, 9/16-18 Thread

$

$

Currently unavailable

72

Ferris 5021069X72

Spacer

$

$

Currently unavailable

73

Ferris 5021069X73

Bracket, Brake Lever

$

$

Currently unavailable

76

Ferris 5021069X76

WASHER

$

$

Currently unavailable

77

Ferris 5021069X77

Sleeve

$

$

Currently unavailable

78

Ferris 5021069X78

Bearing, Needle

$

$

Currently unavailable

79

Ferris 5021069X79

Bearing, Needle (capped)

$

$

Currently unavailable

80

Ferris 5021069X80

O-Ring

$

$

Currently unavailable

81

Ferris 5021069X81

Sleeve

$

$

Currently unavailable

82

Ferris 5021069X82

Ring, Square Cut

$

$

Currently unavailable

83

Ferris 5021069X83

Bearing, Needle (capped)

$

$

Currently unavailable

84

Ferris 5021069X84

Sleeve

$

$

Currently unavailable

85

Ferris 5021069X85

Bearing, Needle (capped)

$

$

Currently unavailable

86

Ferris 5021069X86

Sleeve

$

$

Currently unavailable

87

Ferris 5021069X87

Ring, Square Cut

$

$

Currently unavailable

88

Ferris 5021069X88

Bearing, Needle

$

$

Currently unavailable
