G 1818 - Ferris 48" Front Mount Mower, Gear Drive, 18hp Kohler (SN: G1530 & Above) Brake Group Parts Diagram

48" Front Mount Mower, Gear Drive, 18hp Kohler

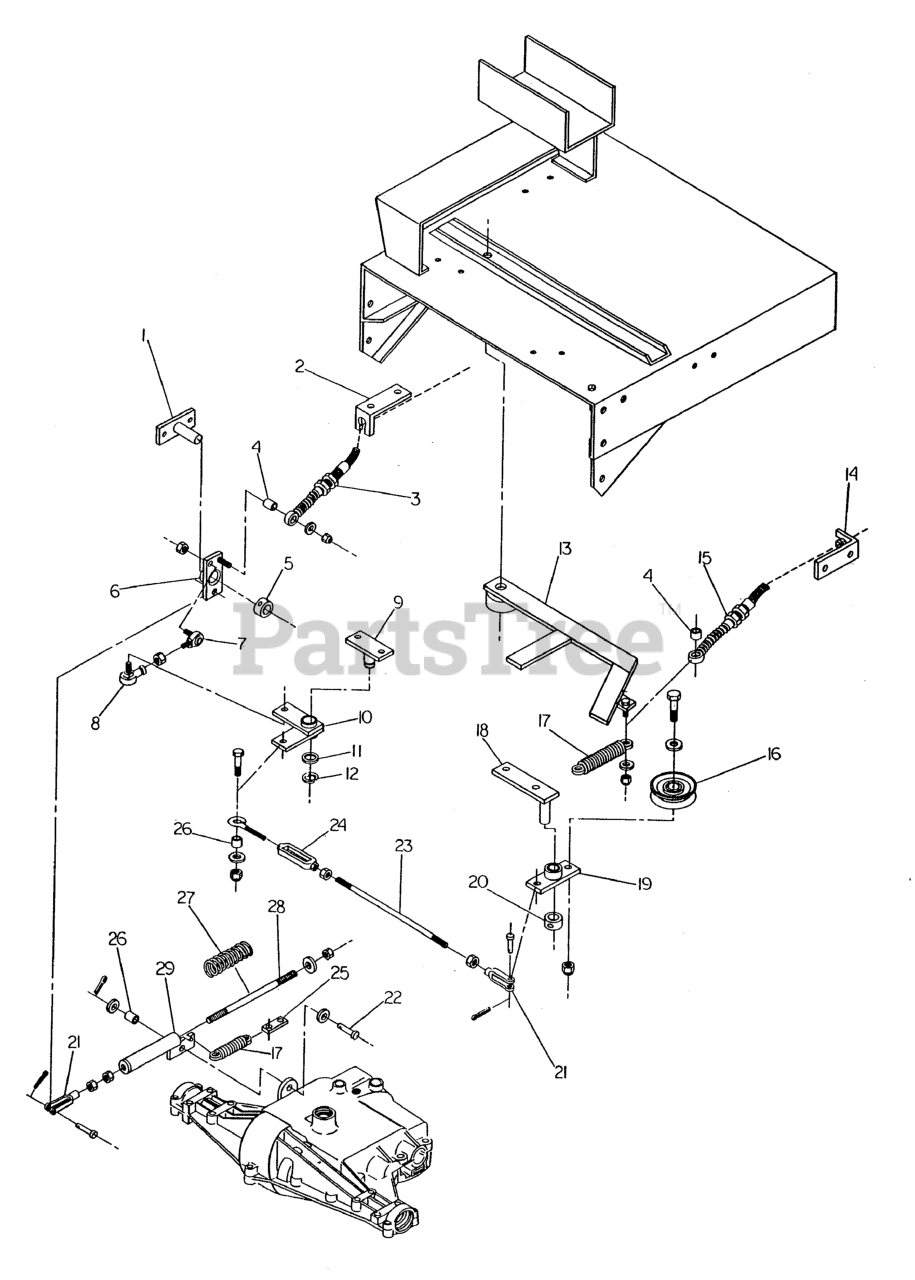

Brake Group Parts Diagram

  • Title
1

Ferris 42381

Brake Pivot Bracket

$

$

Currently unavailable

2

Ferris 5042393

Brake Cable Weld.

$

$

Currently unavailable

3

Ferris 5020813

Clutch Cable

$154.99

$

Usually ships in 2-12 days

0

4

Ferris 5041752

SPACER, .26 X .38 X .50

$4.99

$

Usually ships in 2-12 days

0

5

Ferris 5010116

COLLAR, 3/4" Set
(Superseded to 5010116FS)

$5.49

$

Usually ships in 2-12 days

0

6

Ferris 5042372

Brake Pivot

$

$

Currently unavailable

7

Ferris 5021169

Male Ball Joint

$

$

Currently unavailable

8

Ferris 5104495

BALL JOINT 5/16-24 LH FEMALE W/STUD, BR
(Superseded to 5104495YP)

$22.99

$

Usually ships in 2-12 days

0

9

Ferris 5042377

Pivot Bracket

$

$

Currently unavailable

10

Ferris 5042388B

Brake - Clutch Pivot

$

$

Currently unavailable

11

Ferris 5025520X3

SHIM
(Superseded to 5025520X3SM)

$4.49

$

Usually ships in 2-12 days

0

12

Ferris 5020863

C-CLIP
(Superseded to 5020863SM)

$3.49

$

Usually ships in 2-12 days

0

13

Ferris 42352

Clutch Arm

$

$

Currently unavailable

14

Ferris 5042398

Clutch Cable Bracket

$

$

Currently unavailable

15

Ferris 5020813

Clutch Cable

$154.99

$

Usually ships in 2-12 days

0

16

Ferris 5021174

Idler Pulley

$

$

Currently unavailable

17

Ferris 5020807

SPRING, Extension
(Superseded to 5020807SM)

$8.49

$

In Stock, Qty 11

0

18

Ferris 5042395

Pivot Bracket

$

$

Currently unavailable

19

Ferris 5042379

Idler Pivot Weldment

$

$

Currently unavailable

20

Ferris 5010116

COLLAR, 3/4" Set
(Superseded to 5010116FS)

$5.49

$

Usually ships in 2-12 days

0

21

Ferris 5020979

CLEVIS, 5/16-24, Plastic
(Superseded to 5023323SM)

$9.49

$

Usually ships in 2-12 days

0

22

Ferris 5025225X6

CLEVIS PIN, 3/8 x 3/4

$

$

Currently unavailable

23

Ferris 5042343

Brake Linkage Rod

$

$

Currently unavailable

24

Ferris 5041852

TURNBUCKLE ASSY

$40.99

$

Usually ships in 2-12 days

0

25

Ferris 42365

Brake Return Bracket

$

$

Currently unavailable

26

$3.99

$

Usually ships in 2-12 days

0

27

Ferris 5020006

SPRING, Compression

$6.99

$

Usually ships in 2-12 days

0

28

Ferris 5042354

Brake Overload Rod

$

$

Currently unavailable

29

Ferris 5042390

Brake Overload Tube

$

$

Currently unavailable
