G 1818 - Ferris 48" Front Mount Mower, Gear Drive, 18hp Kohler (SN: G1530 & Above) 48" & 61" Mower Deck - Complete Parts Diagram

48" Front Mount Mower, Gear Drive, 18hp Kohler

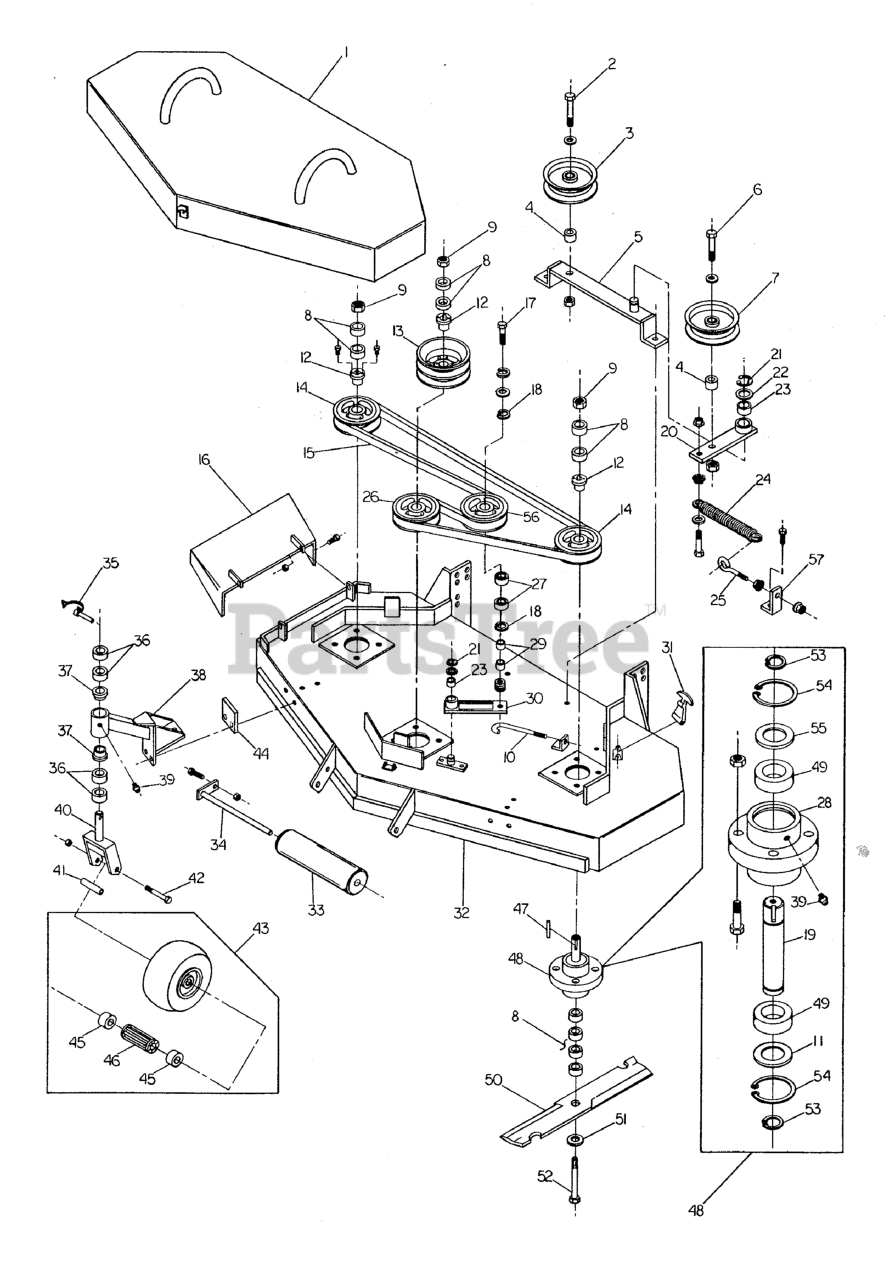

48" & 61" Mower Deck - Complete Parts Diagram

  • Title

1

Ferris 5041613

61" DECK GUARD

$

$

Currently unavailable

1

Ferris 5041617

48" DECK GUARD

$

$

Currently unavailable

2

1/2-13 x 3-1/2" Bolt

$

$

Not available

3

Ferris 5021096

PULLEY, Backside Idler
(Superseded to 5021096SM)

$109.99

$

Usually ships in 2-12 days

0

4

Ferris 5041754

SPACER, .50 x 1.00 X .69

$

$

Not available

5

Ferris 5042141

Idler Mount

$133.99

$

Usually ships in 2-12 days

0

6

1/2-13 x 3" Bolt

$

$

Not available

7

Ferris 5021097

PULLEY-IDLER-V, 4.85OB, .506 ID, ,94W, STL
(Superseded to 5021097SM)

$40.99

$

In Stock, only 1 left!

0

8

Ferris 5041477

SPACER, .63 x 1.06 x .23
(Superseded to 5041477SM)

$5.99

$

Usually ships in 2-12 days

0

9

Ferris 5025040

NUT, Hex, 5/8-11
(Superseded to 5025040SM)

$3.49

$

In Stock, Qty 6

0

10

Ferris 5041671

J-BOLT

$9.49

$

Usually ships in 2-12 days

0

10

Ferris 5041729

J-BOLT

$

$

Currently unavailable

11

Ferris 5041672

SPINDLE WASHER, Bottom

$15.99

$

Usually ships in 2-12 days

0

12

Ferris 5020819

BUSHING, Tapered Hub
(Superseded to 5020819SM)

$26.99

$

In Stock, only 4 left!

0

13

Ferris 5021091

Double Pulley

$168.99

$

Usually ships in 2-12 days

0

13

Ferris 5021148

Pulley

$177.99

$

Usually ships in 2-12 days

0

14

Ferris 5020814

PULLEY, Spindle

$82.99

$

Usually ships in 2-12 days

0

15

Ferris 5020824

BELT, Blade Spindle
(Superseded to 5020824SM)

$112.99

$

Usually ships in 2-12 days

0

15

Ferris 5020873

BELT, Blade Spindle

$87.99

$

Usually ships in 2-12 days

0

16

Ferris 5041668B

CHUTE, DISCHARGE WELDMENT

$131.99

$

Usually ships in 2-12 days

0

17

1/2-20 x 2 1/4" Bolt

$

$

Not available

18

Ferris 5020865

SNAP RING, Internal
(Superseded to 5020865FS)

$2.99

$

In Stock, only 1 left!

0

19

Ferris 5041480

Shaft, Spindle
(Superseded to 5041480SM)

$112.99

$

Usually ships in 2-12 days

0

20

Ferris 5042145B

Ann, Idler w/ Bushing

$70.99

$

In Stock, only 2 left!

0

20

Ferris 5042338B

Arm, Idler w/ Bushing

$36.99

$

Usually ships in 2-12 days

0

21

Ferris 5020863

C-CLIP, 3/4" SHAFT
(Superseded to 5020863SM)

$3.49

$

Usually ships in 2-12 days

0

22

Ferris 5025520X3

SHIM
(Superseded to 5025520X3SM)

$4.49

$

Usually ships in 2-12 days

0

23

Ferris 5020876B

BUSHING, BRASS, 3/4 X 1 X 1
(Superseded to 5020876BSM)

$11.99

$

In Stock, only 1 left!

0

24

Ferris 5021103

SPRING-EXT, .750OD X 7.65LG X .115WR
(Superseded to 5021103SM)

$19.99

$

Usually ships in 2-12 days

0

25

EYEBOLT

$

$

Not available

26

Ferris 5041478

SPINDLE PULLEY

$106.99

$

Usually ships in 2-12 days

0

27

Ferris 1705897

BEARING, BALL 11/16X1-9/16X15/32
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

28

Ferris 5030293

Housing, Spindle

$

$

Not available

29

Ferris 5020870

INSERT, Bearing
(Superseded to 5020870SM)

$5.49

$

In Stock, Qty 12

0

30

Ferris 5041622

IDLER ARM

$

$

Not available

31

Ferris 5020841X1

Latch, Rubber
(Superseded to 5020841X1SM)

$23.99

$

Usually ships in 2-12 days

0

32

Ferris 30381

61" MOWER HOUSING (4 Bolt)

$

$

Currently unavailable

32

Ferris 30405

48" MOWER HOUSING

$

$

Currently unavailable

33

Ferris 5020785

ROLLER, DECK
(Superseded to 5020785SM)

$29.99

$

In Stock, Qty 20+

0

34

Ferris 5041655A

USE 5105755 - WELD, BRKT,ROLLER PIN,BLK
(Superseded to 5105755)

Note: SECURED W/ 5025013X8 & 5101414

$46.99

$

In Stock, only 2 left!

0

35

Ferris 5020655

PIN, LYNCH, 7/16"
(Superseded to 5020655SM)

$10.99

$

In Stock, only 2 left!

0

36

Ferris 5041476

SPACER, 1.02 x 1.56 x .50
(Superseded to 5041476SM)

$5.49

$

In Stock, only 4 left!

0

37

Ferris 5020822

BUSHING, Flange
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 10

0

38

Ferris 41661

Caster Support

$

$

Currently unavailable

39

Ferris 5020095

GREASE FITTING, 1/4-28 Straight
(Superseded to 5020095SM)

$3.99

$

In Stock, only 2 left!

0

40

Ferris 5041702B

YOKE, Caster

$253.99

$

Usually ships in 2-12 days

0

41

Ferris 5041657

AXLE, Caster Wheel
(Superseded to 5041657SM)

$13.99

$

Usually ships in 2-12 days

0

42

1/2-13 x 5-1/2" Bolt

$

$

Not available

43

Ferris 5021147

Caster Assembly
(Superseded to 5021147FS)

$210.99

$

Usually ships in 2-12 days

0

44

Ferris 5041703B

Caster Mount Spacer

Note: (48" Deck Only)

$19.99

$

Usually ships in 2-12 days

0

45

Ferris 5021043

RETAINER, BEARING (TWO PER TIRE)(SV)

Note: (2 per tire)

$6.99

$

Usually ships in 2-12 days

0

46

Ferris 5021182

BEARING, ROLLER 3/4" ID X 3.25" (ONE PER TIRE)(SV)

Note: (1 per tire)

$

$

Currently unavailable

47

Ferris 5050407X9

Key, 1/4" Sq. x 2-1/2"
(Superseded to 5050407X20SM)

$5.99

$

In Stock, only 1 left!

0

48

Ferris 5030301

SPINDLE ASSEMBLY, Complete
(Superseded to 5061033SM)

$269.99

$

Usually ships in 2-12 days

0

49

Ferris 5020828

BEARING
(Superseded to 5020828SM)

$36.99

$

In Stock, only 2 left!

0

50

Ferris 5020842S

BLADE SET, 61 DECK (SET OF 3 BLADES)

$

$

Currently unavailable

50

Ferris 5020843S

BLADE SET, 48 DECK (SET OF 3 BLADES)

$

$

Currently unavailable

51

5/8 Washer

$

$

Not available

52

Ferris 5025019X76

Bolt, 5/8-11 x 9-1/2 GD.5 Plain
(Superseded to 5025019X76SM)

$15.99

$

Usually ships in 2-12 days

0

53

Ferris 5020864

SNAP RING, EXTERNAL, 1 SHAFT

$3.99

$

Usually ships in 2-12 days

0

54

Ferris 5020866

SNAP RING, Internal
(Superseded to 5020866SM)

$5.99

$

In Stock, only 2 left!

0

55

Ferris 5041653

SPINDLE WASHER, Top

$10.99

$

Usually ships in 2-12 days

0

56

Ferris 5041481

PULLEY, Idler
(Superseded to 5041481FS)

$98.99

$

Usually ships in 2-12 days

0

57

Ferris 5042142B

SPRING ANCHOR
(Superseded to 5042142BFS)

$12.99

$

Usually ships in 2-12 days

0

57

Ferris 5042336

Spring Anchor

Note: (48" deck)

$

$

Currently unavailable
