G 1752 (55AE224T150) - Cub Cadet Walk-Behind Mower Tank Assembly Parts Diagram

Walk-Behind Mower

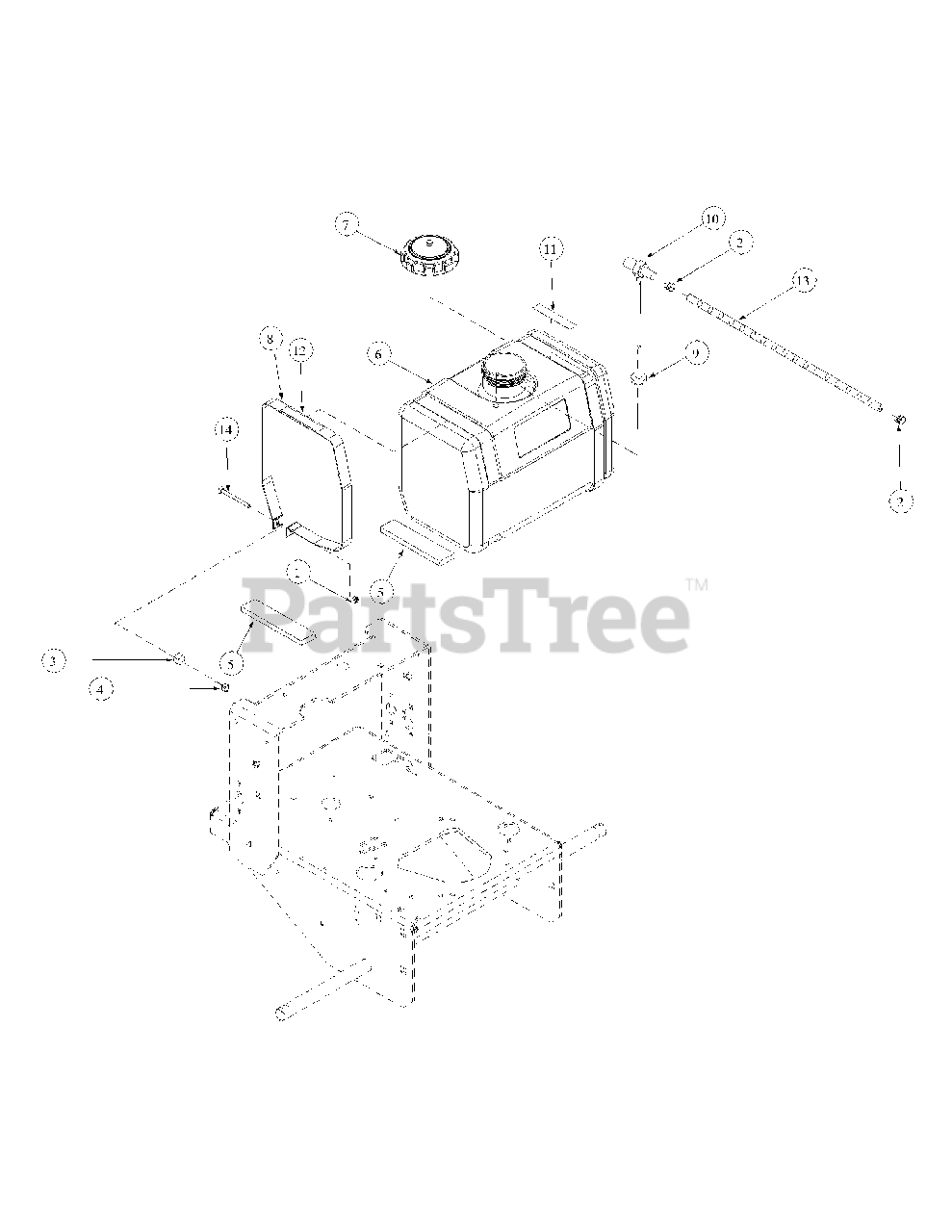

Tank Assembly Parts Diagram

  • Title

1

Cub Cadet 00012152

Lock Nut, Nylon Insert, 1/4-20

$4.49

$

In Stock, only 1 left!

0

2

Cub Cadet 00012235

Uni-Clamp
(Superseded to 726-04123A)

$3.99

$

In Stock, Qty 6

0

3

Cub Cadet 00021941

Spacer

$

$

Not available

4

Cub Cadet 00013291

Nut, 1/4-20

$2.99

$

In Stock, only 3 left!

0

5

Cub Cadet 00021407

Rubber Stop Pad

$6.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 01008857

Fuel Tank

$

$

Not available

7

Cub Cadet 951-3124E

Fuel Cap, 3.5

$36.99

$

In Stock, only 1 left!

0

8

Cub Cadet 01001023

Fuel Tank Strap

$56.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 02002253

Grommet Fuel Tank

$4.99

$

In Stock, only 1 left!

0

10

Cub Cadet 01007425

Shut Off Fuel Tank
(Superseded to 751-12478)

$52.99

$

In Stock, only 2 left!

0

11

Cub Cadet 01001036

Label, Mower Warning Turn Off Engine

$

$

Not available

12

Cub Cadet 01001038

Label, Mower Instruction, Fuel Valve

$

$

Not available

13

Cub Cadet n/a

Hose Fuel, 22" x .25 ID

Note: (Purchase locally)

$

$

Currently unavailable

14

Cub Cadet 01002509

Carriage Bolt, 1/4-20 x 3.00

$3.99

$

Usually ships in 3-6 days

0
