G 1752 (55AE224T150) - Cub Cadet Walk-Behind Mower FH500V-AS02 Air Filter & Muffler Parts Diagram

Walk-Behind Mower

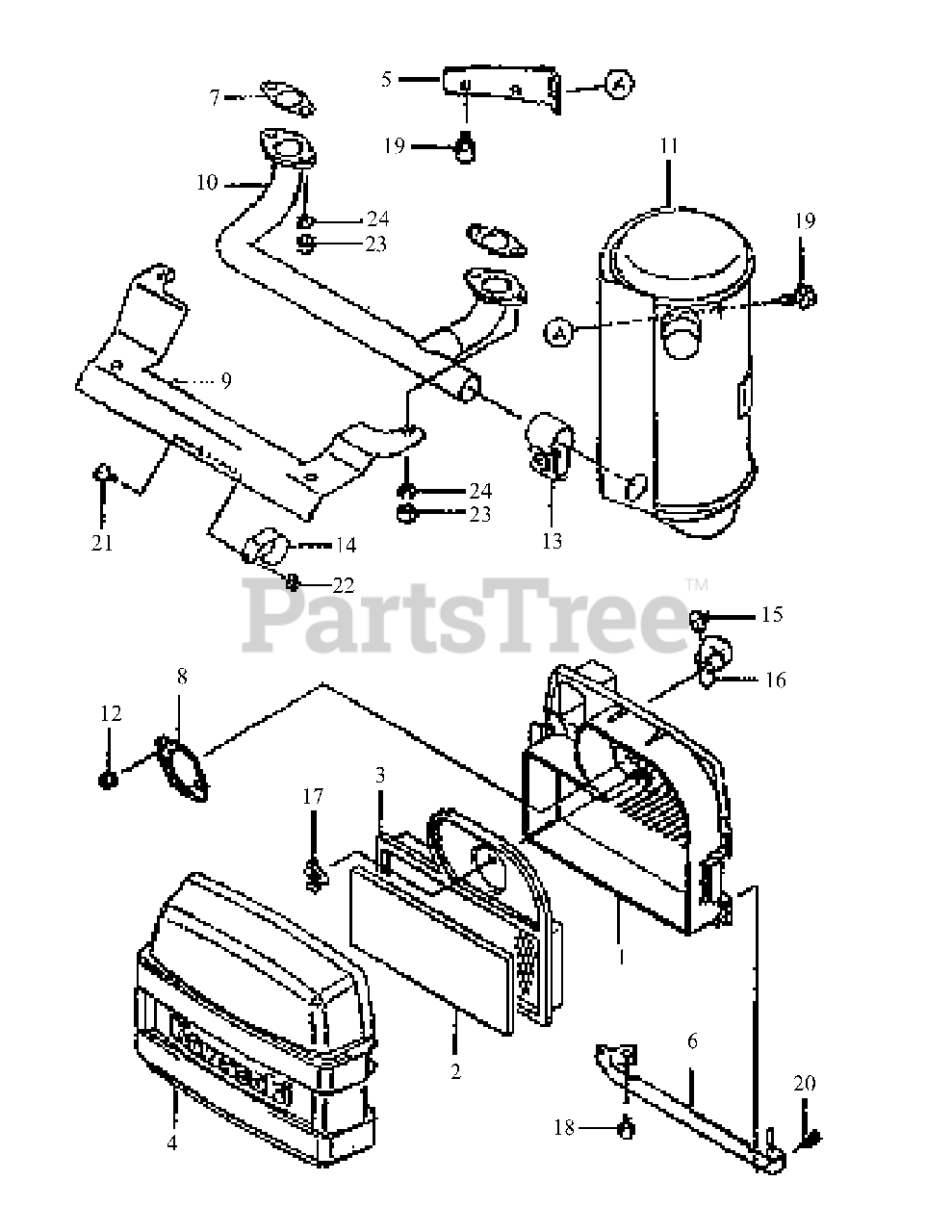

FH500V-AS02 Air Filter & Muffler Parts Diagram

  • Title

1

Cub Cadet KM-11038-7006

Case, Air Filter

$70.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KM-11013-7033

Element, Pre Cleaner

$5.99

$

In Stock, Qty 20+

0

3

Cub Cadet KM-11013-7002

Element, Air Filter

$21.99

$

In Stock, Qty 20+

0

4

Cub Cadet KM-11038-7013

Case, Air Filter

$67.99

$

In Stock, only 4 left!

0

5

Cub Cadet KM-1105170059H

Bracket

$

$

Not available

6

Cub Cadet KM-11050-7006

Bracket

$9.49

$

Usually ships in 2-5 days

0

7

Cub Cadet KM-11060-7021

Gasket, Muffler

$2.49

$

In Stock, Qty 20+

0

8

Cub Cadet KM-13270-7001

Plate

$5.49

$

In Stock, only 2 left!

0

9

Cub Cadet KM-13270-7008

Plate

$17.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KM-18049-7001

Pipe, Exhaust

$139.99

$

Usually ships in 2-5 days

0

11

Cub Cadet KM-49070-6001

Muffler

$147.99

$

In Stock, Qty 7

0

12

Cub Cadet KM-92015-1367

Nut

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet KM-92072-7012

Band

$14.99

$

In Stock, Qty 9

0

14

Cub Cadet KM-92170-7002

Clamp

$3.99

$

In Stock, only 2 left!

0

15

Cub Cadet KM-92170-7003

Clamp

$1.49

$

In Stock, Qty 20+

0

16

Cub Cadet KM-92191-7001

Tube

$

$

Not available

17

Cub Cadet KM-92210-7004

Nut

$3.49

$

In Stock, Qty 20+

0

18

Cub Cadet KM-130BA0612

Bolt, Flange

$1.99

$

In Stock, Qty 20+

0

19

Cub Cadet KM-130BA0816

Bolt, Flange

$1.99

$

In Stock, only 4 left!

0

20

Cub Cadet KM-232B0514

Screw
(Superseded to KM-232AA0514)

$0.99

$

In Stock, only 3 left!

0

21

Cub Cadet KM-233B0416

Screw

$

$

Not available

22

Cub Cadet KM-311AA0400

Nut, Hex

$0.99

$

In Stock, Qty 10

0

23

Cub Cadet KM-317R0800

Nut, Hex

$2.99

$

In Stock, Qty 16

0

24

Cub Cadet KM-461DA0800

Washer, Spring

$0.99

$

In Stock, Qty 20+

0
