G 1548 (55AI5GMS050) - Cub Cadet Walk-Behind Mower Deck Assembly 48-Inch Parts Diagram

Walk-Behind Mower

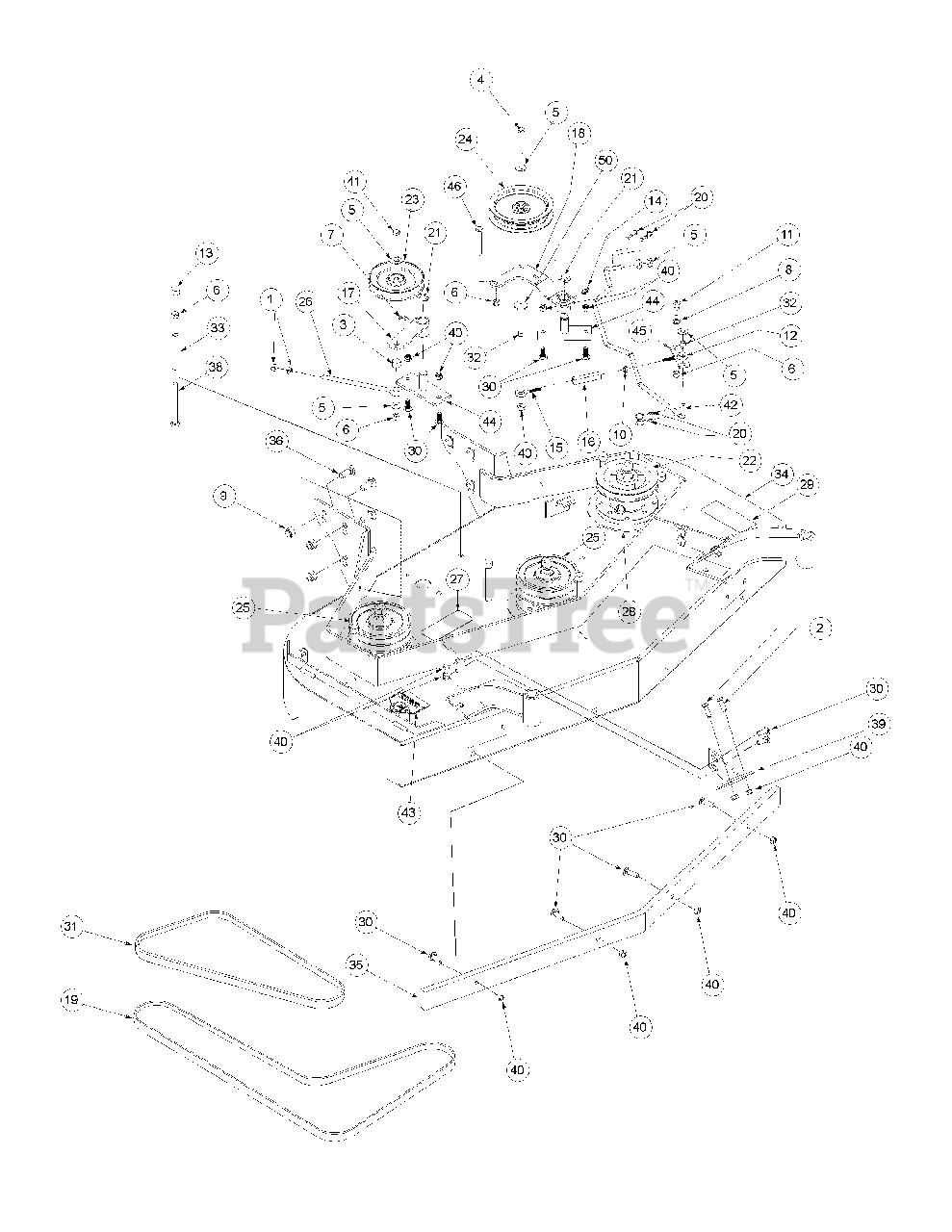

Deck Assembly 48-Inch Parts Diagram

  • Title

1

Cub Cadet 912-3017

Hex Nut, 3/8-16
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 710-0514

Hex Cap Screw, 3/8-16, 1

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 00024172

Sleeve Tensioner

$

$

Not available

4

Cub Cadet 936-0133

Washer, 1.25 x .411 x .100
(Superseded to 736-0133)

$

$

Not available

5

Cub Cadet 00012158

Flat Washer, 3/8 Zinc

$4.49

$

In Stock, Qty 9

0

6

Cub Cadet 712-04065

Lock Nut, Nylon Insert, 3/8-16

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 737-3004

Grease Fitting, 1/4-28, 90°

$11.99

$

In Stock, only 4 left!

0

8

Cub Cadet 00012402

Shim Washer

$

$

Not available

9

Cub Cadet 01010119

Nut, Flange Lock, 1/2-13

$7.49

$

In Stock, only 2 left!

0

10

Cub Cadet 00013433

Hex Nut, 5/16-18

$3.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 00014439

Shoulder Bolt

$

$

Not available

12

Cub Cadet 00014459

Eye Bolt, Right Hand

$11.99

$

In Stock, only 3 left!

0

13

Cub Cadet 00018468

Vinyl Cap

$

$

Not available

14

Cub Cadet 00021958

Grease Fitting, 45°, 1/4-28

$5.49

$

In Stock, only 4 left!

0

15

Cub Cadet 00019271

Eye Bolt, Left Hand

$14.99

$

In Stock, only 3 left!

0

16

Cub Cadet 00019554

Turnbuckle

$32.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 00021893

Idler Arm "B"

$117.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 741-04333

Bearing

$10.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 00021895

Idler Arm "A"

$170.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 741-04333

Bearing

$10.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 00021947

Drive Belt

$75.99

$

In Stock, only 1 left!

0

20

Cub Cadet 00021956

Hair Pin, 3/8"-1/2"
(Superseded to 914-04023)

$4.49

$

In Stock, only 4 left!

0

21

Cub Cadet 00021961

E-Ring

$11.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 01007499

Deck Pulley

$168.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 00021975

Idler Pulley

$74.99

$

In Stock, only 1 left!

0

24

Cub Cadet 00021977

Idler Deck Take-up

$66.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 01007528P

Double Pulley

$

$

Not available

26

Cub Cadet 00030335

Rod Belt Tensioner

$24.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 00030633

Decal Rotating Blade

$

$

Not available

28

Cub Cadet 01000150-0637

Spindle Backing Plate

$

$

Not available

29

Cub Cadet 00030635

Decal Warning Shield Missing
(Superseded to 777S33782)

$7.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 710-3168

Carriage Screw, 3/8-16 x 1.00

$3.99

$

In Stock, Qty 20+

0

31

Cub Cadet 00050480

Drive Belt

$52.99

$

In Stock, only 1 left!

0

32

Cub Cadet 00062715

Sleve Turnbuckle

$18.99

$

In Stock, only 1 left!

0

33

Cub Cadet 01000160

Spacer Belt Guide

$

$

Not available

34

Cub Cadet 01000233

Deck Weldment Mower

Variations

Cub Cadet 01000233-0637

DECK ASSY - 48" WB - POWDER BLACK (0637)

$

$

Not available

$

$

35

Cub Cadet 01000235-0637

Bumper 48"

$

$

Not available

36

Cub Cadet 01000517

Carriage Bolt, 1/2-13 x 1-1/4
(Superseded to 710-05375)

$6.49

$

Usually ships in 3-6 days

0

37

Cub Cadet 710-3022

Hex Cap Screw, 3/8-16, 2.75

$4.99

$

In Stock, Qty 7

0

38

Cub Cadet 01000644

Carriage Bolt, 3/8-16 x 4-1/2

$

$

Not available

39

Cub Cadet 01001097-0637

Caster Support Assembly

$

$

Not available

40

Cub Cadet 712-04065

Hex Nut Flange Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

41

Cub Cadet 01001366

Hex Cap Screw, 3/8-16, 2.25

$

$

Not available

42

Cub Cadet 01002103

Rod Clutch Link

$

$

Not available

43

Cub Cadet 01002166

Decal, Danger Hands and Feet

$12.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 00063043

Idler Base

$55.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 01003153-0637

Clutch Link

$14.99

$

In Stock, only 2 left!

0
