G 1548 (55AE232S750) - Cub Cadet Walk-Behind Mower Kawasaki Kai Engine Assembly 15HP Parts Diagram

Walk-Behind Mower

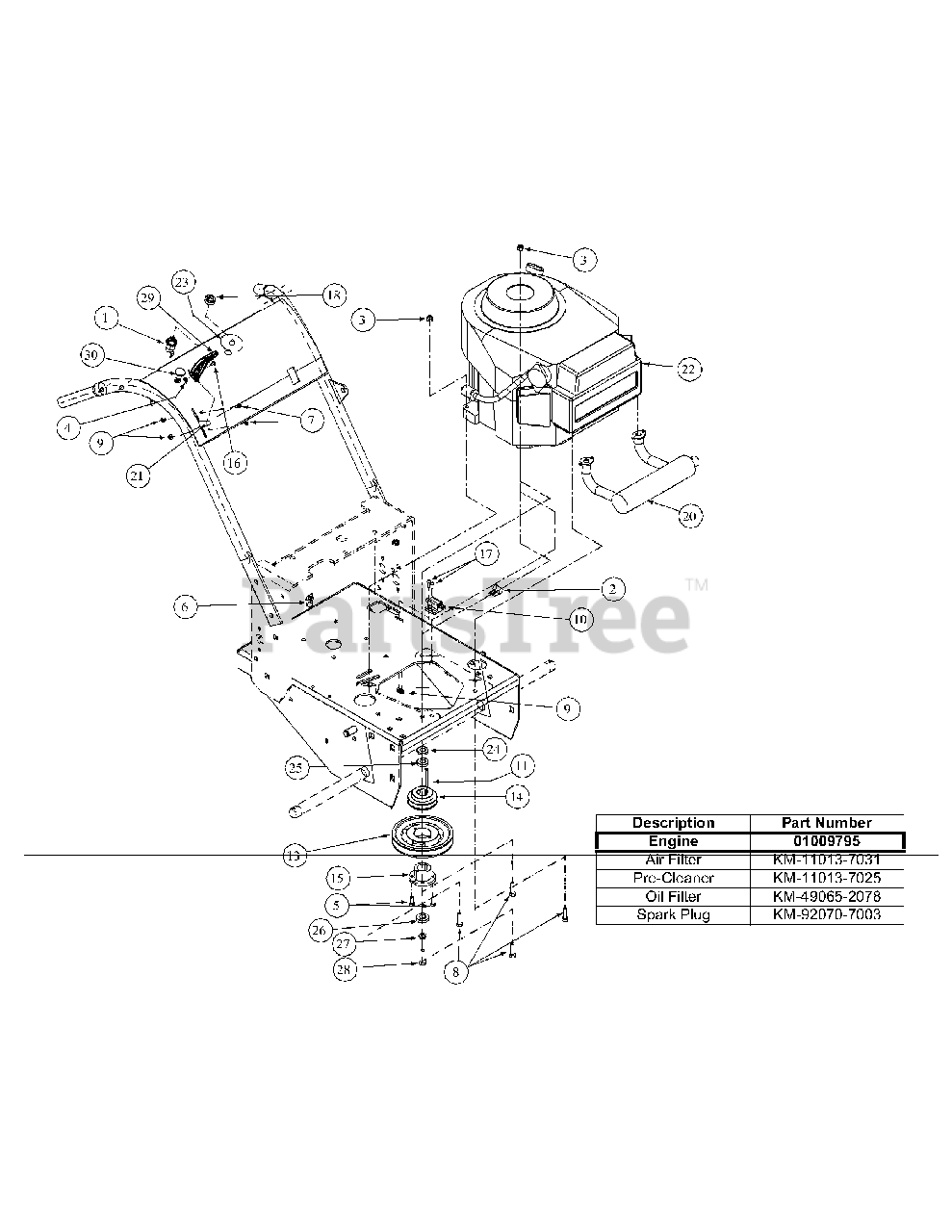

Kawasaki Kai Engine Assembly 15HP Parts Diagram

  • Title

1

Cub Cadet 00010943P

Single Ignition ON/OFF Switch

$

$

Not available

1

Cub Cadet 01010141P

Ignition ON/OFF Switch

$

$

Not available

2

Cub Cadet 00031081

Support Clamp

$6.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 00012165

Nut, 5/16-18 Nylock

$4.99

$

In Stock, only 1 left!

0

4

Cub Cadet 00060056

Nut, 8-32, w/ star washer

$6.99

$

In Stock, only 1 left!

0

5

Cub Cadet 00013131

Hex Cap Screw, 1/4-20, .75

$6.49

$

In Stock, only 1 left!

0

6

Cub Cadet 00060807

Support Clamp

$

$

Not available

7

Cub Cadet 00013669

Screw, Hex Washer, 10-32 x 1/2

$2.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 00013198

Cap Screw, 5/16-18 x 2
(Superseded to 710-3103)

$4.49

$

In Stock, only 4 left!

0

9

Cub Cadet 00014608

Lock Nut, Nylon Insert, 10-32
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0

10

Cub Cadet 00018324

Delta Switch

$

$

Not available

11

Cub Cadet 01007533

Key Stock, 1/4 x 1/4 x 2-3/4

$11.99

$

In Stock, only 1 left!

0

12

Cub Cadet 00021521

Harness Wire

$

$

Not available

12

Cub Cadet 02000048

Harness Wire

$

$

Not available

13

Cub Cadet 00021970

Deck Pulley

$112.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 00021972

Traction Drive Pulley

$

$

Not available

15

Cub Cadet 00021973

Bushing Type D

$

$

Not available

16

Cub Cadet 710-3217

Machine Screw, 8-32

$6.99

$

In Stock, Qty 7

0

17

Cub Cadet 00030906

Machine Screw, 10-32 x 5/8

$6.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 00032097

Nut, w/Cap, 5/8-32, Ignition
(Superseded to 00032097P)

$

$

Not available

19

Cub Cadet 01000194

Belt Transmission Drive
(Superseded to 01000194P)

$54.99

$

In Stock, only 1 left!

0

20

Cub Cadet 01009792

Muffler

$

$

Not available

21

Cub Cadet 01003273P

Throttle Control, w/Detent, 47.25

$

$

Not available

22

Cub Cadet 01009795P

Engine, 15HP Kawasaki Kai

$

$

Not available

23

Cub Cadet 01002006

Decal, Pull Start Overlay

$

$

Not available

24

Cub Cadet 00073094

Engine Pulley Spacer, 12.5 Vanguard

$14.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 00072586

Flat Washer
(Superseded to 736-0250)

$4.49

$

In Stock, only 2 left!

0

26

Cub Cadet 00013675

Clutch Washer

$9.49

$

Usually ships in 3-6 days

0

27

Cub Cadet 00012195

Lock Washer, 7/16

$

$

Not available

28

Cub Cadet 01002885

Capscrew, M10 x 1.5

$

$

Not available

29

Cub Cadet 731-04914

Throttle Control Knob

$13.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 02003479P

Choke Cable

$42.99

$

In Stock, only 1 left!

0

Cub Cadet 01009795P

Engine

$

$

Not available

Cub Cadet KM-11013-7031

Air Filter

$26.99

$

In Stock, Qty 8

0

Cub Cadet KM-11013-7025

Pre-Cleaner

$6.99

$

In Stock, only 4 left!

0

Cub Cadet KM-49065-7010

Oil Filter
(Superseded to KM-49065-0724)

$18.99

$

In Stock, Qty 20+

0

Cub Cadet TC-611049

Spark Plug

$4.99

$

In Stock, Qty 20+

0
