G 1548 (55AE232S750) - Cub Cadet Walk-Behind Mower FH430V-AS22 Cylinder & Crankcase Parts Diagram

Walk-Behind Mower

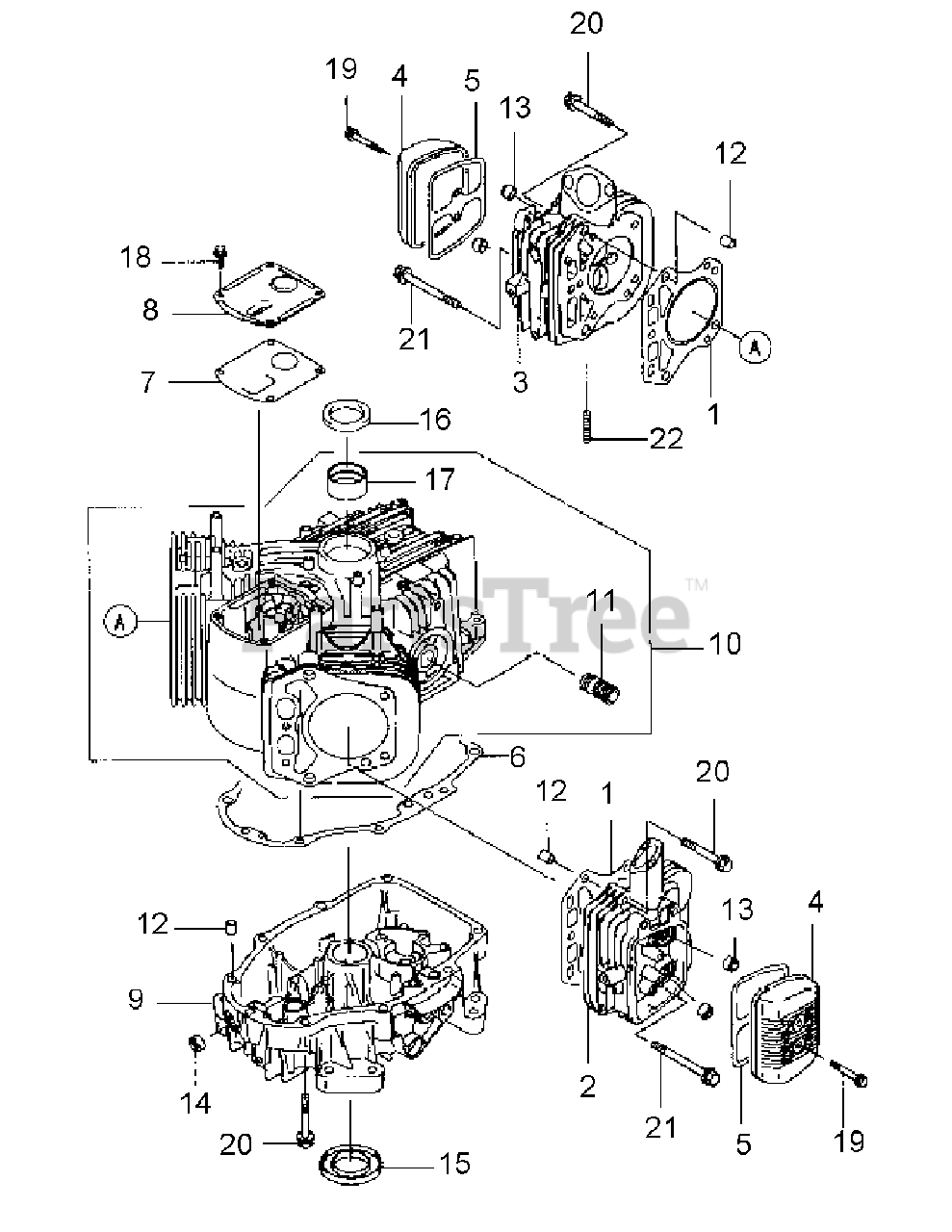

FH430V-AS22 Cylinder & Crankcase Parts Diagram

  • Title

1

Cub Cadet KM-11004-7018

GASKET-HEAD

$12.99

$

In Stock, Qty 16

0

2

Cub Cadet KM-11008-7021

HEAD-COMP-CYLINDER, #2

$234.99

$

In Stock, only 1 left!

0

3

Cub Cadet KM-11008-7022

HEAD-COMP-CYLINDER, #1

$233.99

$

In Stock, Qty 6

0

4

Cub Cadet KM-11022-7003

CASE-ROCKER

$14.99

$

In Stock, only 3 left!

0

5

Cub Cadet KM-11060-7001

GASKET, ROCKER CASE

$6.99

$

In Stock, Qty 20+

0

6

Cub Cadet KM-11061-7007

GASKET,

$13.99

$

In Stock, Qty 13

0

7

Cub Cadet KM-11061-7008

GASKET, BREATHER
(Superseded to KM-99996-6099)

$11.99

$

In Stock, Qty 8

0

8

Cub Cadet KM-14091-7007

COVER

$8.49

$

Usually ships in 2-5 days

0

9

Cub Cadet KM-49015-7032

COVER-CRANKCASE
(Superseded to KM-49015-7080)

$173.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KM-49120-7015

CRANKCASE-COMP

$549.99

$

In Stock, only 1 left!

0

11

Cub Cadet KM-59071-2079

JOINT

$6.49

$

In Stock, Qty 8

0

12

Cub Cadet KM-92043-7001

PIN

$0.99

$

In Stock, Qty 20+

0

13

Cub Cadet KM-92049-7001

SEAL-OIL,RVC2 6X11X10.2

$8.49

$

Usually ships in 2-5 days

0

14

Cub Cadet KM-92049-7019

SEAL-OIL,SO 8X14X5 HS

$2.49

$

In Stock, Qty 20+

0

15

Cub Cadet KM-92049-7015

SEAL-OIL,SD 35X62X8 L HS

$8.49

$

In Stock, Qty 20+

0

16

Cub Cadet KM-92049-7016

SEAL-OIL, SD 35X48X8 R HS

$5.99

$

In Stock, Qty 20+

0

17

Cub Cadet KM-92139-7002

BUSHING
(Superseded to KM-92139-7008)

$13.99

$

In Stock, Qty 12

0

18

Cub Cadet KM-130BA0612

BOLT-FLANGED

$1.99

$

In Stock, Qty 20+

0

19

Cub Cadet KM-130BA0640

BOLT-FLANGED

$1.49

$

In Stock, only 3 left!

0

20

Cub Cadet KM-130CA0850

BOLT-FLANGED

$1.99

$

In Stock, Qty 16

0

21

Cub Cadet KM-130CA0875

BOLT-FLANGED

$2.49

$

In Stock, Qty 9

0

22

Cub Cadet KM-172BA0818

BOLT-STUD

$1.99

$

In Stock, Qty 20+

0

Cub Cadet 01009795P

Replacement Engine

Note: (not shown)

$

$

Not available
