G 1548 (55AE232S750) - Cub Cadet Walk-Behind Mower Chute Assembly Parts Diagram

Walk-Behind Mower

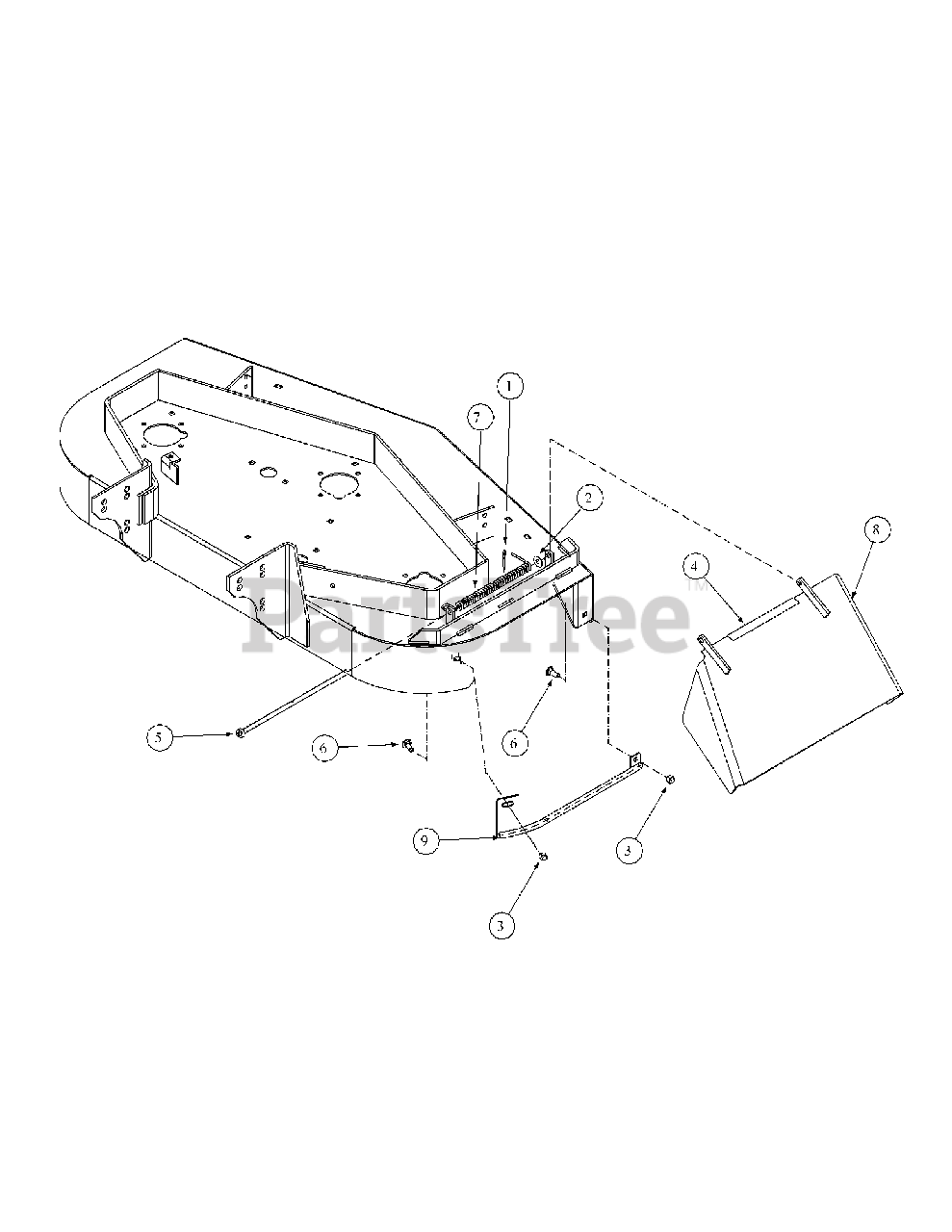

Chute Assembly Parts Diagram

  • Title
1

Cub Cadet 00003107

Cotter Pin, 5/32 x 1-1/2 Zinc
(Superseded to 914-0115)

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 00012158

Flat Washer, 3/8 Zinc

$4.49

$

In Stock, Qty 9

0

3

Cub Cadet 712-04065

Lock Nut, Nylon Insert, 3/8-16

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 00013597

Decal, Cut LIne

$

$

Not available

5

Cub Cadet 00030644

Pin Deflector Assembly, Weldment

$110.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 01000643

Carriage Bolt, 3/8-16 x 2

$5.49

$

In Stock, Qty 7

0

7

Cub Cadet 01002037

Torsion Spring

$70.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 01005997

Chute Assembly

$

$

Not available

9

Cub Cadet 01004212-0637

Stiffner Assembly, 48

$64.99

$

Usually ships in 3-6 days

0
