G 1548 (55AE232S750) - Cub Cadet Walk-Behind Mower Brake Assembly Narrow Track Parts Diagram

Walk-Behind Mower

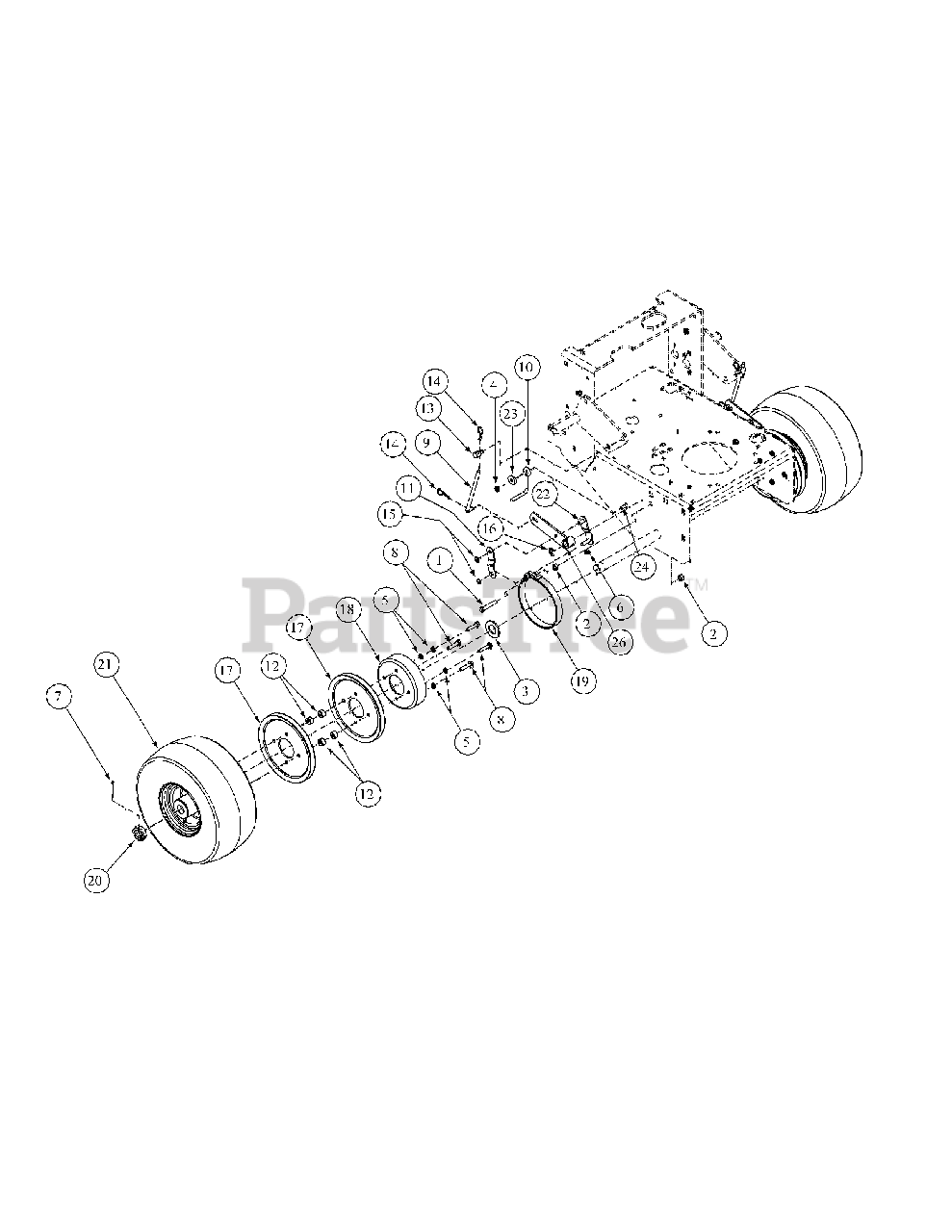

Brake Assembly Narrow Track Parts Diagram

  • Title
1

Cub Cadet 00002528

Hex Cap Screw, 3/8-16, 2.00

$6.99

$

In Stock, Qty 7

0

2

Cub Cadet 912-3017

Hex Nut, 3/8-16
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 00010869

Flat Washer, 2.000 x 1.005 x .120

$

$

Not available

4

Cub Cadet 00012165

Nut, Nylock, 5/16-18

$4.99

$

In Stock, only 1 left!

0

5

Cub Cadet 00012168

Lock Washer, 5/16 Zinc

$

$

Not available

6

Cub Cadet 737-3004

Grease Fitting, 1/4-28, 90°

$11.99

$

In Stock, only 4 left!

0

7

Cub Cadet 00012380

Cotter Pin, 5/32 x 1-1/2 Zinc

$

$

Not available

8

Cub Cadet 00012382

Hex Cap Screw, 5/16-18 x 1-1/2

$

$

Not available

9

Cub Cadet 00021930

Brake Rod

$

$

Not available

10

Cub Cadet 01005114

Drive Belt Guide

$13.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 00067444

Brake, Bracket Link

$

$

Not available

12

Cub Cadet 00021941

Drive Wheel Pulley Spacer

$

$

Not available

13

Cub Cadet 00021943

Swivel Joint

$20.99

$

In Stock, only 1 left!

0

14

Cub Cadet 00021956

Hair Pin, 3/8-1/2
(Superseded to 914-04023)

$4.49

$

In Stock, only 4 left!

0

15

Cub Cadet 00021960

Retainer, Push ON, 3/8

$5.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 00021962

E-Ring, 5/8

$

$

Not available

17

Cub Cadet 00021979

Drive Pulley, V

$48.99

$

In Stock, only 4 left!

0

18

Cub Cadet 00021980

Drum Brake

$45.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 761-04077

Band Brake

$92.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 00021984

Hex Jam Nut, 1-14

$

$

Not available

21

Cub Cadet 00030757

Wheel Assembly, 13 x 5.00-6

$

$

Not available

22

Cub Cadet 00021933

Brake Link

$54.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 00083192

Idler Washer
(Superseded to 736-0258)

$4.49

$

In Stock, only 4 left!

0

24

Cub Cadet 01000641

Carriage Bolt, 5/16-18 x 1

$3.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 01009216

Brake Lever Weldment

$

$

Not available
