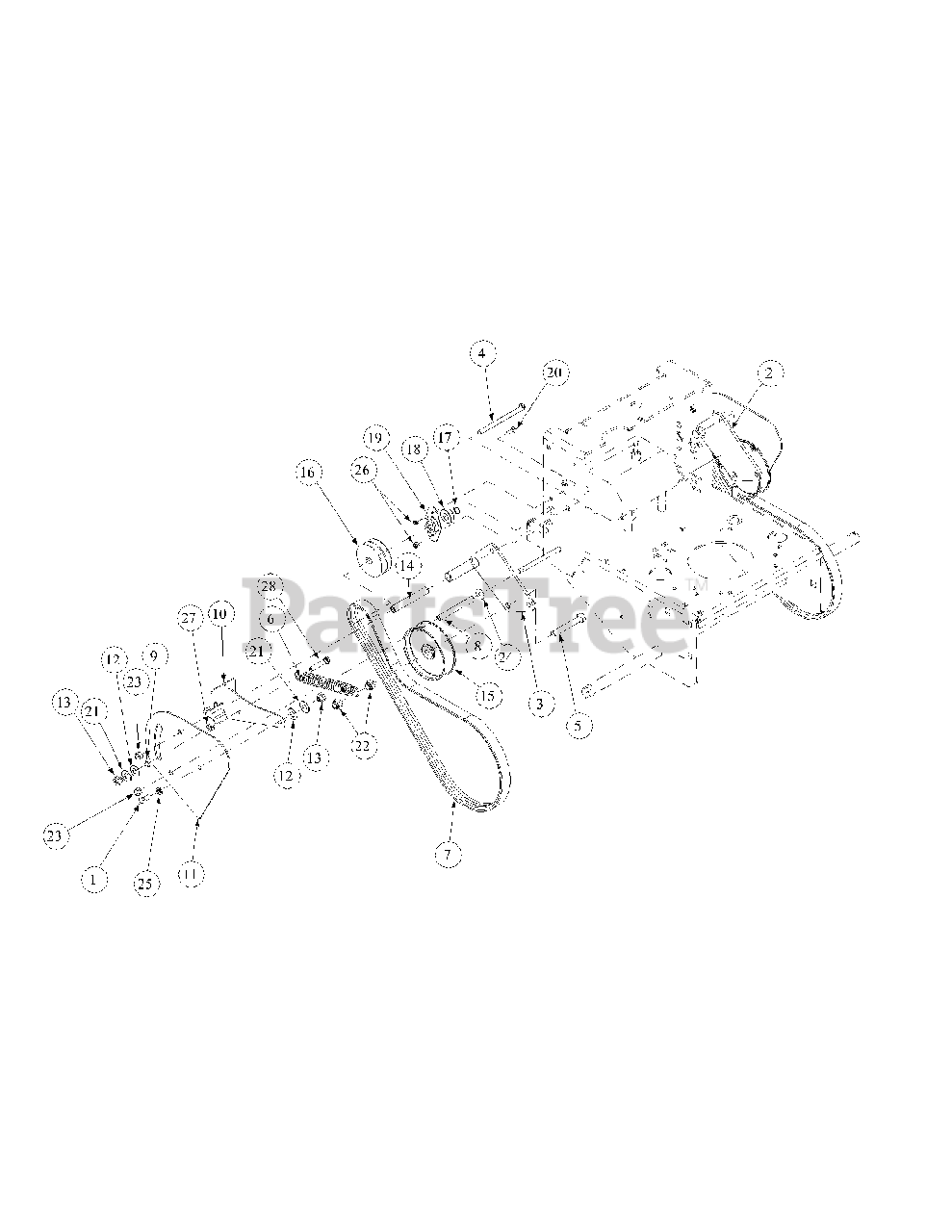

G 1436 (55AE231R150) - Cub Cadet Walk-Behind Mower Vari-Touch Drive Assembly Parts Diagram

Walk-Behind Mower

Vari-Touch Drive Assembly Parts Diagram

  • Title
1

Cub Cadet 01002554

Hex Cap Screw, 3/8-16, .875

$

$

Not available

2

Cub Cadet 01001011-0637

Left Idler Bracket

$

$

Not available

3

Cub Cadet 01001009-0637

Right Idler Bracket

$

$

Not available

4

Cub Cadet 01000642

Carriage Bolt, 3/8-16 x 5.50

$18.99

$

In Stock, only 3 left!

0

5

Cub Cadet 01000226

Hex Cap Screw, 1/2-13, 3.50

$

$

Not available

6

Cub Cadet 01000199

Extension Spring

$17.99

$

In Stock, only 4 left!

0

7

$64.99

$

In Stock, only 1 left!

0

8

Cub Cadet 01000130

Spacer Tube

$

$

Not available

9

Cub Cadet 01000117

Roller Tube

$

$

Not available

10

Cub Cadet 01000110-0637

Spring Position Adjuster

$

$

Not available

11

$

$

Not available

12

Cub Cadet 01000101

Slide Washer
(Superseded to 936-0414)

$

$

Not available

13

Cub Cadet 01000100

Shoulder Nut

$

$

Not available

14

Cub Cadet 00036665

Idler Sleeve

$

$

Not available

15

Cub Cadet 00021976

Flat Idler Drive

$

$

Not available

16

Cub Cadet 00021969

Jackshaft Pulley

$

$

Not available

17

Cub Cadet 00021964

External Retain Ring

$

$

Not available

18

$23.99

$

In Stock, Qty 15

0

19

Cub Cadet 02000487

Bearing Housing
(Superseded to 741-04566)

$15.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 00017584

Carriage Bolt, 1/4-20 x .750

$

$

Not available

21

Cub Cadet 936-0160

Flat Washer, .536 ID x .930 OD x .05

$4.49

$

In Stock, Qty 9

0

22

Cub Cadet 00012428

Lock Nut, Nylon Insert, 1/2-13

$6.99

$

In Stock, only 2 left!

0

23

Cub Cadet 712-04065

Lock Nut, Nylon Insert, 3/8-16

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 00012158

Flat Washer, 3/8 Zinc

$4.49

$

In Stock, Qty 9

0

25

Cub Cadet 936-0169

Lock Washer, 3/8 Zinc
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 00012152

Lock Nut, Nylon Insert, 1/4-20

$4.49

$

In Stock, only 1 left!

0

27

Cub Cadet 912-3017

Hex Nut, 3/8-16
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 00002528

Hex Cap Screw, 3/8-16, 2.00

$6.99

$

In Stock, Qty 7

0
