G 1436 (55AE231R150) - Cub Cadet Walk-Behind Mower Spindle Assembly Parts Diagram

Walk-Behind Mower

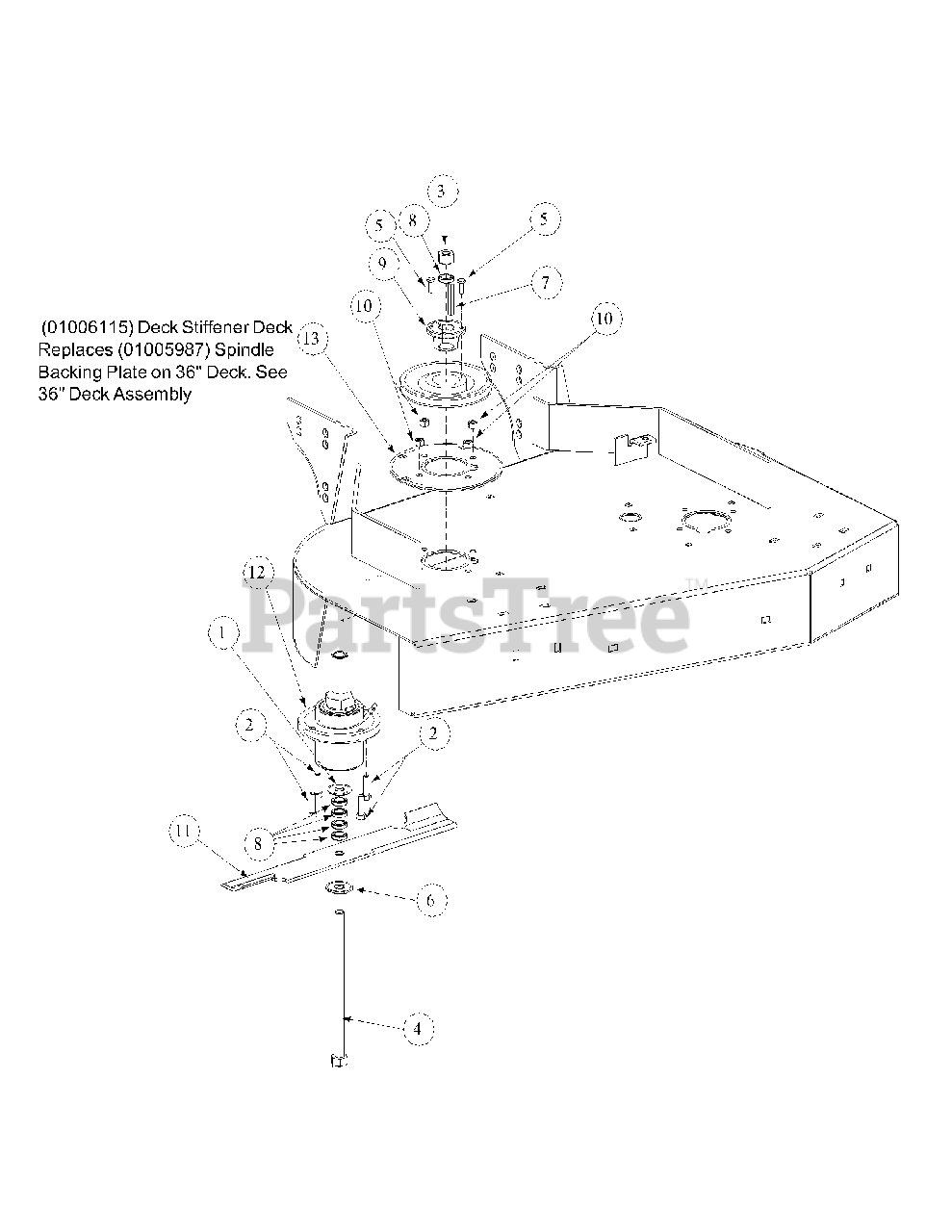

Spindle Assembly Parts Diagram

  • Title

1

Cub Cadet 00002766

Flat Washer, 1-1/2 x 5/8 x .05

$3.49

$

In Stock, only 4 left!

0

2

Cub Cadet 00011444

Hex Cap Screw, 3/8-16 x 1-1/4

$4.49

$

In Stock, Qty 9

0

3

Cub Cadet 00011807

Hex Nut, 5/8-11

$

$

Not available

4

Cub Cadet 00013091

Hex Cap Screw, 5/8-11 x 9-1/2

$

$

Not available

5

Cub Cadet 00013131

Hex Cap Screw, 1/4-20, .75

$6.49

$

In Stock, only 1 left!

0

6

Cub Cadet 00013432

Flat Washer, 5/8 Zinc

$8.49

$

In Stock, Qty 7

0

7

Cub Cadet 00021517

Key Stock, 1/4 x 1/4 x 2

$8.99

$

In Stock, only 1 left!

0

8

Cub Cadet 00021924

Blade Spacer, 5/8 ID, 1/4 Thick

$

$

Not available

9

Cub Cadet 00021973

Bushing

$

$

Not available

10

Cub Cadet 00034224

Lock Nut, 3/8-16

$

$

Not available

11

Cub Cadet 00050125

Blade 18"

$45.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 00057412

Spindle Assembly

Note: NLA

$

$

Not available

13

Cub Cadet 01000150-0637

Plate, Spindle Backing

$

$

Not available

Cub Cadet 01005061-0637

36" Deck Stiffener

Note: (Not shown)

$

$

Not available
