G 1432 (55AD231Q150) - Cub Cadet Walk-Behind Mower FC420V-FS12 Lubrication Equipment Parts Diagram

Walk-Behind Mower

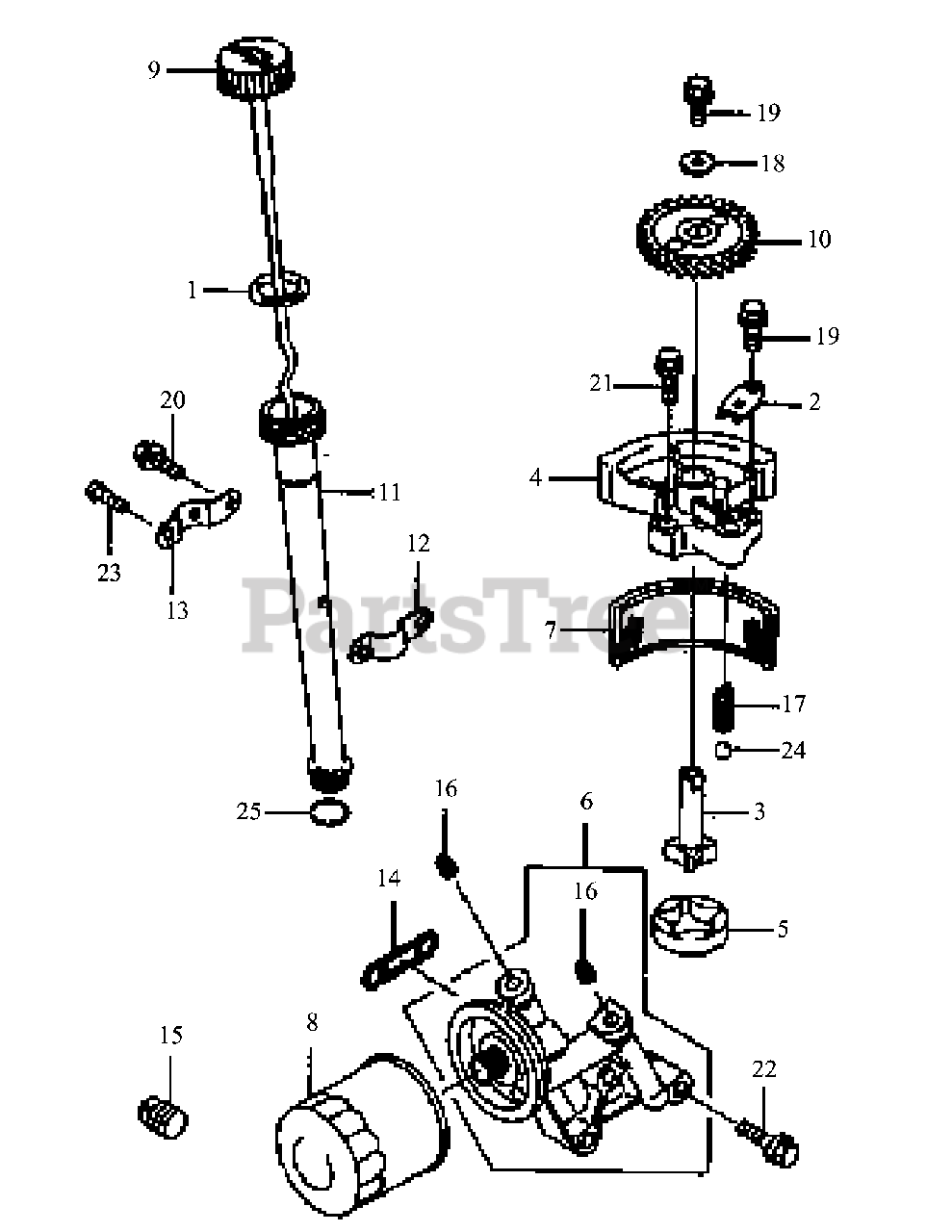

FC420V-FS12 Lubrication Equipment Parts Diagram

  • Title

1

Cub Cadet KM-11009-2346

Gasket, Oil Guage

$2.49

$

In Stock, Qty 6

0

2

Cub Cadet KM-13270-2054

Plate

$0.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KM-16082-2059

Pump, Assembly Oil

$

$

Not available

4

Cub Cadet KM-16142-2068

Cover, Pump

$

$

Not available

5

Cub Cadet KM-16154-2052

Rotor, Pump

$

$

Not available

6

Cub Cadet KM-31064-6001

Pipe, Base

$

$

Not available

7

Cub Cadet KM-49065-2073

Filter, Oil

$

$

Not available

8

Cub Cadet KM-49065-7010

Filter, Oil
(Superseded to KM-49065-0724)

$18.99

$

In Stock, Qty 20+

0

9

Cub Cadet KM-52005-2105

Guage

$

$

Not available

10

Cub Cadet KM-59056-2090

Gear, Helical

$

$

Not available

11

Cub Cadet KM-59231-2062

Filler

$5.99

$

Usually ships in 2-5 days

0

12

Cub Cadet KM-92037-2199

Clamp

$1.99

$

In Stock, only 2 left!

0

13

Cub Cadet KM-92037-2200

Clamp

$1.99

$

In Stock, only 1 left!

0

14

Cub Cadet KM-92055-2188

O-Ring

$

$

Not available

15

Cub Cadet KM-92066-2097

Plug

$3.49

$

In Stock, Qty 11

0

16

Cub Cadet KM-92066-2211

Plug

$2.99

$

Usually ships in 2-5 days

0

17

Cub Cadet KM-92144-2391

Spring

$0.99

$

Usually ships in 2-5 days

0

18

Cub Cadet KM-92200-2035

Washer

$0.99

$

In Stock, Qty 8

0

19

Cub Cadet KM-130BA0610

Bolt, Flange

$1.49

$

In Stock, only 4 left!

0

20

Cub Cadet KM-130B0614

Bolt, Flange

Note: NLA

$

$

Not available

21

Cub Cadet KM-130B0830

Bolt, Flange
(Superseded to KM-130CA0830)

$2.99

$

Usually ships in 2-5 days

0

22

Cub Cadet KM-130B0840

Bolt, Flange
(Superseded to KM-130BA0840)

$2.49

$

In Stock, Qty 7

0

23

Cub Cadet KM-220B0608

Screw

$0.99

$

In Stock, Qty 20+

0

24

Cub Cadet KM-600A1000

Ball, Steel

$0.99

$

In Stock, Qty 7

0

25

Cub Cadet KM-670D2016

O-Ring

$1.99

$

In Stock, Qty 20+

0
