G 1432 (55AD231Q150) - Cub Cadet Walk-Behind Mower FC420V-FS12 Control Equipment Parts Diagram

Walk-Behind Mower

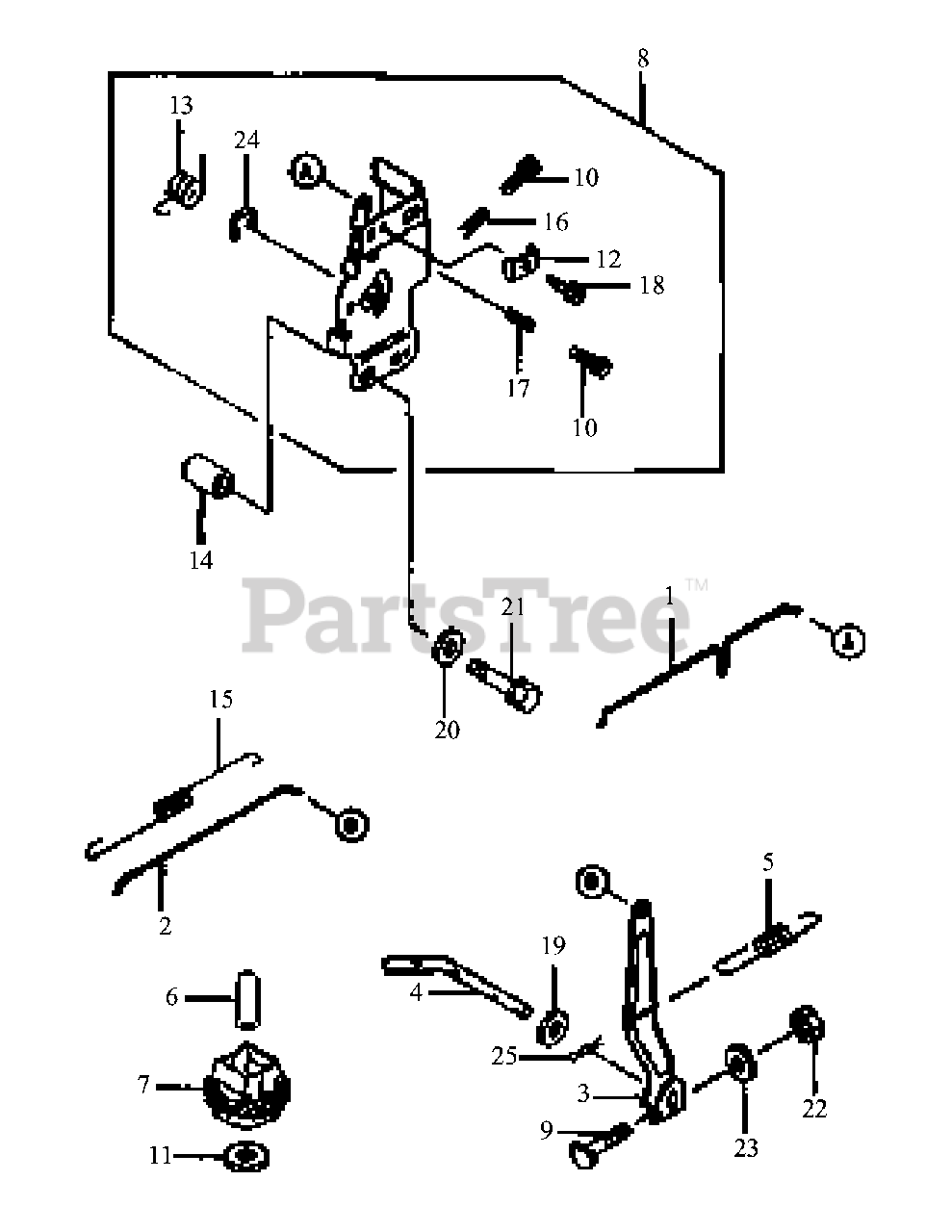

FC420V-FS12 Control Equipment Parts Diagram

  • Title

1

Cub Cadet KM-16169-2130

Link, Choke

$2.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KM-16171-2079

Link, Governor

$0.99

$

In Stock, only 3 left!

0

3

Cub Cadet KM-21187-2055

Arm, Assembly

$

$

Not available

4

Cub Cadet KM-39003-2073

Arm, Pivot

$

$

Not available

5

Cub Cadet KM-39129-2042

Spring, Governor

Note: NLA

$

$

Not available

6

Cub Cadet KM-42036-2060

Sleeve

$4.99

$

In Stock, Qty 11

0

7

Cub Cadet KM-49110-2067

Governor

$

$

Not available

8

Cub Cadet KM-49113-2103

Panel, Control

$

$

Not available

9

Cub Cadet KM-92002-2269

Bolt

$1.99

$

In Stock, Qty 6

0

10

Cub Cadet KM-92009-2113

Screw

Note: NLA

$0.99

$

Usually ships in 2-5 days

0

11

Cub Cadet KM-92200-2036

Spacer

$1.49

$

In Stock, Qty 13

0

12

Cub Cadet KM-92037-2020

Clamp

$1.99

$

Usually ships in 2-5 days

0

13

Cub Cadet KM-92081-2316

Spring

$

$

Not available

14

Cub Cadet KM-92143-2006

Collar

$1.99

$

In Stock, only 4 left!

0

15

Cub Cadet KM-92144-2033

Spring

$

$

Not available

16

Cub Cadet KM-92144-2220

Spring

Note: NLA

$1.49

$

In Stock, only 2 left!

0

17

Cub Cadet KM-92144-2266

Spring

$5.49

$

Usually ships in 2-5 days

0

18

Cub Cadet KM-92150-2182

Bolt, 5x18

$0.99

$

In Stock, Qty 10

0

19

Cub Cadet KM-92200-2029

Washer, 6.5x11.5x2.0

$0.99

$

In Stock, only 2 left!

0

20

Cub Cadet KM-92200-2070

Washer

$1.49

$

In Stock, only 4 left!

0

21

Cub Cadet KM-180B0635

Bolt

$

$

Not available

22

Cub Cadet KM-311AA0600

Nut, Hex

$0.99

$

In Stock, Qty 16

0

23

Cub Cadet KM-411B0600

Washer, Plain
(Superseded to KM-411AA0600)

$4.49

$

In Stock, only 2 left!

0

24

Cub Cadet KM-482L0100

Circlip, Type E

$0.99

$

Usually ships in 2-5 days

0

25

Cub Cadet KM-554A0600

Pin, Snap

$

$

Not available
