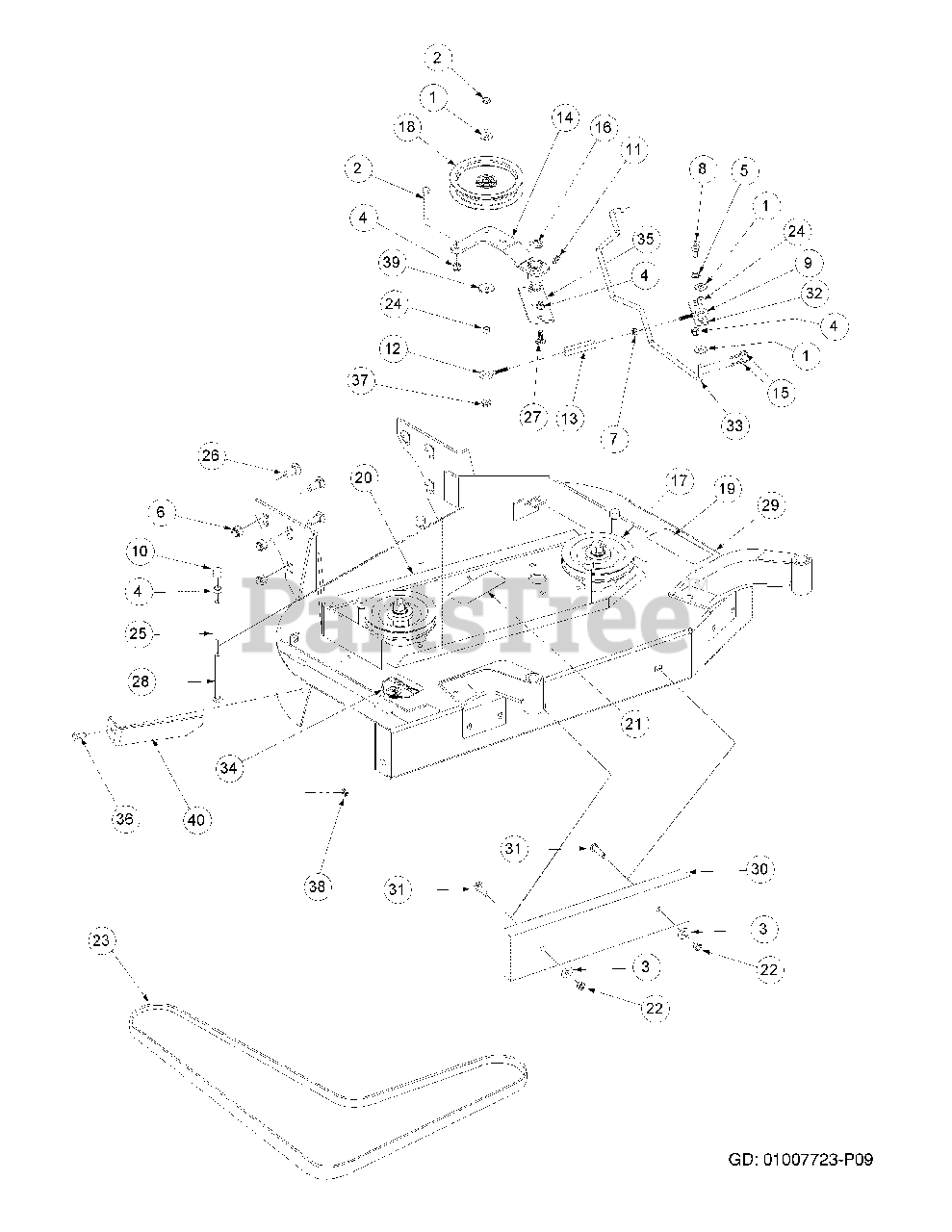

G 1336 (55AI5GMR750) - Cub Cadet Walk-Behind Mower Deck Assembly 36-Inch Parts Diagram

Walk-Behind Mower

Deck Assembly 36-Inch Parts Diagram

  • Title

1

Cub Cadet 00006168

Flat Washer, 3/8 Zinc
(Superseded to 936-3015)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 710-3022

Hex Cap Screw, 3/8-16 x 2.75

$4.99

$

In Stock, Qty 7

0

3

Cub Cadet 00012158

Flat Washer, 3/8 Zinc

$4.49

$

In Stock, Qty 9

0

4

Cub Cadet 712-04065

Lock Nut, Nylon Insert, 3/8-16

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 00012402

Shim Washer

$

$

Not available

6

Cub Cadet 01010119

Nut, Flange Lock, 1/2-13

$7.49

$

In Stock, only 2 left!

0

7

Cub Cadet 00013433

Hex Nut, 5/16-18

$3.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 00014439

Shoulder Bolt

$

$

Not available

9

Cub Cadet 00014459

Eye Bolt, Right Hand

$11.99

$

In Stock, only 3 left!

0

10

Cub Cadet 00018468

Cap, Black Vinyl

$

$

Not available

11

Cub Cadet 00021958

Grease Fitting, 45°, 1/4-28

$5.49

$

In Stock, only 4 left!

0

12

Cub Cadet 00019271

Eye Bolt, Left Hand

$14.99

$

In Stock, only 3 left!

0

13

Cub Cadet 00019554

Turnbuckle

$32.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 00021895

Idler Arm

$170.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 741-04333

Bearing

$10.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 00021956

Hair Pin, 3/8"-1/2"
(Superseded to 914-04023)

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 00021961

E-Ring, Retainer

$11.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 01007499

Pulley Deck

$168.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 00021977

Idler Deck Take-up

$66.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 00030633

Decal Rotating Blade

$

$

Not available

20

Cub Cadet 01005061-0637

Deck Stiffener

$

$

Not available

21

Cub Cadet 00030635

Decal, Warning Shield Missing
(Superseded to 777S33782)

$7.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 00034224

Lock Nut, 3/8-16

$

$

Not available

23

Cub Cadet 00050441

Belt Drive

$59.99

$

In Stock, only 3 left!

0

24

Cub Cadet 00062715

Turnbuckle, Sleeve

$18.99

$

In Stock, only 1 left!

0

25

Cub Cadet 01000160

Spacer, Belt Guide

$

$

Not available

26

Cub Cadet 01000517

Carriage Bolt, 1/2-13 x 1-1/4
(Superseded to 710-05375)

$6.49

$

Usually ships in 3-6 days

0

27

Cub Cadet 01000643

Carriage Bolt, 3/8-16 x 1

$5.49

$

In Stock, Qty 7

0

28

Cub Cadet 01000644

Carriage Bolt, 3/8-16 x 4.5

$

$

Not available

29

Cub Cadet 01006883P

Deck 36"

$

$

Not available

30

Cub Cadet 02002426

Bar Weight

Variations

Cub Cadet 02002426-0637

BAR- WEIGHT CAT - POWDER BLACK (0637)

$185.99

$

Usually ships in 3-6 days

0

$168.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 01002011

Carriage Bolt, 3/8-16 x 1-1/2

$

$

Not available

32

Cub Cadet 01003153-0637

Clutch Link

$14.99

$

In Stock, only 2 left!

0

33

Cub Cadet 01002103

Rod Clutch Link

$

$

Not available

34

Cub Cadet 01002166

Decal, Danger Hands and Feet

$12.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 00063043

Idler Base

$55.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 00013406

Hex Cap Screw, 5/16-18 x .75
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 00022560

Hex Nut Flange Lock, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

38

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

39

Cub Cadet 936-0133

Washer, 1.25 x .411 x .100
(Superseded to 736-0133)

$

$

Not available

40

Cub Cadet 02000320-0637

Chute Baffle

$

$

Not available
