G 1336 (55AE230R750) - Cub Cadet Walk-Behind Mower Kawasaki Engine Assembly 13HP Parts Diagram

Walk-Behind Mower

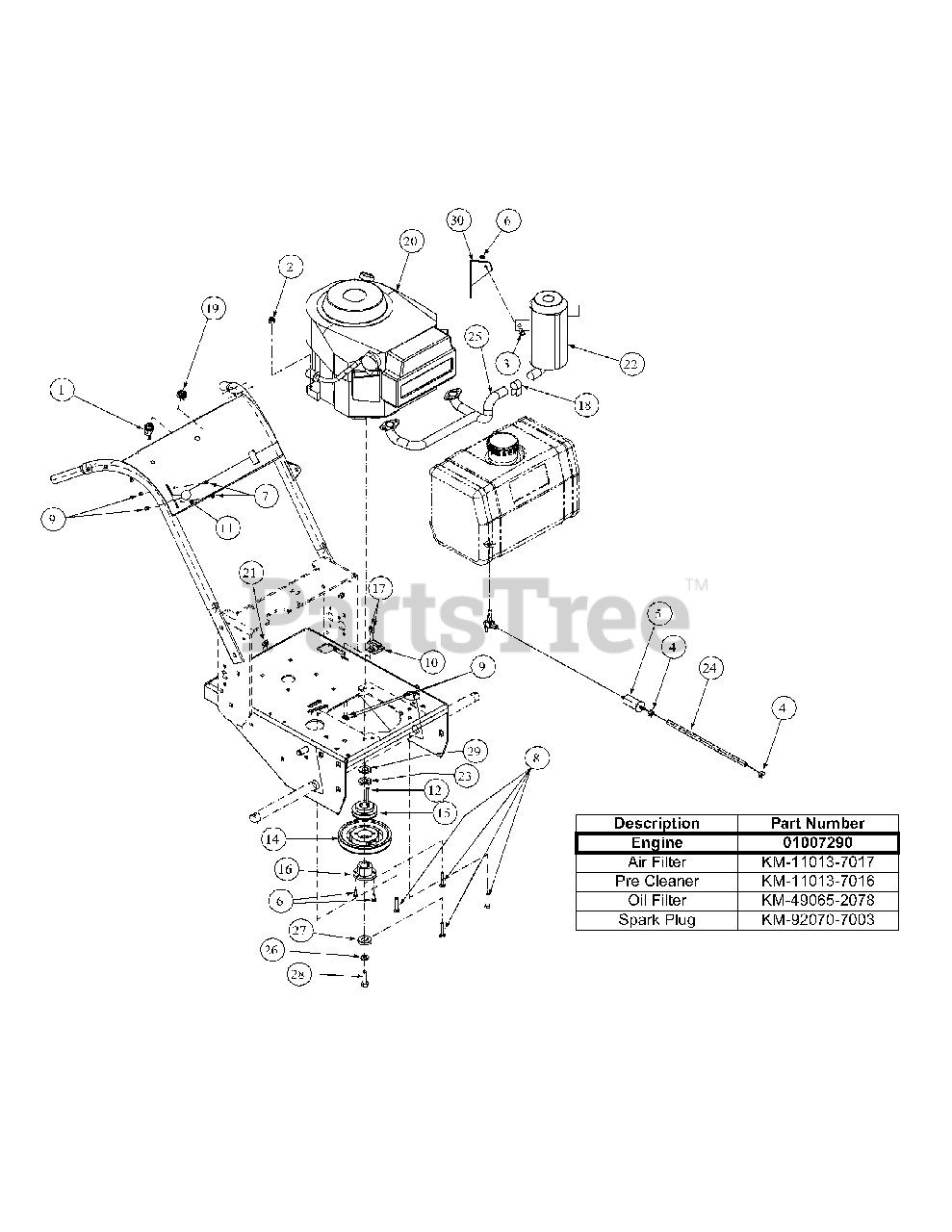

Kawasaki Engine Assembly 13HP Parts Diagram

  • Title

1

Cub Cadet 00010943P

Single Ignition ON/OFF Switch

$

$

Not available

2

Cub Cadet 00012165

Lock Nut, Nylon Insert, 5/16-18

$4.99

$

In Stock, only 1 left!

0

3

Cub Cadet 00013406

Hex Cap Screw, 5/16-18 x 3/4
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 00012235

Clamp
(Superseded to 726-04123A)

$3.99

$

In Stock, Qty 6

0

5

Cub Cadet 00012292

Kohler Fuel Filter
(Superseded to 2405013S1C)

$12.99

$

In Stock, Qty 20+

0

6

Cub Cadet 00022547

Lock Nut, 5/16-18

$

$

Not available

7

Cub Cadet 00013669

Screw, Hex Washer, 10-32 x 1/2

$2.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 00013198

HHCS, 5/16-18 x 2
(Superseded to 710-3103)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 00014608

Lock Nut, Nylon Insert, 10-32
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0

10

Cub Cadet 00018324

Delta Switch

$

$

Not available

11

Cub Cadet 00019550P

Control Throttle w/Detent, 39.2

$

$

Not available

12

Cub Cadet 01007533

Key Stick, 1/4 x 1/4 x 2-3/4

$11.99

$

In Stock, only 1 left!

0

13

Cub Cadet 00021521

Harness Wire (not shown)

$

$

Not available

14

Cub Cadet 00021970

Deck Pulley

$112.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 00021972

Traction Pulley

$

$

Not available

16

Cub Cadet 00021973

Bushing

$

$

Not available

17

Cub Cadet 00030906

Machine Screw, 10-32 x 5/8

$6.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 01000983

Muffler Clamp Assembly

Note: NLA

$

$

Not available

19

Cub Cadet 00032097

Nut w/cap, 5/8-32 Ignition
(Superseded to 00032097P)

$

$

Not available

20

Cub Cadet KM-FH381V-AS03

13 Hp Kawasaki Engine

$

$

Not available

21

Cub Cadet 00060807

Support Clamp, 3/8 OD

$

$

Not available

22

Cub Cadet KM-49070-6001

Muffler

$147.99

$

In Stock, Qty 7

0

23

Cub Cadet 00072586

Flat Washer
(Superseded to 736-0250)

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 01001208

12" Fuel Hose

$

$

Not available

25

Cub Cadet 00082639

Kawasaki Manifold

Note: NLA

$

$

Currently unavailable

26

Cub Cadet 00012195

Lock Washer, 7/16

$

$

Not available

27

Cub Cadet 00013675

Clutch Washer

$9.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 01002885

Hex Cap Screw, M10 x 1.5, 30mm, GR10.9

$

$

Not available

29

Cub Cadet 00073094

Spacer, Engine Pulley

$14.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 01000192

Muffler Bracket

$

$

Not available

Cub Cadet KM-FH381V-AS03

Engine

$

$

Not available

Cub Cadet KM-11013-7017

Air Filter

$18.99

$

In Stock, Qty 20+

0

Cub Cadet KM-11013-7034

Pre Cleaner

$7.49

$

In Stock, Qty 20+

0

Cub Cadet KM-49065-7010

Oil Filter
(Superseded to KM-49065-0724)

$18.99

$

In Stock, Qty 20+

0

Cub Cadet TC-611049

Spark Plug

$4.99

$

In Stock, Qty 20+

0
