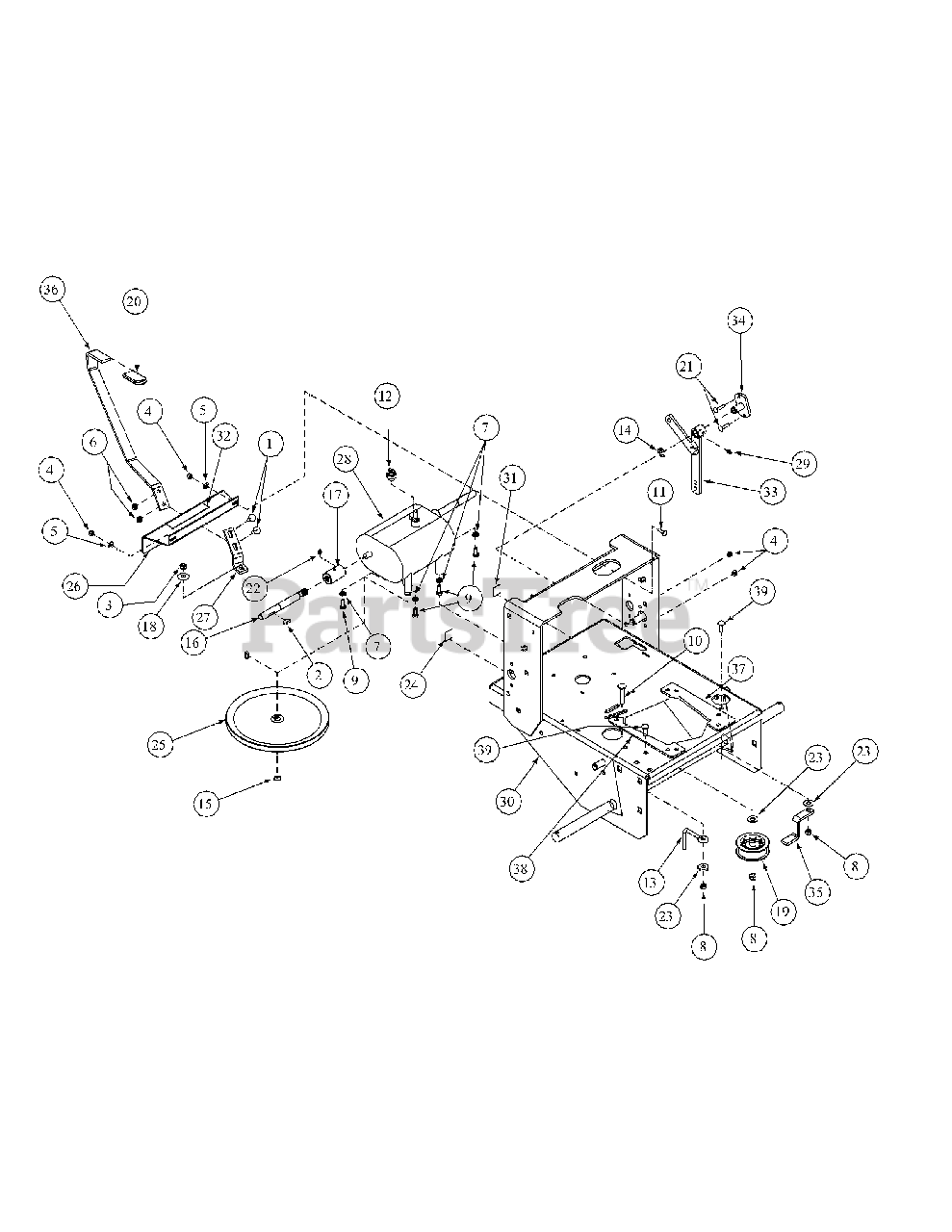

G 1336 (55AE230R750) - Cub Cadet Walk-Behind Mower Deck Assembly Narrow Track Parts Diagram

Walk-Behind Mower

Deck Assembly Narrow Track Parts Diagram

  • Title

1

Cub Cadet 01000641

Carriage Bolt, 5/16-18 x 1

$3.49

$

Usually ships in 3-6 days

0

2

Cub Cadet 914-0868

Woodruff Key, 3/16 x 3/4

$3.99

$

In Stock, only 4 left!

0

3

Cub Cadet 00011454

Jam Nut, Insert Lock, 3/8-24

$

$

Not available

4

Cub Cadet 00012152

Lock Nut, Nylon Insert, 1/4-20

$4.49

$

In Stock, only 1 left!

0

5

Cub Cadet 00012154

Flat Washer, 1/4 Zinc
(Superseded to 936-3020)

$

$

Not available

6

Cub Cadet 00012165

Nut, 5/16-18 Nylock

$4.99

$

In Stock, only 1 left!

0

7

Cub Cadet 00012168

Lock Washer, 5/16 Zinc

$

$

Not available

8

Cub Cadet 712-04065

Lock Nut, Nylon Insert, 3/8-16

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 00013406

Hex Cap Screw, 5/16-18 x 3/4
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 00014270

Carriage Bolt, 3/8-16 x2
(Superseded to 710-04157)

$8.99

$

In Stock, only 1 left!

0

11

Cub Cadet 00017584

Carriage Bolt, 1/4-20 x .750

$

$

Not available

12

Cub Cadet 00018329

Switch, WB Transmission

$107.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 01005114

Drive Belt Guide

$13.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 00021962

E-Ring, 5/8

$

$

Not available

15

Cub Cadet 00021964

External Retainer Ring

$

$

Not available

16

Cub Cadet 00030352

Jackshaft w/ Heavy Spline

$

$

Not available

17

Cub Cadet 00030353

Coupling w/Heavy Spline

$51.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 00030355

Bell Washer, .39 ID x 1.13 OD x .062

$

$

Not available

19

Cub Cadet 02004558

Flat Idler Pulley w/Adapter

$22.99

$

In Stock, only 1 left!

0

20

Cub Cadet 00030884

Grip, .250 x 1 x 3-1/2, Yellow

$8.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 00031602

Carriage Bolt, 1/4-20 x 1.00

$3.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 737-04345

Grease Fitting, 1/4-28 x 3/16

$4.99

$

In Stock, Qty 6

0

23

Cub Cadet 00083192

Idler Washer
(Superseded to 736-0258)

$4.49

$

In Stock, only 4 left!

0

24

Cub Cadet 00090006

Decal "Made In America

$

$

Not available

25

Cub Cadet 01000073

Transmission Pulley

$

$

Not available

26

Cub Cadet 01000092-0637

Shift Plate

$

$

Not available

27

Cub Cadet 01000093

Shift Arm

$59.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 01000152P

Transmission, 5 Speed

$1084.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 01007179

Grease Fitting, 1/4-28 x 1/2
(Superseded to 737-04345)

$4.99

$

In Stock, Qty 6

0

30

Cub Cadet 01000856-0637

Engine Deck Assembly

$

$

Not available

31

Cub Cadet 01001035

Label, Warning, Open Belt Drive

$

$

Not available

32

Cub Cadet 01001037

Label, Mower Instruction

$

$

Not available

33

Cub Cadet 00021902

Clutch, Bellecrank Weldment
(Superseded to 01009455)

$85.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 00021906

Bellecrank Pivot, Weldment

$164.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 01003146-0637

Engine Belt Guide

$

$

Not available

36

Cub Cadet 01003825-0637

Shift Handle

$

$

Not available

37

Cub Cadet 01004392-0637

Engine Spacer, LH

$

$

Not available

38

Cub Cadet 01004395-0637

Engine Spacer, RH

$

$

Not available

39

Cub Cadet 710-3034

Carriage Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 5

0
