G 1336 (55AE230R750) - Cub Cadet Walk-Behind Mower Chute Assembly Parts Diagram

Walk-Behind Mower

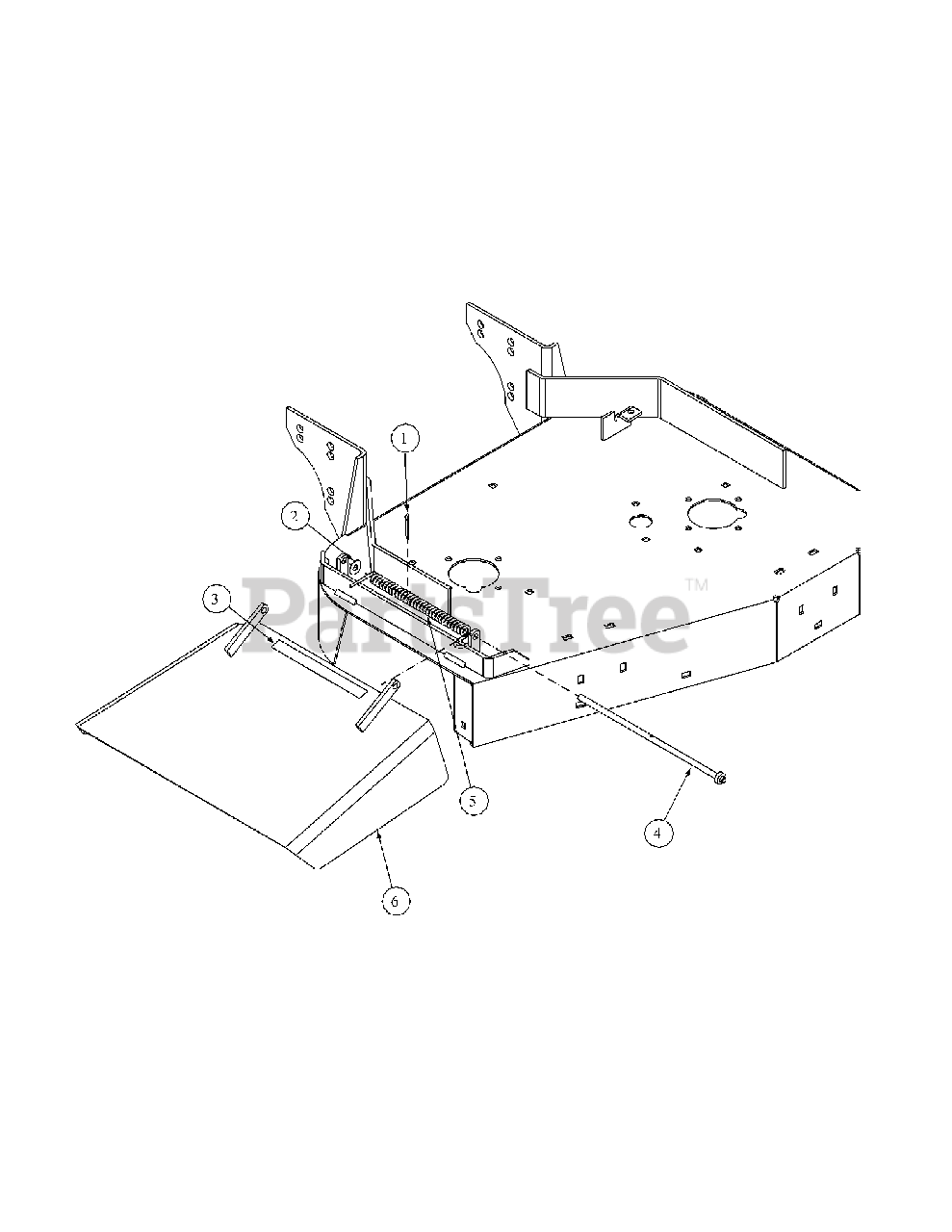

Chute Assembly Parts Diagram

  • Title
1

Cub Cadet 00003107

Cotter Pin, 5/32 x 1 1/2 Zinc
(Superseded to 914-0115)

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 00012158

Flat Washer, 3/8, Zinc

$4.49

$

In Stock, Qty 9

0

3

Cub Cadet 00013597

Decal, Cut Line

$

$

Not available

4

Cub Cadet 00030644

Pin, Deflector Assembly

$110.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 01002037

Torsion Spring

$70.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 01005997

Chute Assembly Discharge

$

$

Not available
