G 1336 (55AE200R718) - MTD Pro Walk-Behind Mower Caster Assembly Parts Diagram
Pro Walk-Behind Mower

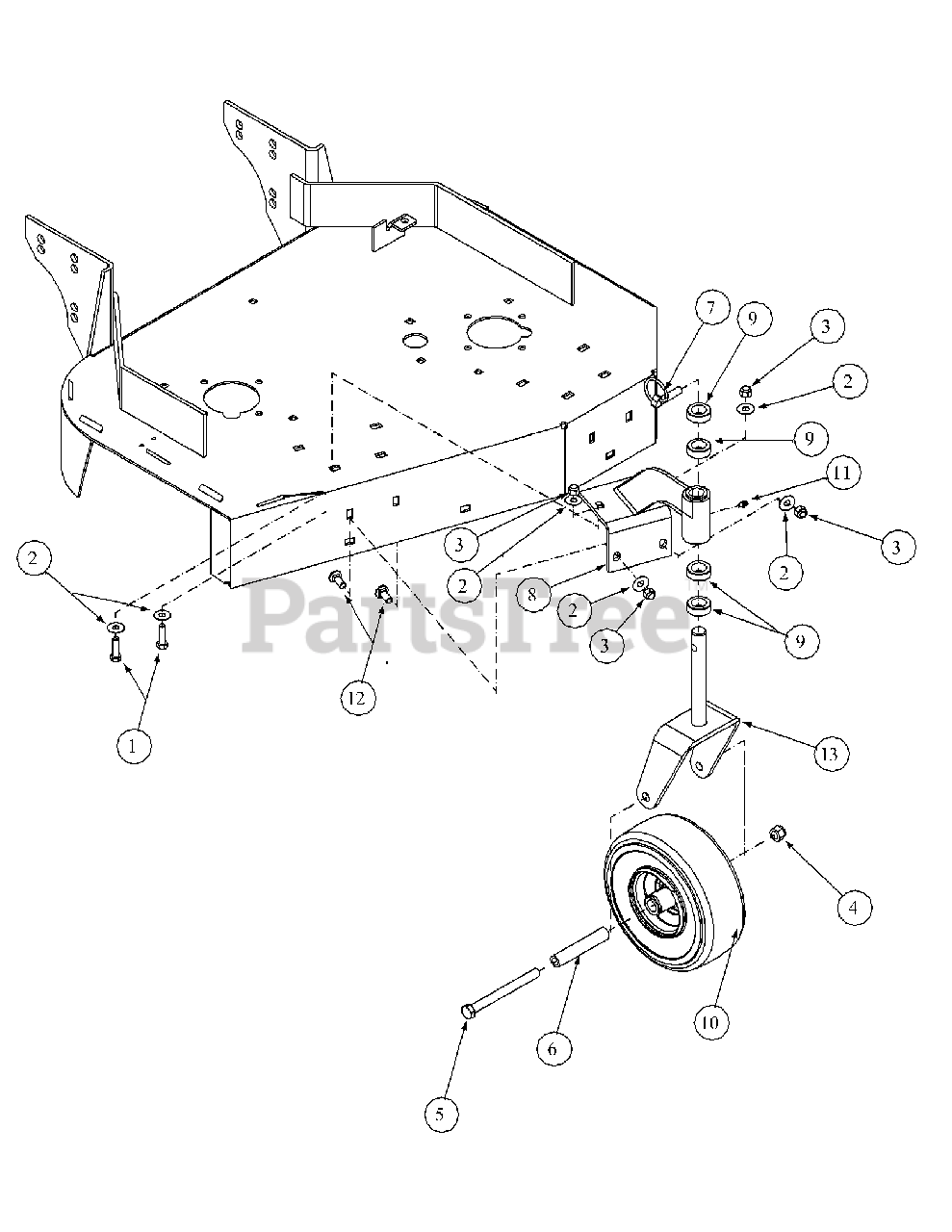

Caster Assembly Parts Diagram
MTD 00011444
Hex Cap Screw, 3/8-16 x 1-1/4
$4.49
$
In Stock, Qty 9
MTD 00012158
Flat Washer, 3/8 Zinc
$4.49
$
In Stock, Qty 9
MTD 712-04065
Lock Nut, Nylon Insert, 3/8-16
$3.99
$
In Stock, Qty 20+
MTD 00012428
Lock Nut, Nylon Insert, 1/2-13
$6.99
$
In Stock, only 2 left!
MTD 00012675
Hex Cap Screw, 1/2-20, 5.50
$10.99
$
In Stock, only 1 left!
MTD 00014528
Spacer Wheel
$12.99
$
Usually ships in 3-6 days
MTD 711-1105
Klik Pin, 1.75
$11.99
$
Usually ships in 3-6 days
MTD 01006718
Caster Bracket Assembly
$
$
Not available
MTD 00021925
Spacer, Caster
$16.99
$
In Stock, only 3 left!
MTD 02000192
Wheel Assembly, 9.0 x 3.50-4
$136.99
$
Usually ships in 3-6 days
MTD 737-04345
Grease Fitting, 1/4-28 x 3/16
$4.99
$
In Stock, Qty 6
MTD 01000643
Carriage Bolt, 3/8-16 x 1
$5.49
$
In Stock, Qty 7
MTD 01001051-0637
Caster Yoke Assembly, Weldment
$178.99
$
In Stock, only 1 left!
