G 1236 (55AC5GMR050) - Cub Cadet Walk-Behind Mower B&S 219802-0597-B1 Engine Assembly 2 Parts Diagram

Walk-Behind Mower

B&S 219802-0597-B1 Engine Assembly 2 Parts Diagram

  • Title

1

Cub Cadet BS-697377

Cylinder Assembly

$471.99

$

Usually ships in 2-12 days

0

2

Cub Cadet BS-399265

Kit-Bushing/Seal (Magneto Side)
(Superseded to BS-797673)

$18.99

$

In Stock, Qty 8

0

3

Cub Cadet BS-391086S

Seal-Oil (Magneto Side)

Note: Included in kit Ref No. 358

$6.49

$

In Stock, Qty 20+

0

4

Cub Cadet BS-697106

Sump-Engine

$308.99

$

Usually ships in 2-12 days

0

5

Cub Cadet BS-792964

Head-Cylinder

$302.99

$

In Stock, only 1 left!

0

7

Cub Cadet BS-273280S

Gasket-Cylinder Head

Note: Included in kit Ref No. 358 & No. 1095

$10.99

$

In Stock, Qty 20+

0

11

Cub Cadet BS-794683

Tube-Breather

$7.99

$

In Stock, Qty 20+

0

12

Cub Cadet BS-697110

Gasket-Crankcase

Note: Included in kit Ref No. 358

$7.49

$

In Stock, Qty 20+

0

13

Cub Cadet BS-690360

Screw (Cylinder Shield)
(Superseded to BS-84001963)

$3.49

$

Usually ships in 3-6 days

0

15

Cub Cadet BS-690946

Plug-Oil Drain

$5.99

$

In Stock, Qty 14

0

16

Cub Cadet BS-697390

Crankshaft

$365.99

$

In Stock, only 1 left!

0

20

Cub Cadet BS-795387

Seal-Oil (PTO Side)

Note: Included in kit Ref No. 358

$7.49

$

In Stock, Qty 20+

0

22

Cub Cadet BS-692125

Screw (Crankcase Cover/Sump)

$4.99

$

In Stock, only 4 left!

0

23

Cub Cadet BS-693555

Flywheel

$

$

Not available

24

Cub Cadet BS-222698S

Key-Flywheel

$2.99

$

In Stock, Qty 20+

0

25

Cub Cadet BS-792305

Piston Assembly (Standard)
(Superseded to BS-792307)

$172.99

$

Usually ships in 2-12 days

0

25

Cub Cadet BS-792728

Piston Assembly (.020" Oversize)

$278.99

$

Usually ships in 2-12 days

0

26

Cub Cadet BS-792306

Ring Set (Standard)

$57.99

$

Usually ships in 2-12 days

0

26

Cub Cadet BS-792643

Ring Set (.020" Oversize)

$252.99

$

In Stock, only 1 left!

0

27

Cub Cadet BS-698469

Lock-Piston Pin

$4.99

$

In Stock, Qty 13

0

28

Cub Cadet BS-697099

Pin-Piston

$13.99

$

In Stock, only 1 left!

0

29

Cub Cadet BS-791633

Rod-Connecting

$79.99

$

In Stock, only 1 left!

0

32

Cub Cadet BS-791118

Screw (Connecting Rod)

$4.99

$

In Stock, only 2 left!

0

33

Cub Cadet BS-791934

Valve-Exhaust
(Superseded to BS-792868)

$35.99

$

Usually ships in 2-12 days

0

34

Cub Cadet BS-791935

Valve-Intake

$27.99

$

Usually ships in 2-12 days

0

35

Cub Cadet BS-691279

Spring-Valve (Intake)

$5.99

$

In Stock, Qty 10

0

36

Cub Cadet BS-691279

Spring-Valve (Exhaust)

$5.99

$

In Stock, Qty 10

0

37

Cub Cadet BS-697352

Guard-Flywheel

$10.99

$

In Stock, only 2 left!

0

37A

Cub Cadet BS-697626

Guard-Flywheel

$11.99

$

In Stock, only 1 left!

0

40

Cub Cadet BS-690964

Retainer-Valve
(Superseded to BS-499586)

$7.49

$

In Stock, Qty 18

0

42

Cub Cadet BS-499586

Keep-Valve

$7.49

$

In Stock, Qty 18

0

43

Cub Cadet BS-691968

Slinger-Governor/Oil

$37.99

$

In Stock, Qty 20+

0

45

Cub Cadet BS-690564

Tappet-Valve

$9.99

$

In Stock, Qty 20+

0

46

Cub Cadet BS-795102

Camshaft

$

$

Not available

48

Short Block

$

$

Not available

50

Cub Cadet BS-697361

Manifold-Intake

$61.99

$

In Stock, Qty 5

0

51

Cub Cadet BS-692137

Gasket-Intake

Note: Included in kit Ref No. 358, 121 & 1095

$3.49

$

In Stock, Qty 20+

0

53

Cub Cadet BS-690227

Stud (Carburetor)

$7.99

$

In Stock, Qty 6

0

54

Cub Cadet BS-691148

Screw (Intake Manifold)

$3.99

$

In Stock, only 2 left!

0

55

Cub Cadet BS-695130

Housing-Rewind Starter

$

$

Not available

56

Cub Cadet BS-695129

Pulley-Starter

$29.99

$

In Stock, Qty 7

0

57

Cub Cadet BS-695131

Spring-Rewind Starter

$17.99

$

In Stock, only 1 left!

0

58

Cub Cadet BS-695132

Rope-Starter

$8.49

$

In Stock, only 1 left!

0

60

Cub Cadet BS-494212

Grip-Starter Rope
(Superseded to BS-493926)

$

$

Not available

65

Cub Cadet BS-690759

Screw (Rewind Starter)

$3.49

$

In Stock, Qty 20+

0

78

Cub Cadet BS-691003

Screw (Flywheel Guard)

$3.49

$

In Stock, Qty 9

0

78A

Cub Cadet BS-690364

Screw (Flywheel Guard)
(Superseded to BS-94811)

$

$

Not available

81

Cub Cadet BS-691178

Lock-Muffler Screw

$5.49

$

In Stock, Qty 9

0

93

Cub Cadet BS-281346

Bushing-Throttle Shaft

$

$

Not available

94

Cub Cadet BS-794176

Kit-Idle Mixture (Walbro)

$21.99

$

Usually ships in 2-12 days

0

95

Cub Cadet BS-691636

Screw (Throttle Valve) (Walbro)

$3.99

$

Usually ships in 2-12 days

0

98

Cub Cadet BS-495800

Kit-Idle Speed (Walbro)

$10.99

$

In Stock, only 1 left!

0

104

Cub Cadet BS-690525

Pin-Float Hinge (Walbro)

Note: Included in kit Ref No. 121

$4.99

$

In Stock, only 1 left!

0

105

Cub Cadet BS-231855S

Valve-Float Needle (Walbro)

$6.99

$

Usually ships in 2-12 days

0

106

Cub Cadet BS-691780

Seat-Inlet (Walbro)

$10.99

$

In Stock, only 2 left!

0

108

Cub Cadet BS-691227

Valve-Choke (Walbro)

$9.49

$

In Stock, only 2 left!

0

117

Cub Cadet BS-699897

Jet-Main (Standard)

$17.99

$

In Stock, only 1 left!

0

118

Cub Cadet BS-699898

Jet-Main (High Altitude)

$19.99

$

Usually ships in 2-12 days

0

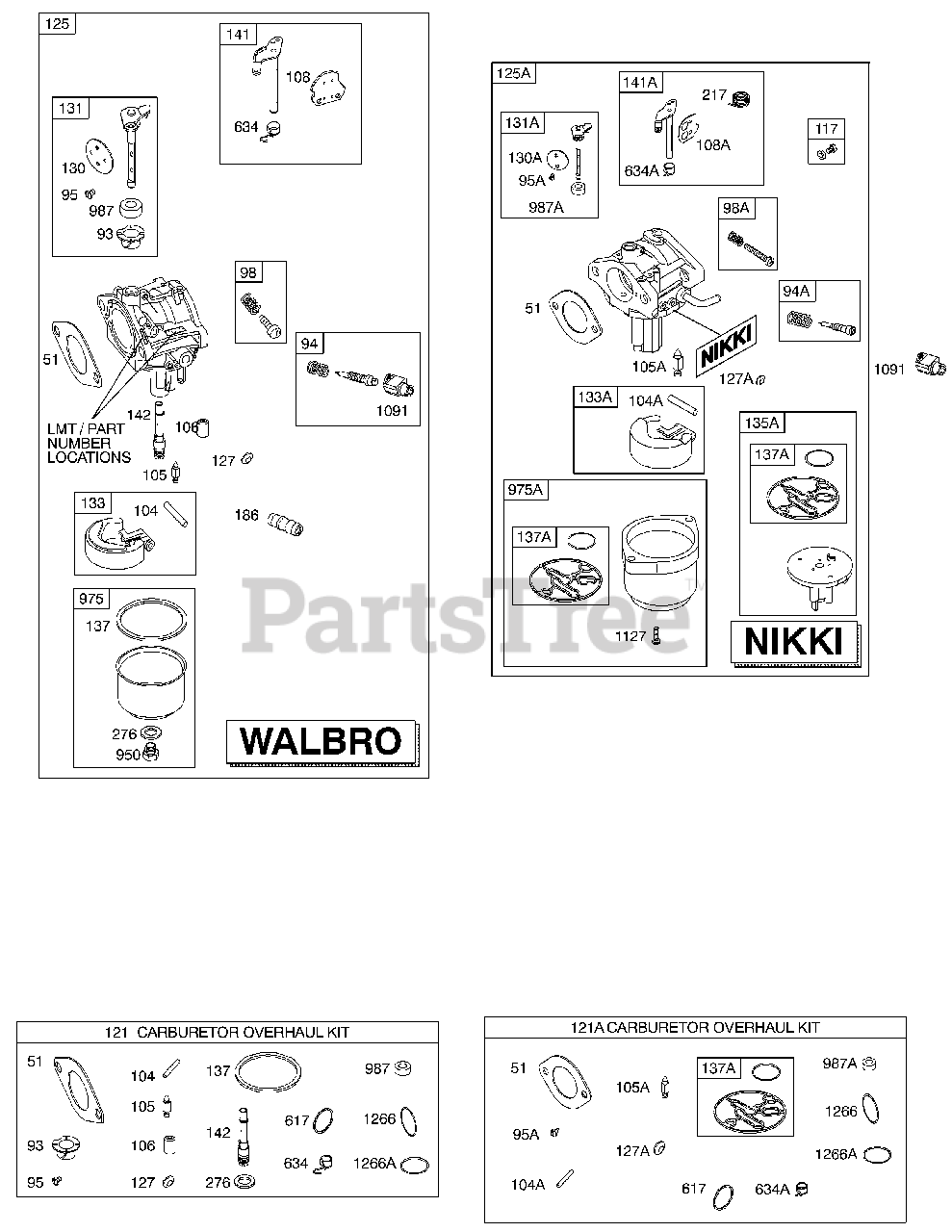

121

Cub Cadet BS-790031

Kit-Carburetor Overhaul (Walbro)
(Superseded to BS-796185)

Note: Incl. Ref No. 51, 104, 127, 137, 276,

$112.99

$

Usually ships in 2-12 days

0

125

Cub Cadet BS-793227

Carburetor (Walbro)
(Superseded to BS-593432)

$137.99

$

In Stock, Qty 20+

0

127

Cub Cadet BS-694524

Plug-Welch (Walbro)

Note: Included in kit Ref No. 121

$4.99

$

Usually ships in 2-12 days

0

130

Cub Cadet BS-790024

Valve-Throttle (Walbro)

$8.49

$

Usually ships in 2-12 days

0

131

Cub Cadet BS-790901

Kit-Throttle Shaft (Walbro)

$38.99

$

In Stock, only 1 left!

0

133

Cub Cadet BS-494381

Float-Carburetor (Walbro)

$13.99

$

In Stock, only 4 left!

0

137

Cub Cadet BS-281165S

Gasket-Float Bowl (Walbro)

Note: Included in kit Ref No. 121

$4.99

$

Usually ships in 2-12 days

0

141

Cub Cadet BS-790902

Kit-Choke Shaft (Walbro)

$33.99

$

In Stock, only 1 left!

0

142

Cub Cadet BS-790025

Nozzle-Carburetor (Standard) (Walbro)

$24.99

$

Usually ships in 2-12 days

0

146

Cub Cadet BS-691639

Key-Timing

$4.49

$

In Stock, Qty 5

0

186

Cub Cadet BS-698174

Connector-Hose

$3.99

$

Usually ships in 2-12 days

0

187

Cub Cadet BS-791805

Line-Fuel (Molded) (Cut to Required Length)

$24.99

$

Usually ships in 2-12 days

0

188

Cub Cadet BS-691693

Screw (Control Bracket)

$3.99

$

In Stock, Qty 8

0

192

Cub Cadet BS-691986

Ball-Rocker Arm

$11.99

$

In Stock, Qty 18

0

202

Cub Cadet BS-691841

Link-Mechanical Governor

$9.49

$

In Stock, Qty 13

0

209

Cub Cadet BS-792813

Spring-Governor (Brown)

$6.99

$

In Stock, only 3 left!

0

216

Cub Cadet BS-691840

Link-Choke

$8.99

$

In Stock, Qty 19

0

217

Cub Cadet BS-695409

Spring-Choke Return

$8.99

$

In Stock, only 1 left!

0

222

Cub Cadet BS-694042

Bracket-Control
(Superseded to BS-597209)

$38.99

$

In Stock, Qty 20+

0

227

Cub Cadet BS-691374

Lever-Governor Control

$26.99

$

In Stock, only 2 left!

0

232

Cub Cadet BS-691842

Spring-Governor Link

$11.99

$

In Stock, Qty 20+

0

238

Cub Cadet BS-691843

Cap-Valve

$8.49

$

In Stock, Qty 20+

0

240

Cub Cadet BS-691035

Filter-Fuel
(Superseded to BS-84001895)

$7.99

$

In Stock, Qty 20+

0

265

Cub Cadet BS-691024

Clamp-Casing

$3.99

$

In Stock, Qty 6

0

267

Cub Cadet BS-794904

Screw (Casing Clamp)

$3.49

$

In Stock, only 1 left!

0

276

Cub Cadet BS-692255

Washer-Sealing

Note: Included in kit Ref No. 121

$5.49

$

In Stock, Qty 20+

0

300

Cub Cadet BS-697349

Muffler

$109.99

$

In Stock, only 2 left!

0

304

Cub Cadet BS-698473

Housing-Blower
(Superseded to BS-591906)

$166.99

$

In Stock, only 2 left!

0

305

Cub Cadet BS-697102

Screw (Blower Housing) (1 13/64" Long)

$3.99

$

In Stock, only 2 left!

0

305A

Cub Cadet BS-793376

Screw (Blower Housing) (13/16" Long)
(Superseded to BS-799370)

$3.99

$

In Stock, Qty 6

0

306

Cub Cadet BS-697359

Shield-Cylinder

$

$

Not available

307

Cub Cadet BS-691003

Screw (Cylinder Shield)

$3.49

$

In Stock, Qty 9

0

333

Cub Cadet BS-795315

Armature-Magneto
(Superseded to BS-595304)

$45.99

$

In Stock, Qty 20+

0

334

Cub Cadet BS-691061

Screw (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

337

Cub Cadet BS-491055

Plug-Spark
(Superseded to 759-3336)

$4.49

$

In Stock, Qty 20+

0

358

Cub Cadet BS-697151

Gasket Set-Engine
(Superseded to BS-796181)

Note: Incl. Ref No. 3, 7, 12, 20, 51, 868, 883, 993

$94.99

$

Usually ships in 2-12 days

0

363

Cub Cadet BS-19203

Puller-Flywheel

$23.99

$

In Stock, only 1 left!

0

383

Cub Cadet BS-89838S

Wrench-Spark Plug

$6.49

$

In Stock, only 4 left!

0

385

Cub Cadet BS-694476

Screw (Fuel Pump) (1 1/8" Long)

$3.99

$

In Stock, only 1 left!

0

385A

Cub Cadet BS-690297

Screw (Fuel Pump) (2/3" Long)

$3.49

$

In Stock, Qty 12

0

387

Cub Cadet BS-697090

Pump-Fuel (Includes Mounting Bracket)

$

$

Not available

387A

Cub Cadet BS-808656

Pump-Fuel
(Superseded to BS-597338)

$27.99

$

In Stock, Qty 20+

0

404

Cub Cadet BS-691691

Washer (Governor Crank)

$3.99

$

In Stock, Qty 5

0

431

Cub Cadet BS-697122

Elbow-Intake

$24.99

$

In Stock, only 1 left!

0

445

Cub Cadet BS-698413

Filter-Air Cleaner Cartridge
(Superseded to BS-794421)

$16.99

$

In Stock, Qty 20+

0

455

Cub Cadet BS-695113

Cup-Flywheel

$15.99

$

In Stock, only 1 left!

0

456

Cub Cadet BS-695128

Plate-Pawl Friction

$12.99

$

In Stock, Qty 17

0

459

Cub Cadet BS-281505S

Pawl-Ratchet

$3.49

$

In Stock, Qty 9

0

505

Cub Cadet BS-691251

Nut (Governor Control Lever)

$3.49

$

In Stock, Qty 9

0

523

Cub Cadet BS-699908

Dipstick

$14.99

$

In Stock, Qty 6

0

524

Cub Cadet BS-691032

Seal-Dipstick Tube

$5.99

$

In Stock, only 1 left!

0

525

Cub Cadet BS-697085

Tube-Dipstick

$26.99

$

In Stock, only 1 left!

0

552

Cub Cadet BS-697144

Bushing-Governor Crank

$9.49

$

Usually ships in 2-12 days

0

559

Cub Cadet BS-697561

Screw (Remote Choke Stop)

$3.99

$

In Stock, only 1 left!

0

562

Cub Cadet BS-691119

Bolt (Governor Control Lever)

$4.49

$

In Stock, Qty 17

0

584

Cub Cadet BS-794682

Cover-Breather Passage

$9.49

$

In Stock, Qty 6

0

597

Cub Cadet BS-691696

Screw (Pawl Friction Plate)

$11.99

$

In Stock, Qty 5

0

601

Cub Cadet BS-791850

Hose-Clamp

$3.49

$

In Stock, Qty 20+

0

608

Cub Cadet BS-693394

Starter-Rewind
(Superseded to BS-591301)

$56.99

$

In Stock, Qty 5

0

613

Cub Cadet BS-691416

Screw (Muffler)

$11.99

$

In Stock, Qty 12

0

613A

Cub Cadet BS-690297

Screw (Muffler)

$3.49

$

In Stock, Qty 12

0

614

Cub Cadet BS-93306

Pin-Cotter (Governor Crank)

$

$

Not available

616

Cub Cadet BS-692012

Crank-Governor

$13.99

$

In Stock, only 2 left!

0

634

Cub Cadet BS-690802

Spring/Seal Assembly (Walbro)

$9.49

$

Usually ships in 2-12 days

0

635

Cub Cadet BS-691909

Boot-Spark Plug

$4.99

$

In Stock, Qty 5

0

643

Cub Cadet BS-697155

Retainer-Air Filter

$11.99

$

In Stock, only 1 left!

0

676

Cub Cadet BS-393761

Deflector-Muffler (Side Out)
(Superseded to BS-795036)

$8.49

$

In Stock, only 1 left!

0

677

Cub Cadet BS-690661

Screw (Muffler Deflector)

$3.49

$

In Stock, Qty 8

0

684

Cub Cadet BS-697157

Screw (Breather Passage Cover)

$3.99

$

Usually ships in 2-12 days

0

689

Cub Cadet BS-691855

Spring-Friction

$4.49

$

In Stock, only 2 left!

0

691

Cub Cadet BS-692407

Seal-Governor Shaft

$7.99

$

In Stock, Qty 8

0

718

Cub Cadet BS-690959

Pin-Locating

$6.99

$

In Stock, only 1 left!

0

741

Cub Cadet BS-697128

Gear-Timing

$20.99

$

In Stock, only 1 left!

0

757

Cub Cadet BS-793242

Link-Counterweight

$20.99

$

In Stock, only 2 left!

0

758

Cub Cadet BS-697391

Counterweight

$161.99

$

Usually ships in 2-12 days

0

759

Cub Cadet BS-697392

Pin-Counterweight

$5.99

$

Usually ships in 2-12 days

0

823

Cub Cadet BS-698941

Screw (Muffler Adapter)

$6.99

$

In Stock, only 2 left!

0

830

Cub Cadet BS-691095

Stud-Rocker Arm

$7.99

$

In Stock, Qty 20+

0

842

Cub Cadet BS-691031

Seal-O Ring (Dipstick Tube)

$5.49

$

In Stock, Qty 20+

0

847

Cub Cadet BS-790443

Dipstick/Tube Assembly

$55.99

$

Usually ships in 2-12 days

0

850

Cub Cadet BS-100100

Sealant-Liquid

Note: (Used in place of the Rocker Cover Gasket and the Breather Passage Gasket)

$14.99

$

In Stock, Qty 20+

0

851

Cub Cadet BS-692424

Terminal-Spark Plug

$5.99

$

In Stock, Qty 13

0

864

Cub Cadet BS-794661

Adapter-Muffler
(Superseded to BS-796002)

$43.99

$

In Stock, Qty 6

0

868

Cub Cadet BS-690968

Seal-Valve

Note: Included in kit Ref No. 358 & No. 1095

$10.99

$

In Stock, Qty 20+

0

870

Cub Cadet BS-691844

Seat-Valve (Exhaust)

$18.99

$

In Stock, only 1 left!

0

883

Cub Cadet BS-692236

Gasket-Exhaust

Note: Included in kit Ref No. 358

$5.49

$

In Stock, Qty 20+

0

914

Cub Cadet BS-691108

Screw (Rocker Cover)

$3.49

$

In Stock, Qty 20+

0

918

Cub Cadet BS-791851

Hose-Vacuum

$14.99

$

In Stock, only 1 left!

0

950

Cub Cadet BS-691657

Screw-Float Bowl (Bottom of Float Bowl)

$7.99

$

In Stock, only 1 left!

0

967

Cub Cadet BS-697292

Filter-Pre Cleaner

$5.99

$

In Stock, Qty 16

0

968

Cub Cadet BS-697420

Cover-Air Cleaner

$41.99

$

In Stock, only 2 left!

0

975

Cub Cadet BS-495933

Bowl-Float (Walbro)

$

$

Not available

987

Cub Cadet BS-691326

Seal-Throttle Shaft (Walbro)

$5.49

$

Usually ships in 2-12 days

0

993

Cub Cadet BS-694088

Gasket-Cylinder Head Plate

Note: Included in kit Ref No. 358 & No. 1095

$8.49

$

In Stock, Qty 16

0

1005

Cub Cadet BS-794439

Fan-Flywheel

$

$

Not available

1023

Cub Cadet BS-794659

Cover-Rocker
(Superseded to BS-797421)

$35.99

$

In Stock, only 2 left!

0

1026

Cub Cadet BS-794573

Rod-Push (Exhaust)

$14.99

$

In Stock, Qty 10

0

Cub Cadet BS-697694

Rod-Push (Intake)

$

$

Currently unavailable

1029

Cub Cadet BS-691751

Arm-Rocker

$9.49

$

Usually ships in 2-12 days

0

1034

Cub Cadet BS-690822

Guide-Push Rod

$9.49

$

In Stock, only 3 left!

0

1044

Cub Cadet BS-698139

Screw (Flywheel)

$5.99

$

In Stock, Qty 7

0

1070

Cub Cadet BS-690363

Screw (Flywheel Fan)

$4.99

$

In Stock, only 3 left!

0

1091

Cub Cadet BS-691333

Cap-Limiter

$9.49

$

In Stock, only 1 left!

0

1095

Cub Cadet BS-691581

Gasket Set-Valve

Note: Incl. Ref No. 7, 51, 868

$64.99

$

Usually ships in 2-12 days

0

1127

Cub Cadet BS-695407

Screw (Float Bowl)

$4.49

$

In Stock, Qty 20+

0

1263

Cub Cadet BS-697124

Reed-Breather

$7.49

$

In Stock, Qty 20+

0

1264

Cub Cadet BS-697104

Screw (Breather Reed)

$3.99

$

Usually ships in 2-12 days

0

1266

Cub Cadet BS-691917

Seal-O Ring (Intake Elbow) (Red)

$4.49

$

In Stock, Qty 20+

0

1266A

Cub Cadet BS-697123

Seal-O Ring (Intake Elbow)

$5.99

$

In Stock, Qty 19

0

1267

Cub Cadet BS-697419

Latch-Blower Housing

$17.99

$

In Stock, only 2 left!

0

1270

Cub Cadet BS-793243

Plug-AVS Counterweight

$4.99

$

In Stock, Qty 5

0
