G 10303 (80021) - Snapper 30" Snow Thrower, 10hp Handle, Controls (Series 2 & Later) Parts Diagram

30" Snow Thrower, 10hp

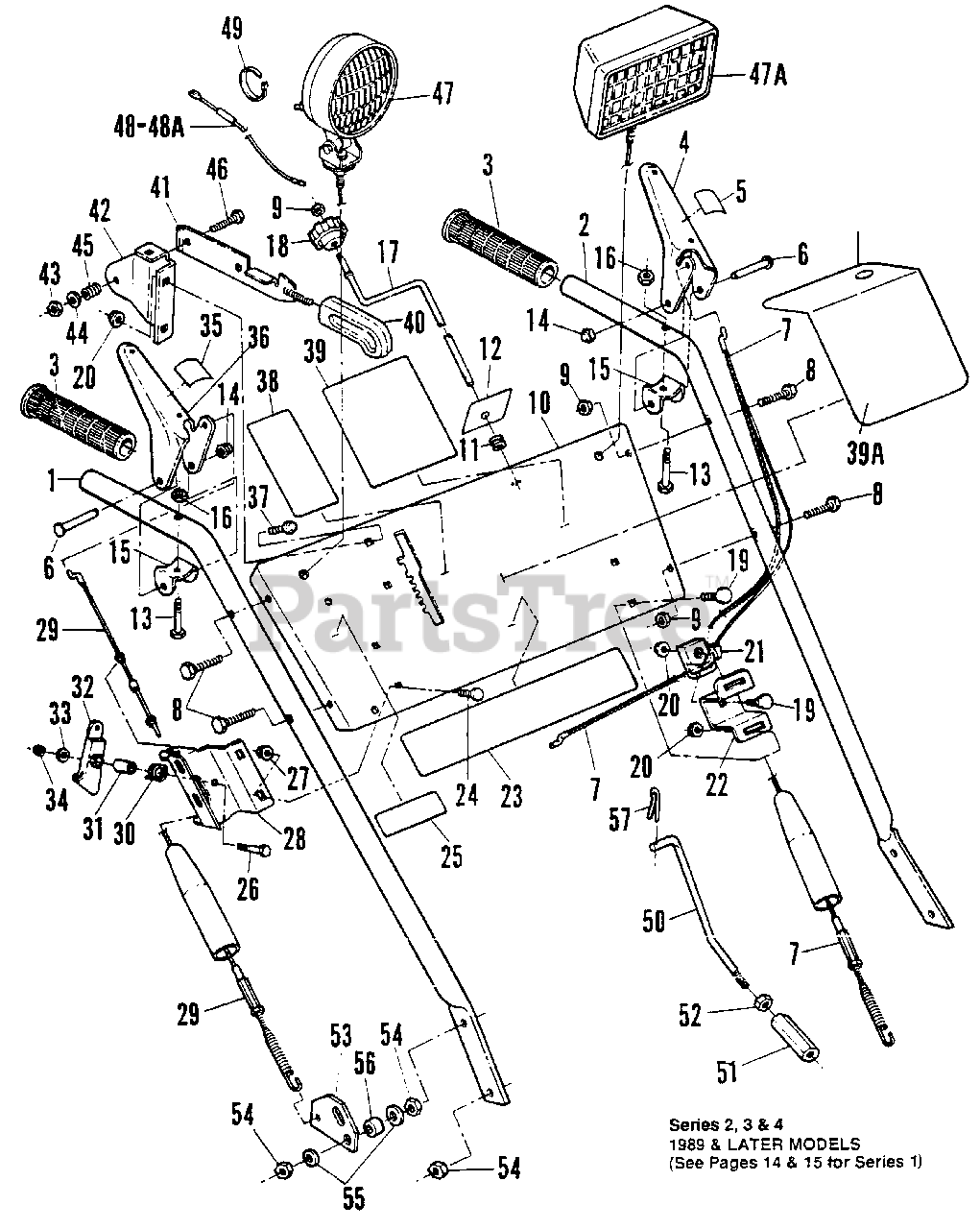

Handle, Controls (Series 2 & Later) Parts Diagram

  • Title

1

Snapper 7039973

BAR, Handle
(Superseded to 7052028YP)

Note: (Right Side) (Series 2)

$222.99

$

In Stock, only 2 left!

0

Snapper 7032922

BAR, Handle
(Superseded to 7052028YP)

Note: (Right Side) (Used on Series 3 & 4 Models; black zinc coated.)

$222.99

$

In Stock, only 2 left!

0

2

Snapper 7039972

BAR, Handle
(Superseded to 7052029YP)

Note: (Left Side) (Series 2)

$231.99

$

Usually ships in 2-12 days

0

Snapper 7032923

BAR, Handle
(Superseded to 7052029YP)

Note: (Left Side) (Used on Series 3 & 4 Models; black zinc coated.)

$231.99

$

Usually ships in 2-12 days

0

3

Snapper 7011870

GRIP, Handle
(Superseded to 1726317SM)

$8.49

$

In Stock, only 1 left!

0

4

Snapper 7032907

HANDLE, Left Side
(Superseded to 7032907YP)

Note: Was 39771 (Series 2)

$29.99

$

Usually ships in 2-12 days

0

Snapper 7032907

HANDLE, Left Side
(Superseded to 7032907YP)

Note: (Used on Series 3 & 4 Models; black zinc coated.)

$29.99

$

Usually ships in 2-12 days

0

5

Snapper 7013925

DECAL, Traction Clutch

Note: (Series 2)

$

$

Not available

Snapper 7016573

DECAL, Traction Clutch

Note: (Series 3 & 4)

$

$

Currently unavailable

6

Snapper 7015167

PIN, 1/4 x 1-7/8" Clevis

Note: (Series 2)

$

$

Not available

Snapper 7016297

PIN, 1/4 x 1-7/8" Clevis

Note: (Used on Series 3 & 4 Models; black zinc coated.)

$

$

Not available

7

Snapper 7018983

CABLE, Left Side Clutch
(Superseded to 7016311YP)

Note: (Series 2)

$53.99

$

Usually ships in 2-12 days

0

Snapper 7016311

CABLE, Left Side Clutch
(Superseded to 7016311YP)

Note: (Used on Series 3 & 4 Models; black zinc coated.)

$53.99

$

Usually ships in 2-12 days

0

8

Snapper 7091540

SCREW, 5/16-18 x 1-1/2" Hex Head Cap
(Superseded to 703906)

Note: Was 90211 (Series 2)

$4.99

$

In Stock, only 4 left!

0

Snapper 7091540

SCREW, 5/16-18 x 1-1/2" Hex Head Cap
(Superseded to 703906)

Note: Was 91066 (Used on Series 3 & 4 Models; black zinc coated.)

$4.99

$

In Stock, only 4 left!

0

9

Snapper 7091575

NUT, 5/16-18 Hex Center Lock
(Superseded to 703164)

Note: Was 90184 (Series 2)

$3.49

$

In Stock, Qty 20+

0

Snapper 7091575

NUT, 5/16-18 Hex Center Lock
(Superseded to 703164)

Note: Was 91067 (Used on Series 3 & 4 Models; black zinc coated.)

$3.49

$

In Stock, Qty 20+

0

10

Snapper 7035124

PANEL, Control
(Superseded to 7035124YP)

Note: (Series 2)

$86.99

$

Usually ships in 2-12 days

0

Snapper 30009

PANEL, Control

Note: (8 HP Engines) (Used on Series 3 & 4 Models; black zinc coated.)

$

$

Currently unavailable

Snapper 30006

PANEL, Control

Note: (10 HP Engines) (Used on Series 3 & 4 Models; black zinc coated.)

$

$

Currently unavailable

11

Snapper 7012117

BUSHING
(Superseded to 7012117SM)

$4.49

$

In Stock, Qty 13

0

12

Snapper 7014630

DECAL, Chute Control

$

$

Not available

13

Snapper 7090552

SCREW, 1/4-28 x 1-3/8" Hex Head Cap
(Superseded to 703828)

Note: (Series 2)

$3.99

$

Usually ships in 2-12 days

0

Snapper 7091025

SCREW, 1/4-28 x 1-3/8" Hex Head Cap
(Superseded to 7091025YP)

Note: (Used on Series 3 & 4 Models; black zinc coated.)

$3.99

$

Usually ships in 2-12 days

0

14

Snapper 7091020

NUT, 1/4 Push
(Superseded to 7091020YP)

Note: Was 90489 (Series 2)

$4.49

$

In Stock, Qty 20+

0

Snapper 7091020

NUT, 1/4 Push
(Superseded to 7091020YP)

Note: (Used on Series 3 & 4 Models; black zinc coated.)

$4.49

$

In Stock, Qty 20+

0

15

Snapper 7032921

BRACKET, Handle
(Superseded to 7032921YP)

Note: Was 32119 (Series 2)

$11.99

$

Usually ships in 2-12 days

0

Snapper 7032921

BRACKET, Handle
(Superseded to 7032921YP)

Note: (Used on Series 3 & 4 Models; black zinc coated.)

$11.99

$

Usually ships in 2-12 days

0

16

Snapper 7090303

NUT, 1/4-28 Hex Top Lock
(Superseded to 703972)

$3.49

$

In Stock, Qty 8

0

17

Snapper 7014298

CRANK, Chute

Note: (Series 2)

$10.99

$

Usually ships in 2-12 days

0

Snapper 7016305

CRANK, Chute

Note: (Used on Series 3 & 4 Models; black zinc coated.)

$

$

Currently unavailable

18

Snapper 7013901

KNOB, Chute Crank
(Superseded to 7013901YP)

$8.99

$

Usually ships in 2-12 days

0

19

Snapper 7091530

BOLT, 1/4-20 x 3/4" Carriage
(Superseded to 7091530SM)

Note: Was 90074 (Series 2)

$3.99

$

In Stock, only 4 left!

0

Snapper 7091064

BOLT, 1/4-20 x 3/4" Carriage
(Superseded to 7091064YP)

Note: (Used on Series 3 & 4 Models; black zinc coated.)

$3.99

$

In Stock, only 3 left!

0

20

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Was 90583 (Series 2)

$4.49

$

In Stock, Qty 10

0

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Was 91065 (Used on Series 3 & 4 Models; black zinc coated.)

$4.49

$

In Stock, Qty 10

0

21

Snapper 7015960

GUIDE, Cable
(Superseded to 7015960YP)

$6.99

$

Usually ships in 2-12 days

0

22

Snapper 7032651

BRACKET, Cable Guide Support

$

$

Not available

23

Snapper 7019295

DECAL, SNAPPER
(Superseded to 7019295YP)

Note: Was 18593 (Series 2)

$13.99

$

In Stock, only 4 left!

0

Snapper 7019295

DECAL, SNAPPER
(Superseded to 7019295YP)

Note: Was 16648 (Series 3)

$13.99

$

In Stock, only 4 left!

0

24

Snapper 7091085

BOLT, #10-24 x 1/2" Hex Flange Lock
(Superseded to 7091085YP)

Note: Was 90960 (Series 2)

$4.49

$

In Stock, Qty 20+

0

Snapper 7091085

BOLT, #10-24 x 1/2" Hex Flange Lock
(Superseded to 7091085YP)

Note: (Used on Series 3 & 4 Models; black zinc coated.)

$4.49

$

In Stock, Qty 20+

0

25

Snapper 7015389

DECAL, 824

Note: (Series 2 & 3)

$

$

Not available

Snapper 7015390

DECAL, 826

Note: (Series 2 & 3)

$5.99

$

In Stock, only 1 left!

0

Snapper 7015391

DECAL, 1030

Note: (Series 2 & 3)

$

$

Currently unavailable

Snapper 7052028

ASSEMBLY, Handle Bar
(Superseded to 7052028YP)

Note: (Right Side) (Includes Items 1, 13, 15 & 16) (Series 3 & 4)

$222.99

$

In Stock, only 2 left!

0

Snapper 7052029

ASSEMBLY, Handle Bar
(Superseded to 7052029YP)

Note: (Left Side) (Includes Items 2, 13, 15 & 16) (Series 3 & 4)

$231.99

$

Usually ships in 2-12 days

0

26

Snapper 7027230

SCREW, 1/4-20 x 1" Hex Head Cap
(Superseded to 703820)

Note: Was 90548

$3.99

$

In Stock, only 4 left!

0

27

Snapper 7090623

NUT, #10-24 Hex Flange Lock
(Superseded to 703917)

$3.49

$

In Stock, Qty 20+

0

28

Snapper 7038352

BRACKET
(Superseded to 7038352YP)

$23.99

$

Usually ships in 2-12 days

0

29

Snapper 7016310

CABLE, Auger
(Superseded to 7016310YP)

Note: Was 18984 (Right Side)

$

$

Not available

Snapper 7016310

CABLE, Auger
(Superseded to 7016310YP)

Note: (Right Side)

$

$

Not available

30

Snapper 7015966

SPRING

$

$

Not available

31

Snapper 7015969

SPACER
(Superseded to 7015969YP)

$4.49

$

Usually ships in 2-12 days

0

32

Snapper 7018980

LOCK, Cam
(Superseded to 7018980YP)

$92.99

$

Usually ships in 2-12 days

0

33

Snapper 7091294

WASHER, 1/4 Flat
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0

34

Snapper 7090372

NUT, 1/4-20 Hex Center Lock
(Superseded to 703954)

$

$

Not available

35

Snapper 7013926

DECAL, Blower Clutch

Note: (Series 2)

$

$

Not available

Snapper 7016574

DECAL, Blower Clutch

Note: (Series 3 & 4)

$

$

Not available

36

Snapper 7032908

HANDLE, Right Side

Note: Was 39772 (Series 2)

$

$

Not available

Snapper 7032908

HANDLE, Right Side

Note: (Series 3 & 4)

$

$

Not available

37

Snapper 7091604

BOLT, 1/4-20 x 1/2" Short Neck Carriage
(Superseded to 703978)

Note: Was 90005 (Series 2)

$3.99

$

In Stock, Qty 20+

0

38

Snapper 7013927

DECAL, Direction Control

$

$

Not available

39

Snapper 7013928

DECAL, Instruction
(Superseded to 7073461SM)

$4.99

$

Usually ships in 2-12 days

0

39A

Snapper 7024771

DECAL, Instruction 826

Note: (Series 4)

$

$

Currently unavailable

Snapper 7024772

DECAL, Instruction 1030

Note: (Series 4)

$

$

Currently unavailable

40

Snapper 7012659

KNOB, Shift Handle
(Superseded to 7012659SM)

Note: (Series 2)

$

$

Not available

Snapper 7016334

KNOB, Shift Handle
(Superseded to 7016334YP)

Note: (Series 3 & 4)

$3.49

$

Usually ships in 2-12 days

0

41

Snapper 7040503

HANDLE, Shift
(Superseded to 7040503YP)

Note: (Series 2)

$19.99

$

Usually ships in 2-12 days

0

Snapper 7040660

HANDLE, Shift

Note: (Series 3 & 4)

$

$

Not available

42

Snapper 7037962

BRACKET, Shift Lever
(Superseded to 7037962YP)

$20.99

$

Usually ships in 2-12 days

0

43

Snapper 7090222

NUT, 5/16-24 Hex Center Lock
(Superseded to 703896)

Note: (Series 1 & 2)

$3.49

$

In Stock, Qty 20+

0

Snapper 7091606

NUT, 5/16-24 Hex Center Lock
(Superseded to 703896)

Note: Was 91074 (Used on Series 3 & 4 Models; black zinc coated.)

$3.49

$

In Stock, Qty 20+

0

44

Snapper 7090188

WASHER, 5/16 Flat
(Superseded to 703350)

Note: (Series 2)

$4.49

$

In Stock, only 2 left!

0

Snapper 7091076

WASHER, 5/16 Flat
(Superseded to 703350)

Note: (Used on Series 3 & 4 Models; black zinc coated.)

$4.49

$

In Stock, only 2 left!

0

45

Snapper 7023933

SPRING
(Superseded to 7023933YP)

$4.49

$

Usually ships in 2-12 days

0

46

Snapper 7090240

SCREW, 5/16-24 x 1-1/4" Hex Head Cap
(Superseded to 703568)

$4.99

$

Usually ships in 2-12 days

0

47

Snapper 7018698

ASSEMBLY, Light

Note: (10 HP Engines Only) (Series 2 & 3)

$

$

Not available

47A

Snapper 24492

ASSEMBLY, Light

Note: (Rectangular) (Series 4)

$

$

Currently unavailable

48

Snapper 7014936

HARNESS, Wiring

Note: (10 HP Engines Only) (Series 2 & 3)

$

$

Not available

48A

HARNESS, Wiring

Note: (Series 4)

$

$

Not available

49

Snapper 7014940

TIE, Cable

Note: (10 HP Engines Only)

$

$

Not available

50

Snapper 7016312

ROD, Upper Shift
(Superseded to 7016312YP)

Note: (Series 3 & 4)

$16.99

$

Usually ships in 2-12 days

0

51

Snapper 7016304

NUT, 3/8-16 x 1-13/16 Connector
(Superseded to 7016304YP)

$7.49

$

Usually ships in 2-12 days

0

52

Snapper 7091302

NUT, 3/8-16 Hex
(Superseded to 7091302SM)

Note: Was 91071

$4.49

$

Usually ships in 2-12 days

0

53

Snapper 7032131

LEVER, Clutch
(Superseded to 7032131YP)

Note: (Series 2)

$31.99

$

Usually ships in 2-12 days

0

Snapper 7032910

LEVER, Clutch
(Superseded to 7032910YP)

Note: (Used on Series 3 & 4 Models; black zinc coated.)

$19.99

$

Usually ships in 2-12 days

0

54

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 12625 (Series 2)

$5.49

$

In Stock, Qty 20+

0

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 91070 (Used on Series 3 & 4 Models; black zinc coated.)

$5.49

$

In Stock, Qty 20+

0

55

Snapper 7016314

WASHER, 5/16" x 1-1/4" x 3/32" Flat
(Superseded to 7016314YP)

Note: Was 13848 (Series 2)

$5.49

$

Usually ships in 2-12 days

0

Snapper 7016314

WASHER, 5/16 x 1-1/4" Flat
(Superseded to 7016314YP)

Note: (Used on Series 3 & 4 Models; black zinc coated.)

$5.49

$

Usually ships in 2-12 days

0

56

Snapper 7013849

SPACER, 5/16
(Superseded to 703970)

$4.49

$

Usually ships in 2-12 days

0

57

Snapper 7091598

PIN, 1/8 x 1" Cotter
(Superseded to 703958)

Note: Was 90041

$4.49

$

In Stock, only 4 left!

0
