G 10000 (84745) - Snapper 1,000 Watt Portable Generator, 2.5hp GENERATOR MAIN UNIT PT. 1 Parts Diagram

1,000 Watt Portable Generator, 2.5hp

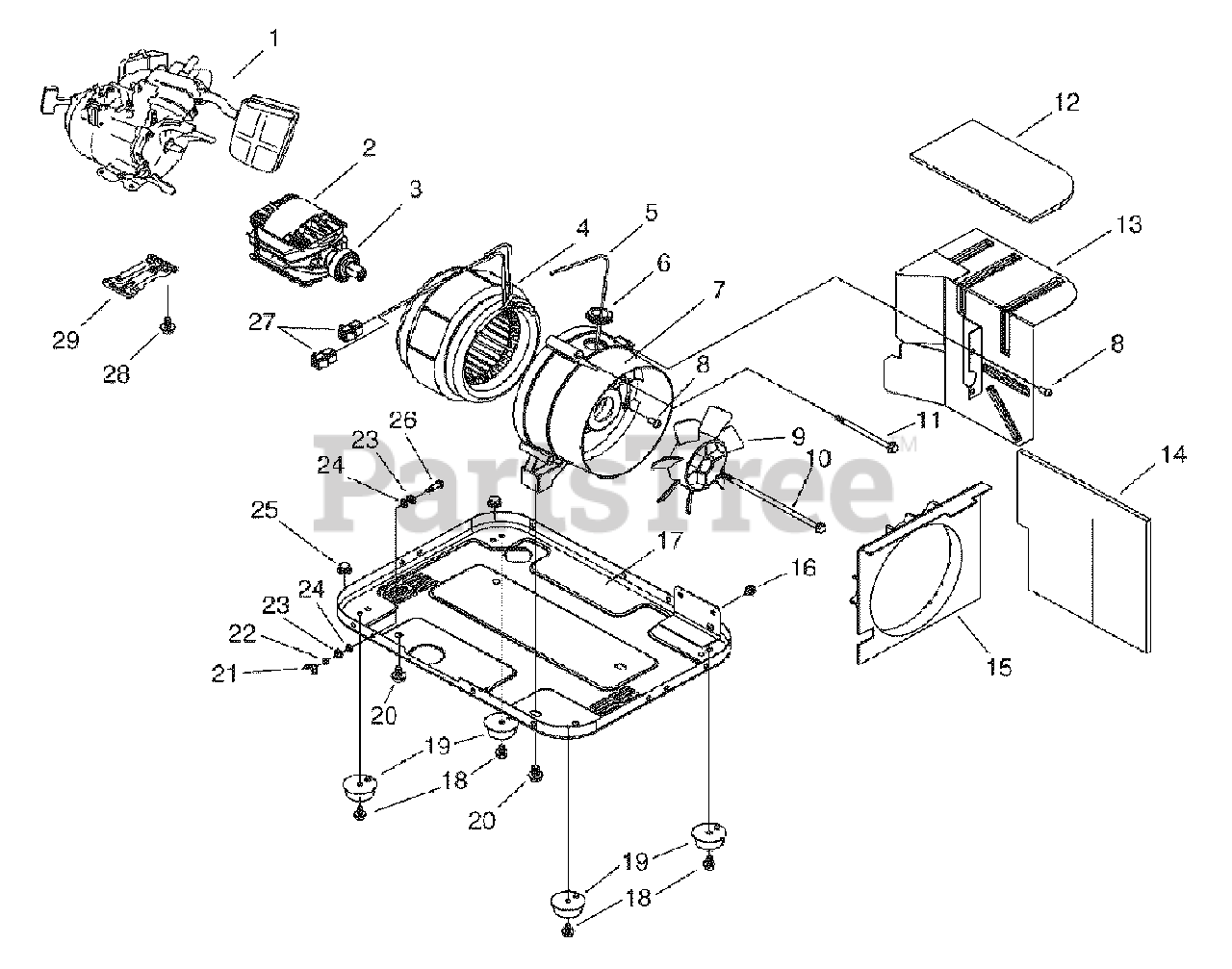

GENERATOR MAIN UNIT PT. 1 Parts Diagram

  • Title

1

ENGINE, MITSUBISHI, 2.4 HP

Note: NSP

$

$

Not available

2

Snapper 187378GS

ROTOR

$140.99

$

Usually ships in 2-12 days

0

3

Snapper 187411GS

BEARING

$68.99

$

Usually ships in 2-12 days

0

4

Snapper 187379GS

STATOR

$173.99

$

Usually ships in 2-12 days

0

5

Snapper 187430GS

LEAD, GREEN

$11.99

$

Usually ships in 2-12 days

0

6

Snapper 187409GS

BUSHING, LEAD WIRE, G790B

$6.49

$

Usually ships in 2-12 days

0

7

Snapper 187381GS

RBC, 1K

$113.99

$

Usually ships in 2-12 days

0

8

Snapper 187399GS

SCREW, SELF TAP, M6-12

$2.49

$

Usually ships in 2-12 days

0

9

Snapper 187382GS

FAN, COOLING

$22.99

$

Usually ships in 2-12 days

0

10

Snapper 187388GS

BOLT, ROTOR

$19.99

$

Usually ships in 2-12 days

0

11

Snapper 187389GS

BOLT, STATOR

$5.99

$

Usually ships in 2-12 days

0

12

Snapper 187405GS

INSULATON, HEAT SEALED, #1

$19.99

$

Usually ships in 2-12 days

0

13

Snapper 187384GS

MFFLR, SEALED

$64.99

$

Usually ships in 2-12 days

0

14

Snapper 187407GS

INSULATON, HEAT SEALED, #2

$30.99

$

Usually ships in 2-12 days

0

15

Snapper 187403GS

DUCT, AIR

$50.99

$

Usually ships in 2-12 days

0

16

Snapper 187392GS

PAN HEAD MACHINE SCREW, M6-1.0, W/L/FW

$1.99

$

Usually ships in 2-12 days

0

17

Snapper 187383GS

BASE, GENERATOR

$113.99

$

Usually ships in 2-12 days

0

18

Snapper 187390GS

BOLT, FLANGE, M6-1.0 X 10

$2.99

$

Usually ships in 2-12 days

0

19

Snapper 187385GS

MOUNT, VIBRATION

$18.99

$

Usually ships in 2-12 days

0

20

Snapper 187427GS

HEX HEAD CAP SCREW, FLANGE, M8-1.25 X 12

$2.99

$

Usually ships in 2-12 days

0

21

Snapper 187424GS

NUT, WING, M5 X 0.8

$2.99

$

Usually ships in 2-12 days

0

22

Snapper 187423GS

NUT, M5 X 0.8

$1.99

$

Usually ships in 2-12 days

0

23

Snapper 187419GS

WASHER, LOCK

$1.99

$

Usually ships in 2-12 days

0

24

Snapper 187420GS

WASHER, FLAT

$1.99

$

Usually ships in 2-12 days

0

25

Snapper 187401GS

NUT, MT-1.25, FLANGE

$2.99

$

Usually ships in 2-12 days

0

26

Snapper 187415GS

PAN HEAD MACHINE SCREW, M5-0.8 X 20

$1.99

$

Usually ships in 2-12 days

0

27

Snapper 187413GS

CONNECTOR

$8.49

$

Usually ships in 2-12 days

0

28

Snapper 187434GS

HEX HEAD CAP SCREW, FLANGE
(Superseded to 711487)

$4.49

$

Usually ships in 2-12 days

0

29

Snapper 187431GS

STAND, ENGINE

$124.99

$

Usually ships in 2-12 days

0
