FZ790D-AS03 - Kawasaki Engine VALVE/CAMSHAFT Parts Diagram

Engine

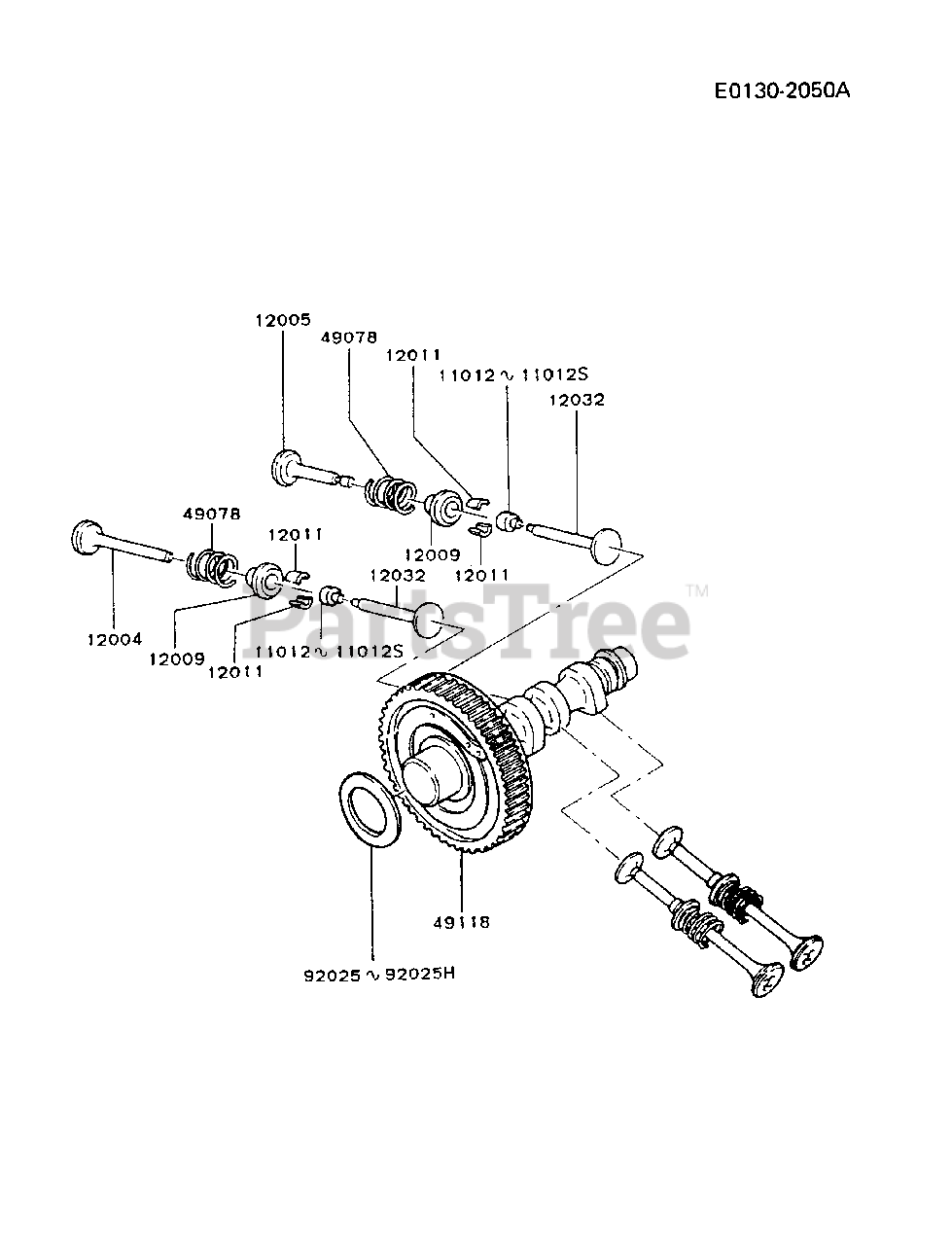

VALVE/CAMSHAFT Parts Diagram

  • Title
11012

Kawasaki 11012-2006

CAP,T=2.70
(Superseded to 316670-2260A)

$

$

Not available

11012A

Kawasaki 11012-2007

CAP,T=2.75
(Superseded to 316670-2261A)

$

$

Not available

11012B

Kawasaki 11012-2008

CAP,T=2.80

$

$

Not available

11012C

Kawasaki 11012-2009

CAP,T=2.85
(Superseded to 316670-2263A)

$

$

Not available

11012D

Kawasaki 11012-2010

CAP,T=2.90
(Superseded to 316670-2264A)

$5.49

$

Usually ships in 2-5 days

0

11012E

Kawasaki 11012-2011

CAP,T=2.95
(Superseded to 316670-2265A)

$5.49

$

Usually ships in 2-5 days

0

11012F

Kawasaki 11012-2012

CAP,T=3.00
(Superseded to 316670-2266A)

$5.49

$

Usually ships in 2-5 days

0

11012G

Kawasaki 11012-2013

CAP,T=3.05

$

$

Not available

11012H

Kawasaki 11012-2014

CAP,T=3.10
(Superseded to 316670-2268A)

$9.99

$

Usually ships in 2-5 days

0

11012I

Kawasaki 11012-2015

CAP,T=3.15
(Superseded to 316670-2269A)

$

$

Not available

11012J

Kawasaki 11012-2016

CAP,T=3.20
(Superseded to 316670-2270A)

$9.99

$

Usually ships in 2-5 days

0

11012K

Kawasaki 11012-2017

CAP,T=3.25
(Superseded to 316670-2271A)

$5.49

$

Usually ships in 2-5 days

0

11012L

Kawasaki 11012-2018

CAP,T=3.30
(Superseded to 316670-2272A)

$5.49

$

Usually ships in 2-5 days

0

11012M

Kawasaki 11012-2019

CAP,T=3.35

$

$

Not available

11012N

Kawasaki 11012-2020

CAP,T=3.40

$

$

Not available

11012O

Kawasaki 11012-2021

CAP,T=3.45
(Superseded to 316670-2275A)

$5.49

$

Usually ships in 2-5 days

0

11012P

Kawasaki 11012-2022

CAP,T=3.50

$

$

Not available

11012Q

Kawasaki 11012-2023

CAP,T=3.55

$

$

Not available

11012R

Kawasaki 11012-2024

CAP,T=3.60

$

$

Not available

11012S

Kawasaki 11012-2025

CAP,T=3.65

$

$

Not available

12004

Kawasaki 12004-2086

VALVE-INTAKE
(Superseded to 12004-2009)

$33.99

$

In Stock, only 1 left!

0

12005

Kawasaki 12005-2059

VALVE-EXHAUST
(Superseded to 12005-2008)

$

$

Not available

12009

Kawasaki 12009-2004

RETAINER-VALVE SPRING

$

$

Not available

12011

Kawasaki 12011-2054

COLLET
(Superseded to 12011-2005)

$

$

Not available

12032

$

$

Not available

49078

Kawasaki 49078-2008

SPRING-ENGINE VALVE

$

$

Not available

49118

Kawasaki 49118-6035

CAMSHAFT-COMP

$

$

Not available

92025

Kawasaki 92025-2060

SHIM,T=1.05

$

$

Not available

92025A

Kawasaki 92025-2061

SHIM,T=1.10

$

$

Not available

92025B

Kawasaki 92025-2062

SHIM,T=1.20

$

$

Not available

92025C

Kawasaki 92025-2063

SHIM,T=1.30

$

$

Not available

92025D

Kawasaki 92025-2064

SHIM,T=1.40

$

$

Not available

92025E

Kawasaki 92025-2065

SHIM,T=1.50

$

$

Not available

92025F

Kawasaki 92025-2066

SHIM,T=1.60

$

$

Not available

92025G

Kawasaki 92025-2067

SHIM,T=1.70

$

$

Not available

92025H

Kawasaki 92025-2068

SHIM,T=1.80

$

$

Not available
