FZ790D-AS03 - Kawasaki Engine STARTER Parts Diagram

Engine

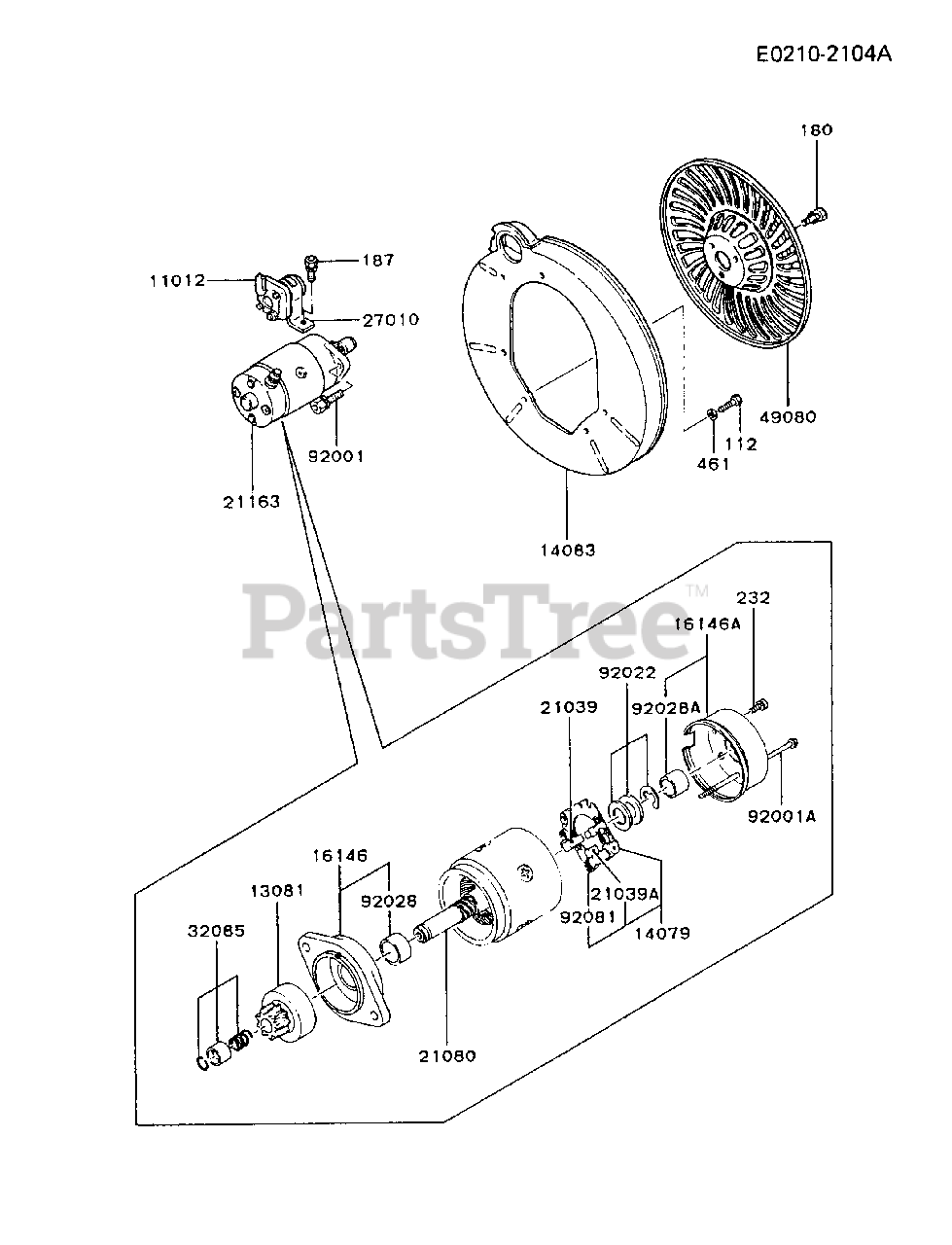

STARTER Parts Diagram

  • Title

11012

Kawasaki 11012-2104

CAP

$

$

Currently unavailable

13081

Kawasaki 13081-2006

CLUTCH-ASSY
(Superseded to 317221-8312A)

$

$

Not available

14079

Kawasaki 14079-2003

HOLDER-ASSY
(Superseded to 317299-8350-01)

$

$

Not available

14083

Kawasaki 14083-2004

COVER-FLYWHEEL
(Superseded to 317370-4129B)

$

$

Not available

16146

Kawasaki 16146-2006

COVER-ASSY

$

$

Not available

16146A

Kawasaki 16146-2011

COVER-ASSY

$

$

Not available

21039

Kawasaki 21039-2004

BRUSH
(Superseded to 319203-8325-00)

$

$

Not available

21039A

Kawasaki 21039-2005

BRUSH
(Superseded to 319203-8326-00)

$

$

Not available

21080

Kawasaki 21080-2006

ARMATURE

$

$

Not available

21163

Kawasaki 21163-2060

STARTER-ELECTRIC

$

$

Not available

27010

Kawasaki 27010-2068

SWITCH
(Superseded to 317221-8340A)

$

$

Not available

32085

Kawasaki 32085-2001

STOPPER

$

$

Not available

49080

Kawasaki 49080-2094-9E

PULLEY-STARTING

$

$

Not available

92001

Kawasaki 92001-2038

BOLT

$

$

Not available

92001A

Kawasaki 92001-2040

BOLT

$

$

Not available

92022

Kawasaki 92022-2085

WASHER

$

$

Not available

92028

Kawasaki 92028-2009

BUSHING

$

$

Not available

92028A

Kawasaki 92028-2013

BUSHING

$

$

Not available

92081

Kawasaki 92081-2037

SPRING

$

$

Not available

112

Kawasaki 112B0614

BOLT-UPSET
(Superseded to 112AA0614)

$0.99

$

Usually ships in 2-5 days

0

180

Kawasaki 180B0814

BOLT-UPSET-WS

$

$

Not available

187

Kawasaki 187B0614

BOLT-UPSET-WSP
(Superseded to 187AA0614)

$1.99

$

In Stock, only 1 left!

0

232

Kawasaki 232B0412

SCREW-PAN-WS+-
(Superseded to 223B0412A)

$4.49

$

Usually ships in 2-5 days

0

461

Kawasaki 461F0600

WASHER-SPRING
(Superseded to 461DA0600)

$0.99

$

In Stock, Qty 6

0
