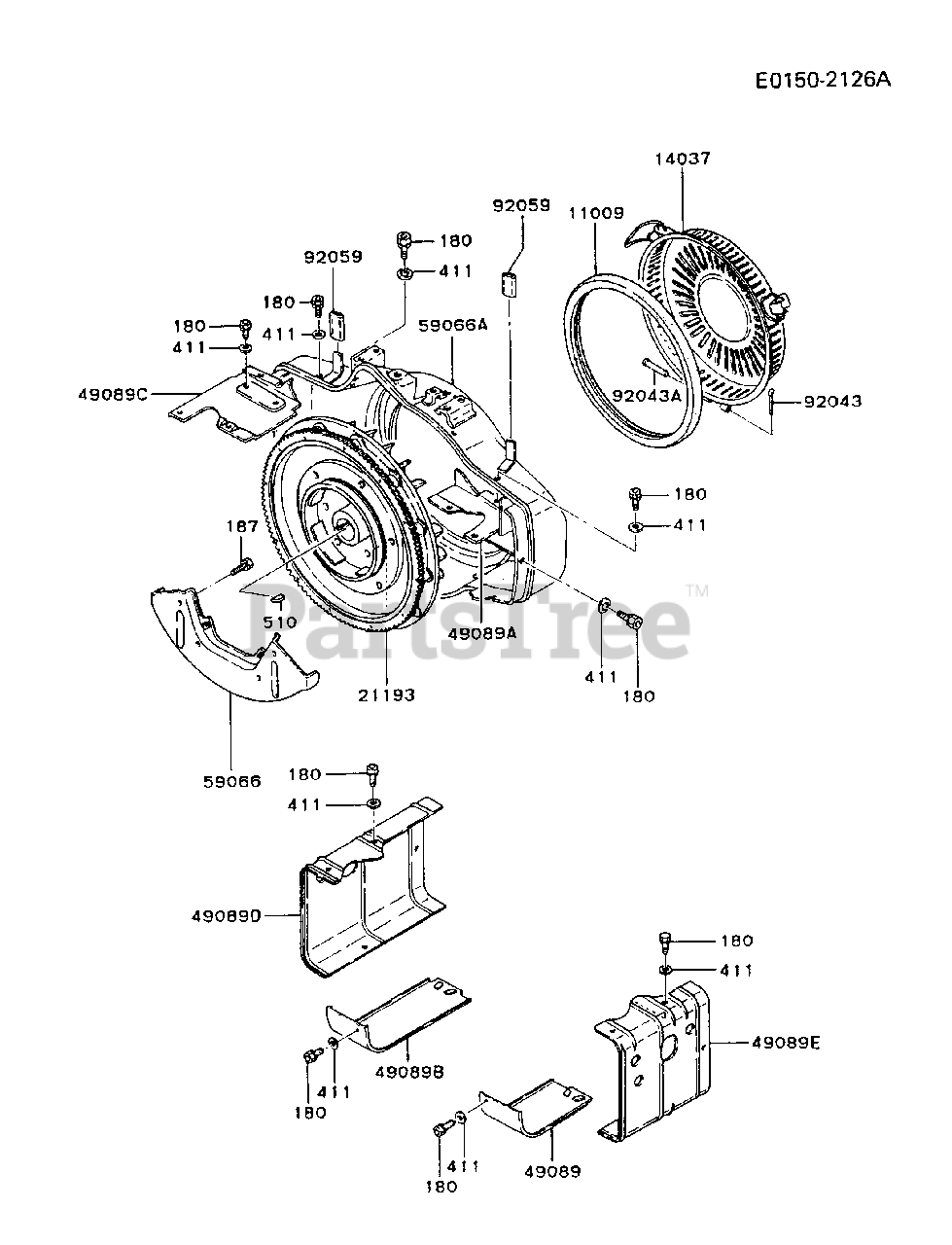

FZ790D-AS03 - Kawasaki Engine COOLING-EQUIPMENT Parts Diagram

Engine

COOLING-EQUIPMENT Parts Diagram

  • Title
11009

$

$

Not available

14037

$

$

Not available

21193

Kawasaki 21193-6009

FLYWHEEL-ASSY

$

$

Not available

49089

Kawasaki 49089-2073-9H

SHROUD-ENGINE

$

$

Not available

49089A

Kawasaki 49089-2074-9H

SHROUD-ENGINE

$

$

Not available

49089B

Kawasaki 49089-2075-9H

SHROUD-ENGINE

$

$

Not available

49089C

Kawasaki 49089-2076-9H

SHROUD-ENGINE

$

$

Not available

49089D

Kawasaki 49089-2077-9H

SHROUD-ENGINE

$

$

Not available

49089E

Kawasaki 49089-2078-9H

SHROUD-ENGINE

$

$

Not available

59066

$

$

Not available

59066A

$

$

Not available

92043

Kawasaki 39092-2001

PIN
(Superseded to 395300-6722-01)

$0.99

$

Usually ships in 2-5 days

0

92043A

$

$

Not available

92059

Kawasaki 92059-2009

TUBE,9X10X40

$

$

Not available

180

Kawasaki 180B0614

BOLT-UPSET-WS
(Superseded to 180AA0614)

$5.49

$

Usually ships in 2-5 days

0

187

Kawasaki 187B0614

BOLT-UPSET-WSP
(Superseded to 187AA0614)

$1.99

$

In Stock, only 1 left!

0

411

Kawasaki 411B0600

WASHER-PLAIN
(Superseded to 411AA0600)

$4.49

$

In Stock, Qty 12

0

510

Kawasaki 510A5200

KEY-WOODRUFF

$3.49

$

Usually ships in 2-5 days

0
