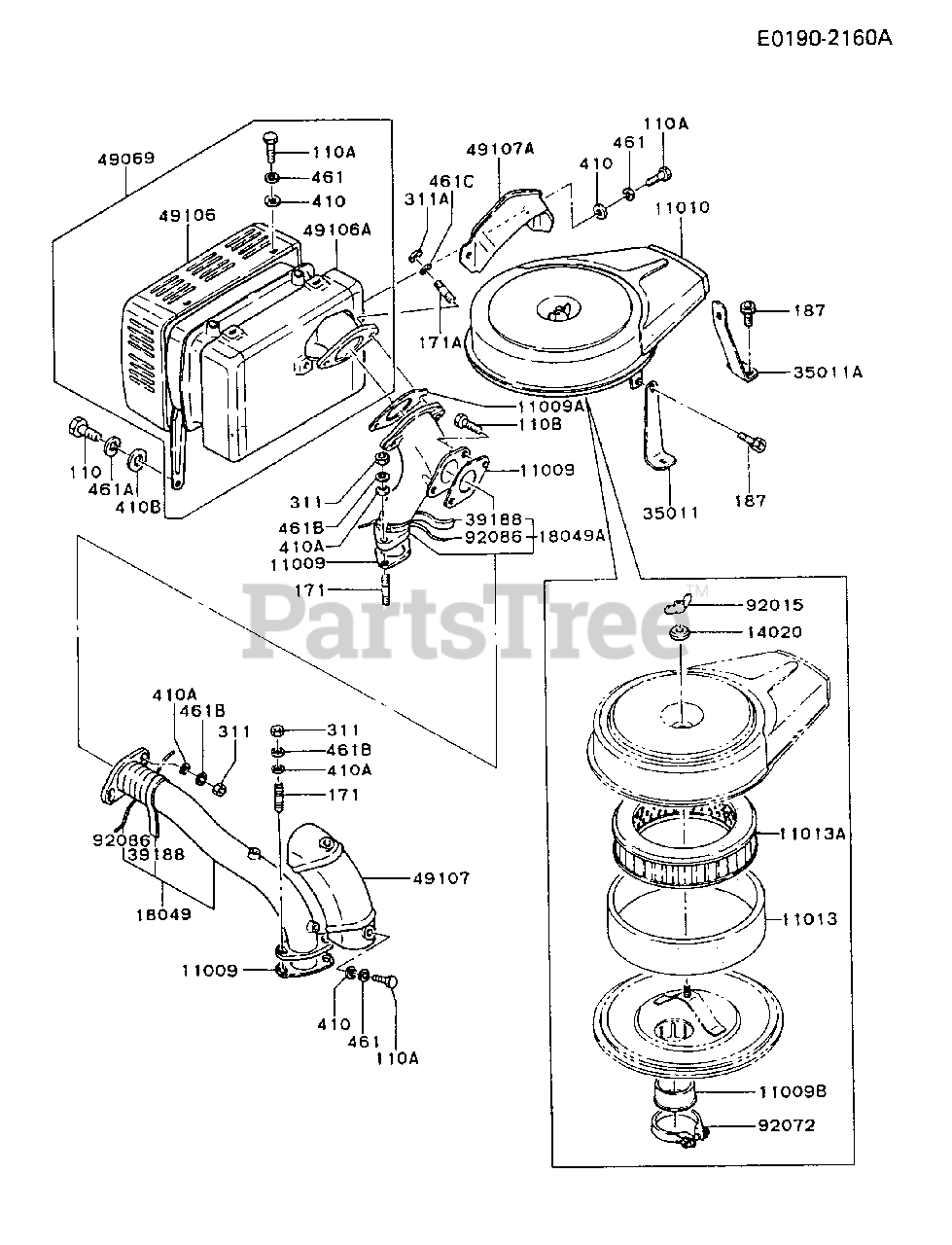

FZ790D-AS03 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

AIR-FILTER/MUFFLER Parts Diagram

  • Title
18049

Kawasaki 18049-6001-9Z

PIPE-EXHAUST

$

$

Not available

18049A

Kawasaki 18049-6002

PIPE-EXHAUST

$

$

Not available

35011

$

$

Not available

35011A

$

$

Not available

39188

$

$

Not available

49069

Kawasaki 49069-6128

MUFFLER-ASSY
(Superseded to 317472-1400B)

$

$

Not available

49106

Kawasaki 49106-2085-9Y

COVER-MUFFLER

$

$

Not available

49106A

Kawasaki 49106-2086-9Y

COVER-MUFFLER

$

$

Not available

49107

Kawasaki 49107-2055

COVER-EXHAUST PIPE

$

$

Not available

49107A

Kawasaki 49107-2015-9Y

COVER-EXHAUST PIPE

$

$

Not available

$

$

Not available

92072

$

$

Not available

92086

$

$

Not available

$

$

Not available

110A

Kawasaki 110R0610

BOLT
(Superseded to 110N0610)

$

$

Not available

110B

$

$

Not available

171

Kawasaki 171G0825

BOLT-STUD

$

$

Not available

171A

Kawasaki 171G1025

BOLT-STUD

$

$

Not available

187

Kawasaki 187B0614

BOLT-UPSET-WSP
(Superseded to 187AA0614)

$1.99

$

In Stock, only 1 left!

0

311

$

$

Not available

311A

$

$

Not available

410

Kawasaki 410B0600

W-PLAIN-S
(Superseded to 410AA0600)

$1.49

$

In Stock, Qty 5

0

410A

Kawasaki 410B0800

W-PLAIN-S
(Superseded to 410AA0800)

$0.99

$

Usually ships in 2-5 days

0

410B

Kawasaki 410B1000

W-PLAIN-S
(Superseded to 410AA1000)

$0.99

$

Usually ships in 2-5 days

0

461

Kawasaki 461F0600

WASHER-SPRING
(Superseded to 461DA0600)

$0.99

$

In Stock, Qty 6

0

461A

Kawasaki 461F1000

WASHER-SPRING
(Superseded to 461DA1000)

$0.99

$

Usually ships in 2-5 days

0

461B

Kawasaki 461S0800

WASHER-SPRING

$4.99

$

Usually ships in 2-5 days

0

461C

Kawasaki 461S1000

WASHER-SPRING
(Superseded to 461S1000A)

$5.49

$

Usually ships in 2-5 days

0

11009

$

$

Not available

11009A

$

$

Not available

11009B

$

$

Not available

11010

Kawasaki 11010-2067-9H

FILTER-ASSY-AIR

$

$

Not available

11013

Kawasaki 11013-2160

ELEMENT-AIR FILTER

$

$

Not available

11013A

Kawasaki 49064-2028

ELEMENT-AIR FILTER

$

$

Not available

14020

$

$

Not available
