FZ400D-ES00 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

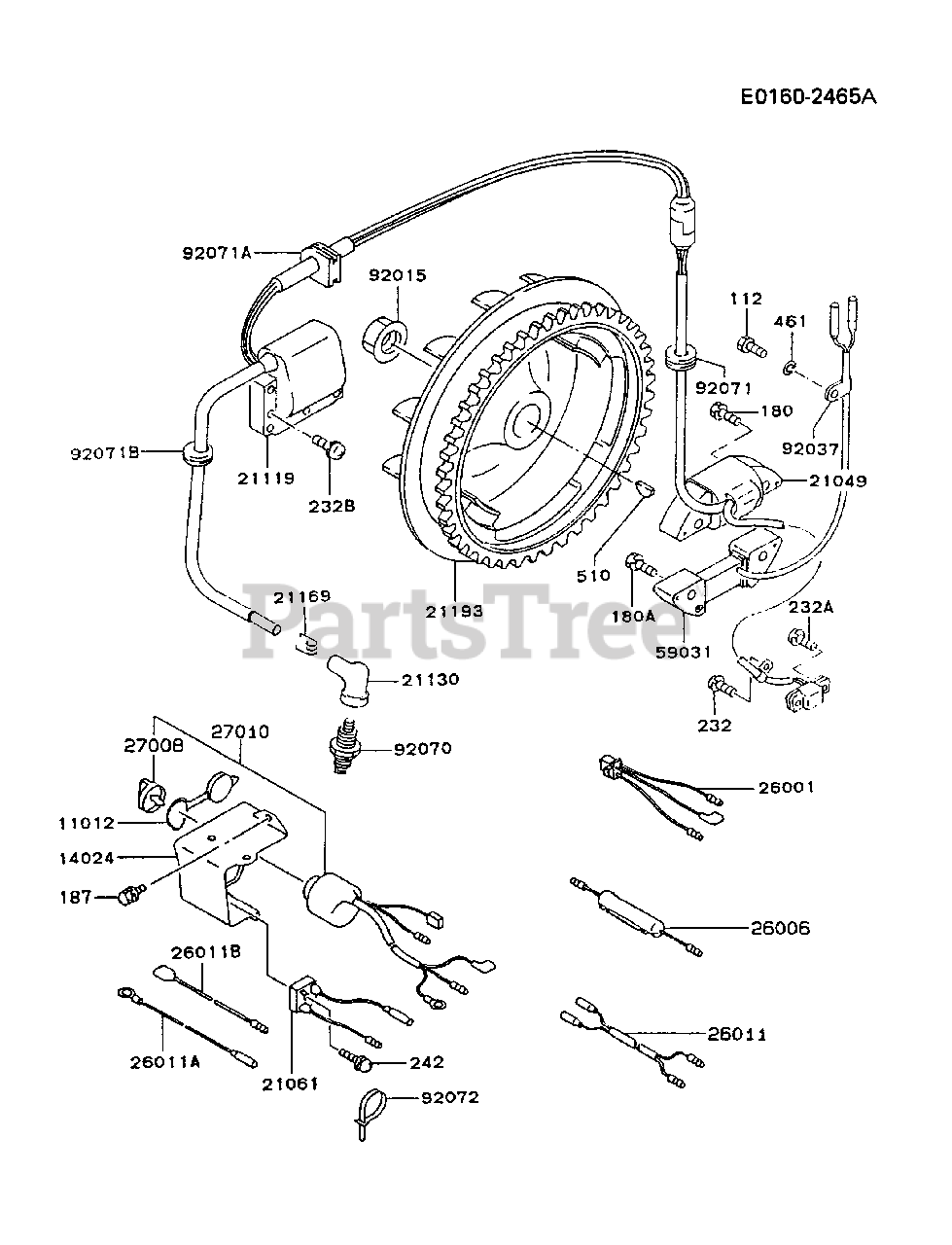

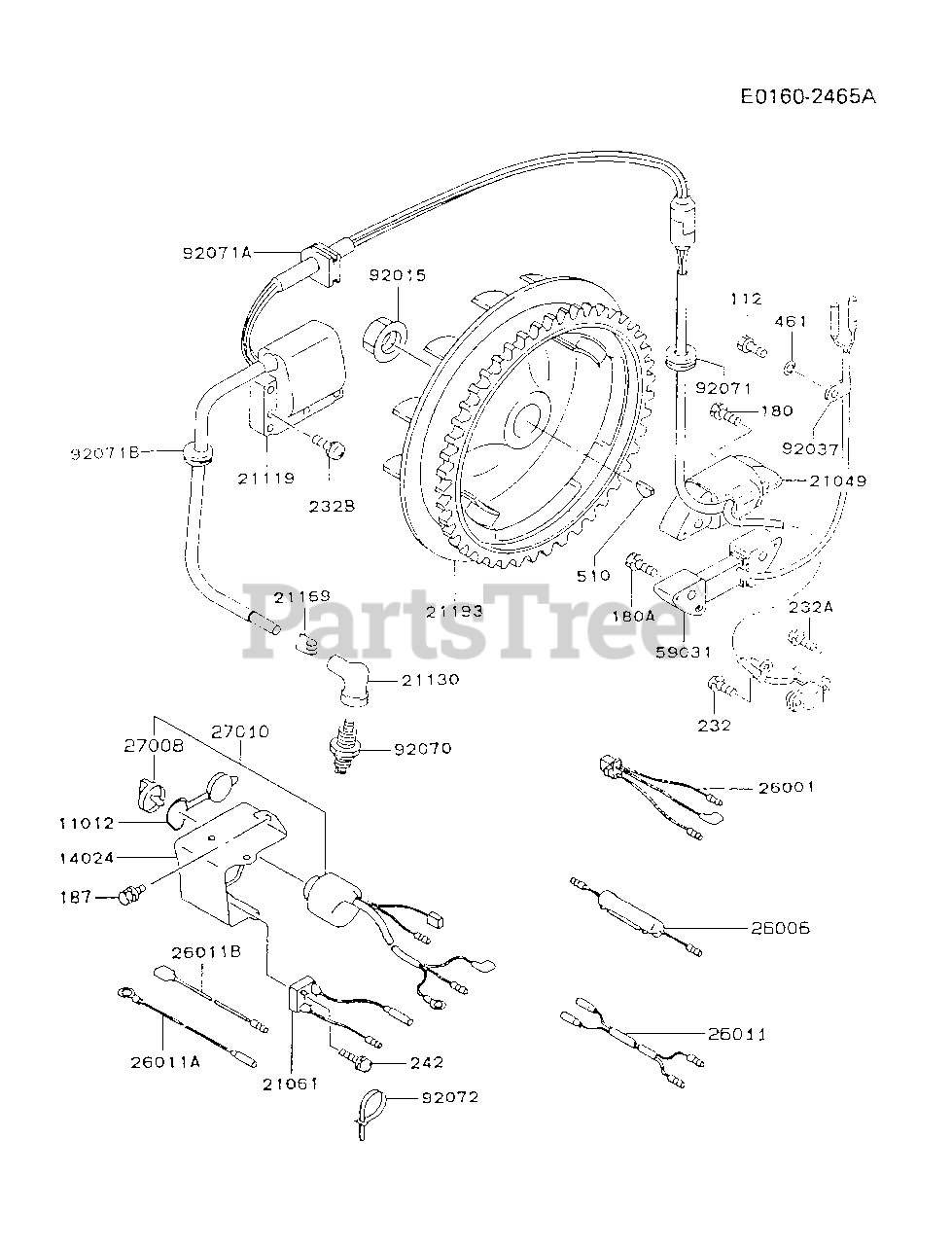

ELECTRIC-EQUIPMENT Parts Diagram

  • Title

11012

Kawasaki 11012-2103

CAP

$

$

Not available

14024

Kawasaki 14024-2186-9H

COVER

$

$

Not available

21049

Kawasaki 21049-2054

COIL-EXCITING
(Superseded to 317294-8105-00)

$

$

Not available

21061

Kawasaki 21061-2060

RECTIFIER
(Superseded to 21061-2001)

$66.99

$

Usually ships in 2-5 days

0

21119

Kawasaki 21119-2001

IGNITER
(Superseded to 317209-8465A)

$

$

Not available

21130

Kawasaki 21130-2066

CAP-SPARK PLUG
(Superseded to 21130-2001)

$2.49

$

In Stock, only 2 left!

0

21169

Kawasaki 21169-2004

TERMINAL
(Superseded to 21169-2057)

$

$

Not available

21193

Kawasaki 21193-2079

FLYWHEEL-ASSY

$

$

Not available

26001

Kawasaki 26001-2300

HARNESS

$

$

Not available

26006

Kawasaki 26006-2055

FUSE,5A

$

$

Not available

26011

Kawasaki 26011-2190

WIRE-LEAD

$

$

Not available

26011A

Kawasaki 26011-2053

WIRE-LEAD

$

$

Not available

26011B

Kawasaki 26011-2006

WIRE-LEAD

$

$

Not available

27008

Kawasaki 27008-2051

KEY-LOCK
(Superseded to 317241-8321B)

$

$

Not available

27010

Kawasaki 27005-2005

SWITCH
(Superseded to 316462-8320A)

$

$

Not available

59031

Kawasaki 59031-2001

COIL-CHARGING
(Superseded to 317220-8136-00)

$84.99

$

Usually ships in 2-5 days

0

92015

Kawasaki 92015-2010

NUT

$

$

Not available

92037

Kawasaki 92037-2015

CLAMP

$

$

Not available

92070

Kawasaki 92070-2054

PLUG-SPARK,B4H

Note: NGK

$

$

Not available

92071

Kawasaki 92071-2056

GROMMET

$

$

Not available

92071A

Kawasaki 92071-2013

GROMMET

$

$

Not available

92071B

Kawasaki 92071-2082

GROMMET

$

$

Not available

92072

Kawasaki 92072-2001

BAND
(Superseded to 92072-2003)

$3.99

$

Usually ships in 2-5 days

0

112

Kawasaki 112B0614

BOLT-UPSET
(Superseded to 112AA0614)

$0.99

$

Usually ships in 2-5 days

0

180

Kawasaki 180B0625

BOLT-UPSET-WS
(Superseded to 180AA0625)

$

$

Not available

180A

Kawasaki 180B0635

BOLT-UPSET-WS
(Superseded to 180AA0635)

$2.49

$

In Stock, Qty 20+

0

187

Kawasaki 187B0612

BOLT-UPSET-WSP
(Superseded to 187AA0612)

$

$

Not available

232

Kawasaki 232B0410

SCREW-PAN-WS+-
(Superseded to 232AA0410)

$

$

Not available

232A

Kawasaki 232B0414

SCREW-PAN-WS+-
(Superseded to 232AA0410)

$

$

Not available

232B

Kawasaki 232B0620

SCREW-PAN-WS+-

$

$

Not available

242

Kawasaki 242B0420

SCREW-PAN-WSP+-

$

$

Not available

461

Kawasaki 461F0600

WASHER-SPRING
(Superseded to 461DA0600)

$0.99

$

In Stock, Qty 6

0

510

Kawasaki 510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 20+

0
