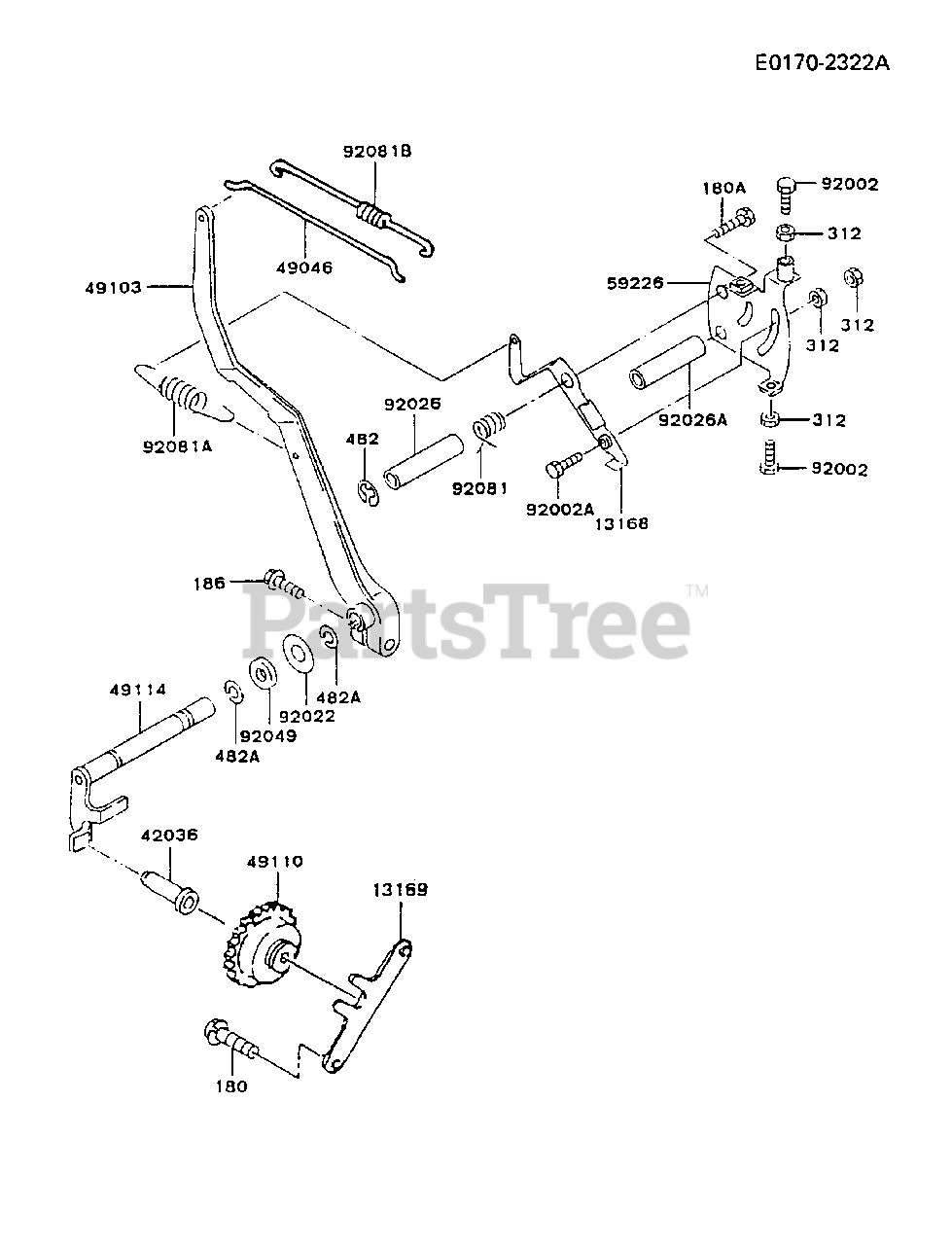

FZ400D-ES00 - Kawasaki Engine CONTROL-EQUIPMENT Parts Diagram

Engine

CONTROL-EQUIPMENT Parts Diagram

  • Title
13168

$

$

Not available

13169

$

$

Not available

42036

$

$

Not available

49046

Kawasaki 49046-2011

ROD-GOVERNOR
(Superseded to 318290-5231-00)

$2.49

$

In Stock, only 4 left!

0

49103

Kawasaki 49103-2011

ARM-GOVERNOR
(Superseded to 317270-5211-01)

$

$

Not available

49110

Kawasaki 49110-2006

GOVERNOR-ASSY
(Superseded to 317270-5110-01)

$

$

Not available

49114

Kawasaki 49114-2004

SHAFT-GOVERNOR

$

$

Not available

59226

Kawasaki 59226-2198

PANEL-CONTROL

$

$

Not available

92002

Kawasaki 92002-2068

BOLT
(Superseded to 112BA0630)

$1.49

$

Usually ships in 2-5 days

0

92002A

Kawasaki 92002-2023

BOLT
(Superseded to 318291-5312-00)

$

$

Not available

92022

$

$

Not available

92026

$

$

Not available

92026A

$

$

Not available

92049

$

$

Not available

92081

$

$

Not available

92081A

$

$

Not available

92081B

$4.49

$

In Stock, only 1 left!

0

180

Kawasaki 180B0614

BOLT-UPSET-WS
(Superseded to 180AA0614)

$5.49

$

Usually ships in 2-5 days

0

180A

Kawasaki 180B0665

BOLT-UPSET-WS

$

$

Not available

186

Kawasaki 186B0625

BOLT-UPSET-WP

$

$

Not available

312

Kawasaki 312B0600

NUT-HEX
(Superseded to 312AA0600)

$0.99

$

In Stock, Qty 20+

0

482

Kawasaki 482L0100

CIRCLIP-TYPE-E

$0.99

$

Usually ships in 2-5 days

0

482A

Kawasaki 482L8000

CIRCLIP-TYPE-E
(Superseded to 482EA8000)

$4.99

$

Usually ships in 2-5 days

0
