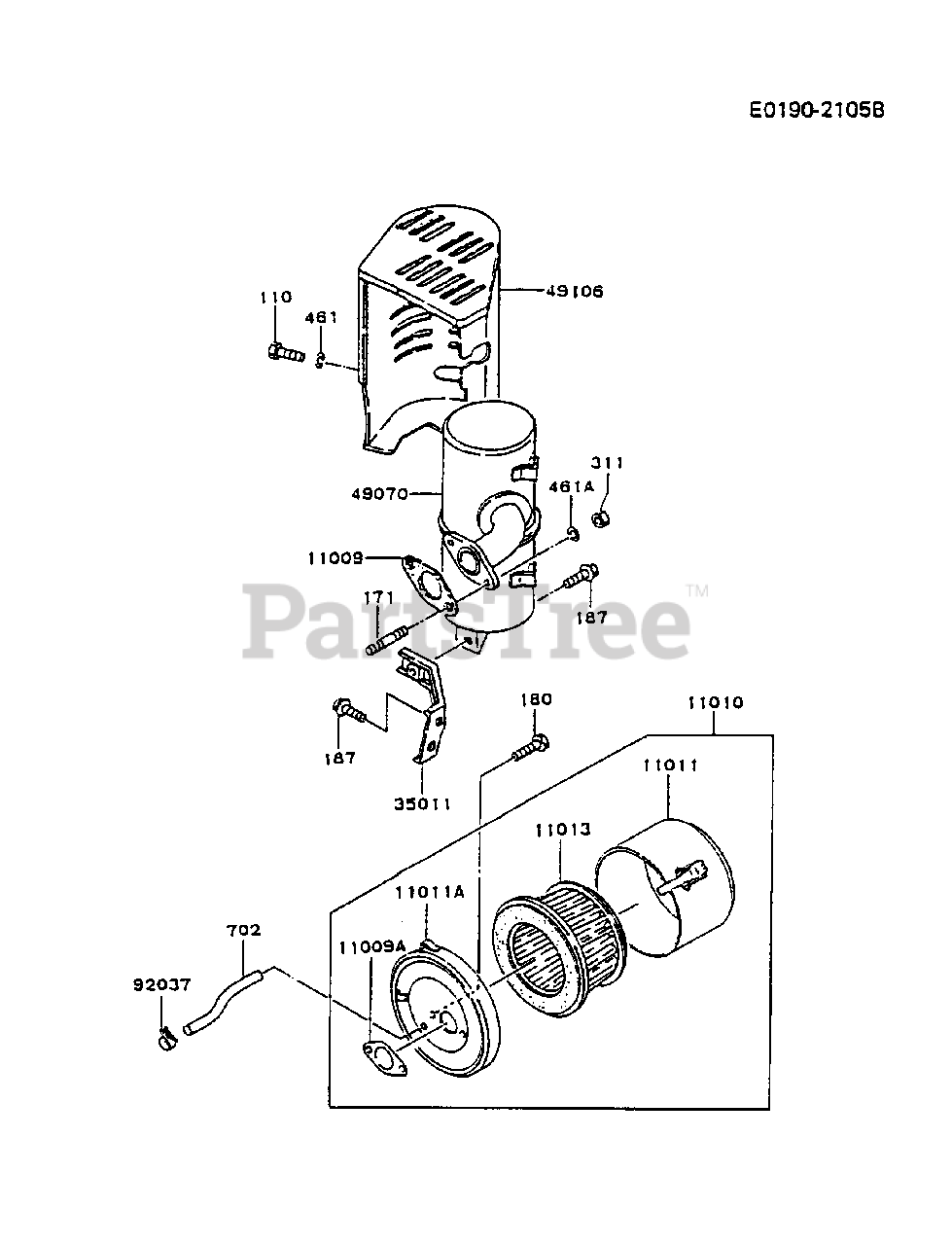

FZ400D-ES00 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

AIR-FILTER/MUFFLER Parts Diagram

  • Title
11009

Kawasaki 11009-2147

GASKET,MUFFLER
(Superseded to 11009-2168)

$

$

Not available

11009A

Kawasaki 11009-2052

GASKET
(Superseded to 317209-1324A)

$1.49

$

In Stock, Qty 5

0

11010

Kawasaki 11010-2187-9H

FILTER-ASSY-AIR
(Superseded to 318250-1310-01)

$

$

Not available

11011

Kawasaki 11011-2249-9H

CASE-AIR FILTER

$

$

Not available

11011A

Kawasaki 11012-2063

CASE-AIR FILTER
(Superseded to 3182YA-1316A)

$

$

Not available

11013

Kawasaki 49064-2029

ELEMENT-AIR FILTER
(Superseded to 318250-1312-00)

$

$

Not available

$

$

Not available

49070

Kawasaki 49070-2059-9Y

MUFFLER-COMP
(Superseded to 317240-1410-00)

$

$

Not available

49106

Kawasaki 49106-2063-9Y

COVER-MUFFLER

$

$

Not available

92037

$1.49

$

In Stock, only 3 left!

0

110

Kawasaki 110R0610

BOLT
(Superseded to 110N0610)

$

$

Not available

171

Kawasaki 171G0820

BOLT-STUD
(Superseded to 171BA0820)

$1.99

$

In Stock, Qty 6

0

180

Kawasaki 180B0614

BOLT-UPSET-WS
(Superseded to 180AA0614)

$5.49

$

Usually ships in 2-5 days

0

187

Kawasaki 187G0814

BOLT-UPSET-WSP

$

$

Not available

311

$

$

Not available

461

Kawasaki 461F0600

WASHER-SPRING
(Superseded to 461DA0600)

$0.99

$

In Stock, Qty 6

0

461A

Kawasaki 461F0800

WASHER-SPRING
(Superseded to 461DA0800)

$0.99

$

In Stock, Qty 20+

0

702

Kawasaki 702A071000

TUBE-RUBBER
(Superseded to 92059-1519)

$14.99

$

Usually ships in 2-5 days

0
